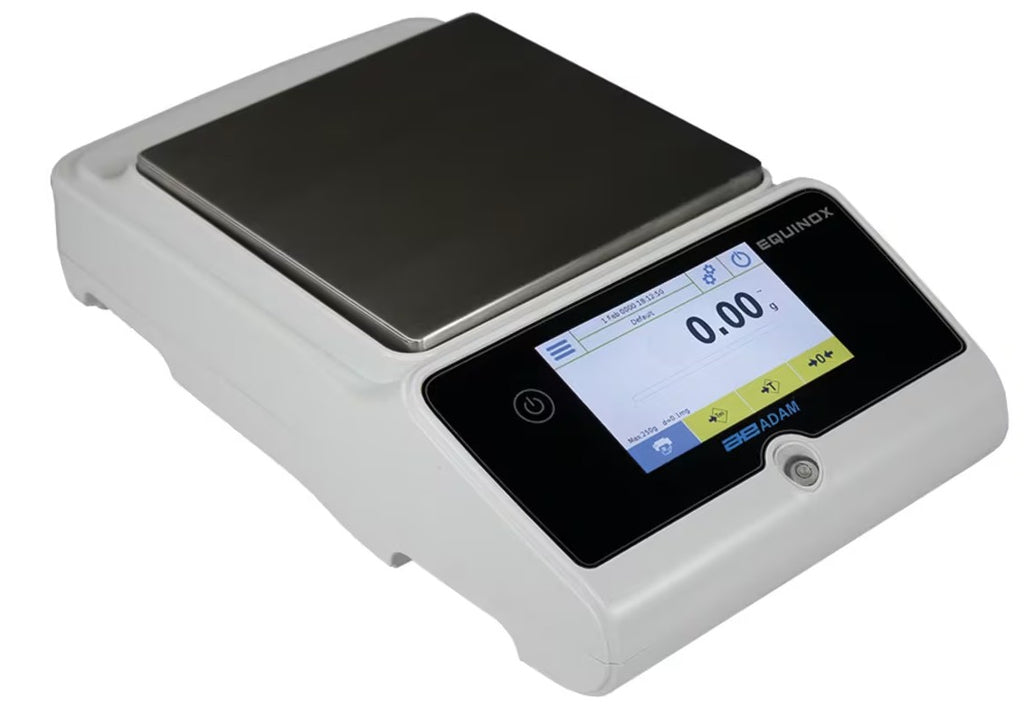

Equinox Precision Balances-ETB 6202e
£2,005.00
Sale price
£2,005.00
Regular price
Skip to product information
Equinox Precision Balances-ETB 6202e
£2,005.00
Sale price
£2,005.00
Regular price
Equinox Precision Balances-ETB 6202e
- Capacity
- 6200g
- Readability
- 0.01g
- Pan Size
- 185x185mm
Featuring a high-resolution colour touch screen, Equinox precision balances provide intuitive operation and readily accessible functions. Equinox delivers exceptionally precise results for labs, science education and production facilities.
Equinox precision balances deliver remarkable precision to labs that perform highly detailed testing. The Equinox is ideal for research and quality assurance facilities; science education; precision counting; and production and manufacturing applications needing exceptionally precise results. Twelve precision models offer capacities from 360g to 8200g and readabilities of 1mg and 0.01g. A colour touch screen display provides intuitive operation, with icon-driven menus and readily accessible applications and functions. The five-inch screen is generously sized, offering 800 X 480 pixel resolution for excellent visibility.
Equinox Precision Balance
Precise results for labs and testing facilities
The Equinox precision balance offers a color touchscreen display for intuitive operation, with icon-driven menus and readily accessible applications. Choose from 12 different models that offer capacities from 360g to 8200g and readabilities of 1mg and 0.01g.
Weighing Units
g, mg, lb, oz, ct, GN, dwt, mm, ozt, T, tl.H, tl.S, tl.T, custom unit.
Connectivity
USB host for memory card and USB I/O interface.

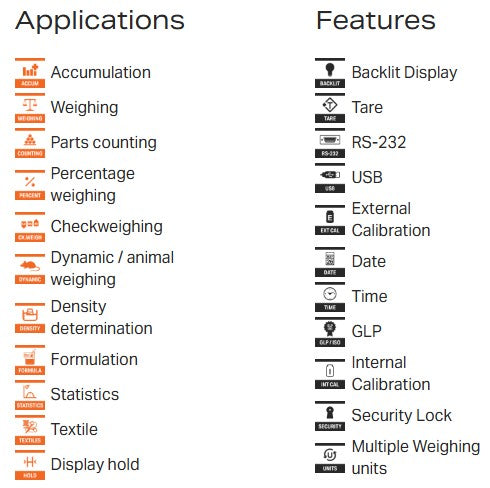

Key Features
Large, responsive 5-inch, 800x480 pixel touchscreen display
- Built-in memory for storing products and settings
- Memory accumulation totals results
- Multilingual display permits use in various regions
- Checkweighing with audible alarm
- Selectable digital filtering helps minimise effects of vibration and disturbances
Touchscreen Display
Equinox features a five-inch touchscreen with 800 X 480 pixel resolution for excellent visibility.
Icon-Driven Menus
Easily navigate through menus to perform easily accessible applications and functions.
Stainless Steel Pan
Large, grade 304 stainless steel pan allows swift cleaning.
Innovative Design
Equinox performs advanced applications, making it ideal for detailed testing and research.
Large Weighing Chamber
Equinox precision models have a large weighing chamber with sliding glass doors that remove for cleaning.
Data Tracking
Printouts include date and time for data tracking within Good Laboratory Practice (GLP) guidelines.
Adjustable Feet
Adjustable feet ensure proper balance setup for optimum weighing results.
Multiple Connections
USB and RS-232 interfaces are available for speedy connection to computers and printers.
Features and Benefits
- Large, responsive 5’’ 800x480 pixel touch-screen display
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Large, grade 304 stainless steel pan allows easy cleaning
- RS-232 interface provides speedy connection to computers and printers
- USB host for memory card
- AC adapter included
- Built-in memory for storing products and settings
- External calibration allows for verification and adjustment with weights
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Security password control prevents unauthorised access
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Preset tare function speeds the process of repetitive weighing
- Parts counting with freely selectable sample sizes
- Multilingual display allows use in many different countries
- Memory accumulation totals results
- Checkweighing with audible alarm
- Security slot for optional lock and cable to help prevent theft
- Adam Connect compatible for Bluetooth® data transfer to printers and PCs
- A 5-year warranty means quality assured for years of use.
Technical specification
Model
ETB 6202e
Item Number: 1010014233
GTIN/UPC: 840886104764
Metrology
-
Capacity
- 6200g
- 6200g
-
Readability
- 0.01g
- 0.01g
-
Repeatability
- 0.01g
- 0.01g
-
Linearity
- 0.03g
- 0.03g
General Specifications
-
Pan Size
- 185x185mm
- 185x185mm
-
Weighing Units
- ct, custom unit, dwt, g, GN, lb, mm, oz, ozt, T, tl.H, tl.S, tl.T
- ct, custom unit, dwt, g, GN, lb, mm, oz, ozt, T, tl.H, tl.S, tl.T
-
Stabilisation Time
- 3
- 3
-
Interface
- RS-232/USB
- RS-232/USB
-
Calibration
- External calibration
- External calibration
-
Display
- Touchscreen with 13mm high digits
- Touchscreen with 13mm high digits
Power
-
Power Supply
- 24VDC 1A Adapter
- 24VDC 1A Adapter
Operating Conditions
-
Operating Temperature
- 10° to 30°C
- 10° to 30°C
Product Information
-
Construction
- ABS plastic
- ABS plastic
-
Net Weight
- 4.5kg
- 4.5kg
Dimensions
-
Overall Dimensions
- 224x374x95mm
