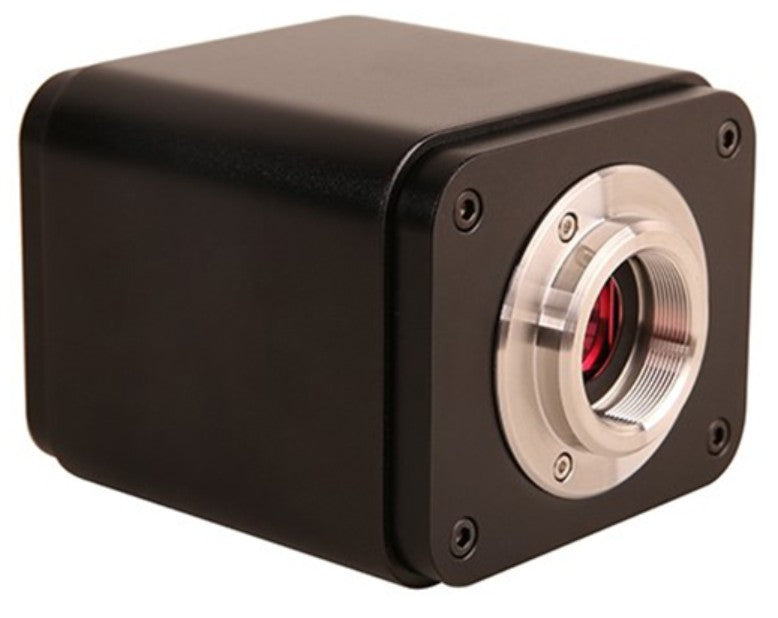

4K 8mp Autofocus Digital Microscope Camera with HDMI / WLAN / USB
4K 8mp Autofocus Microscope Camera
Features a high-performance Sony IMX334 colour CMOS sensor and supports HDMI, Wi-Fi and USB connectivity. The camera can be connected directly to an HDMI monitor or connected to a computer using Wi-Fi or USB.
Images and videos can be saved to an SD card or USB flash drive for immediate examination and further analysis.
Its embedded ARM processor combines camera control and image-processing functions within the camera. When connected to an HDMI monitor, the built-in XCamView interface can be operated using a USB mouse.
The integrated autofocus system allows automatic focusing on a selected area of the specimen. Manual focusing is also available through movement of the camera sensor.
When fitted with a compatible Wi-Fi module or connected to a computer by USB, the camera can be controlled using ImageView software. It is suitable for microscope imaging, industrial inspection and other detailed observation applications.
Key Features
- Sony IMX334 colour Exmor/STARVIS back-illuminated CMOS sensor
- 4K C-mount camera with HDMI, Wi-Fi and USB video output
- Automatic switching between 4K and 1080p according to the connected monitor’s resolution
- Automatic and manual focusing through sensor movement
- Built-in XCamView software for camera control and image processing
- Save images and videos to an SD card or USB flash drive
- Local image and video preview and playback
- Image signal processing with local tone mapping and 3D noise reduction
- ImageView software for Windows computers
- Compatible applications for iOS and Android smartphones and tablets
|

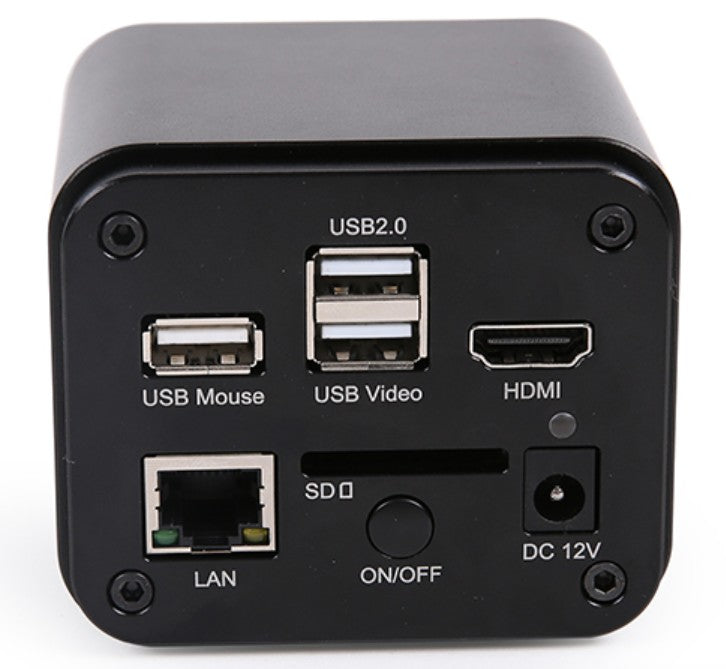

Interface or Button |
Function Description |
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamView software |
|
USB2.0 |
Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time |
|
USB Video |
Connect PC or other host device to realize video image transmission |
|
HDMI |
Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
ON/OFF |
Power switch |
|
SD |
Comply with SDIO3.0 standard and the SD card could be inserted for video and images saving |
|
LED |
LED status indicator |
|
DC12V |
Power adapter connection (12V/1A) |
|
Video Output Interface |
Function Description |
|
HDMI Interface |
Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P |
|
WLAN Interface |
Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode |
|
USB Video Interface |
Connecting USB Video port of PC for video transfer in MJPEG format |
|
Other Function |
Function Description |
|
Video Saving |
Video format: 8MP (3840*2160) H264/H265 encoded MP4 file Video saving frame rate: 30fps in SD card or USB flash drive |
|
Image Capture |
8MP (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
|
Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|
ISP |
Exposure (Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
|
Video /Image |
Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Color/Gray, Freeze, Cross Line, Overlay , Auto Focus, Compare (Comparison between real time video and images in SD card/ USB flash drive), Embedded Files Browser, Video Playback, Measurement Function |
|
Embedded RTC(Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian |
|
Software Environment under WLAN/USB Video Output |
|
|
White Balance |
Automatic/Manual/ROI |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Display: 19” or Larger |
|
|
CD-ROM |
|
Not sure which C-mount adapter suits your camera?
Use our free C-Mount & Camera Sensor Compatibility Checker to compare common camera sensor formats and C-mount adapter magnifications.
