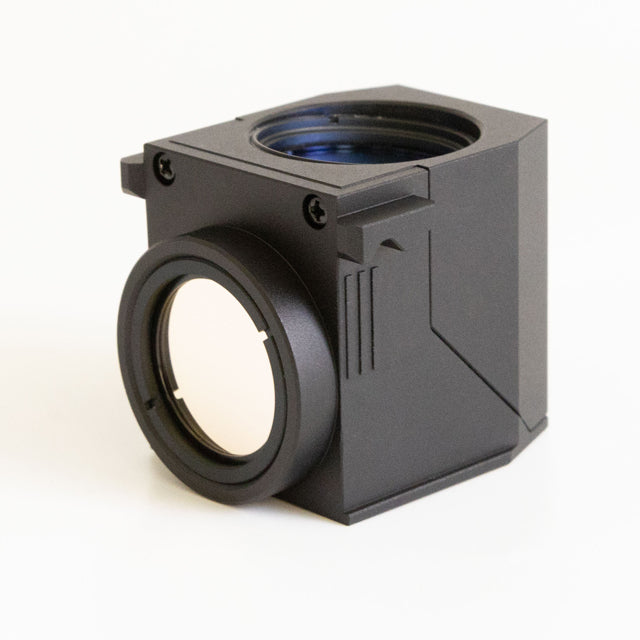

Olympus Plastic Fluorescence Filter Cubes with Various Filter Sets

Olympus U-FF (Plastic) Filter Cube

Compatible with Olympus:

BX3 Series - BX53, BX63
IX3 Series - IX53, IX73, & IX83

Fluorescence Microscope Filter Cubes

Precision Fluorescence Filter Cubes for Research & Diagnostic Microscopy

Auckland Scientific offers a comprehensive range of high-quality fluorescence filter cubes designed for fluorescence microscopy applications. Manufactured to provide excellent optical performance, these filter cubes deliver precise excitation, emission and dichroic filtering for reliable fluorescence imaging across a wide range of fluorophores.

Suitable for research laboratories, universities, clinical laboratories, pathology, life sciences and industrial microscopy applications.

Key Features

High quality optical filters
Excellent transmission characteristics
Precision excitation and emission wavelength selection
High-performance dichroic mirrors
Compatible with fluorescence microscope systems
Designed for research and routine laboratory use
Reliable and repeatable fluorescence imaging

Available Filter Cube Configurations

Standard Fluorophore Filter Cubes

Filter Cube	Excitation	Emission	Dichroic
DAPI	365/50	445/50	405
FITC	475/40	530/50	500
TRITC	545/20	605/60	560
Texas Red	560/30	630/70	585
Cy5	630/40	695/40	660
DAPI-2	375/28	460/50	415
FITC-2	480/30	535/40	505
TRITC-2	545/30	605/40	575

FISH Filter Cubes

Filter Cube	Excitation	Emission	Dichroic
FISHAqua	440/20	480/30	460
FISHGreen	490/20	530/25	505
FISHOrange	540/20	590/25	560
FISHRed	580/20	630/25	605

Multi-Band Filter Cubes

Dual-Band Green / Orange

Excitation: 480 / 560
Emission: 525 / 605
Dichroic: 500 / 580

Dual-Band FITC / Texas Red

Excitation: 480 / 575
Emission: 525 / 635
Dichroic: 500 / 600

Triple-Band DAPI / FITC / Texas Red

Excitation: 405 / 495 / 573
Emission: 460 / 533 / 630
Dichroic: 410 / 510 / 590

Triple-Band DAPI / Green / Orange

Excitation: 395 / 480 / 560
Emission: 440 / 521 / 606
Dichroic: 410 / 500 / 580

Optical Component Sizes

All filter cube components are manufactured to the following dimensions:

Component	Size
Excitation Filter	Ø25 × 5 mm
Emission Filter	Ø25 × 3.5 mm
Dichroic Mirror	25.7 × 36 × 1.05 mm

Applications

These fluorescence filter cubes are suitable for:

Fluorescence Microscopy
Cell Biology
Molecular Biology
Life Sciences
Clinical Diagnostics
Pathology
Immunofluorescence
FISH Analysis
Cancer Research
University Research Laboratories
Pharmaceutical Research
Biotechnology

Why Buy from Auckland Scientific?

Expert fluorescence microscopy advice
UK technical support
Competitive pricing
High-quality optical components
Assistance selecting the correct fluorophore filter cube
After-sales support

Need Help Choosing the Correct Filter Cube?

Selecting the correct fluorescence filter cube is essential for achieving the best imaging performance. Our specialists can help you choose the most suitable filter set for your fluorophore, microscope and application.

Contact Auckland Scientific today for expert advice or to request a quotation.
