PS100 Long Scale 100mm/0.1mm

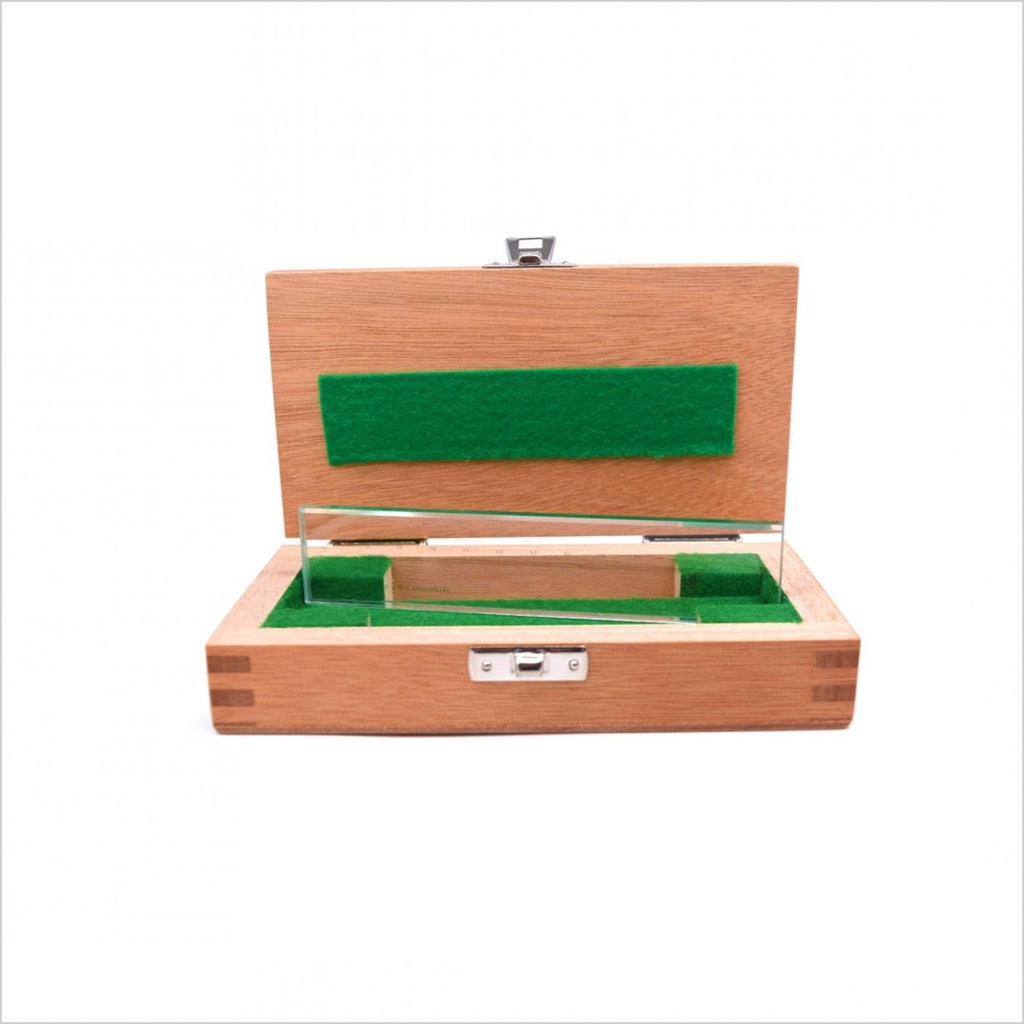

Long Glass Scale with 100mm scale subdivided into 1000 divisions of 0.1mm (100µm)

Features Unique engraved serial number Stainless steel slide mount Supplied in polished wooden box Various scale lengths from 0.1mm to 20mm Negative & Positive images for transmitted or reflective light, High quality image Available with Internationally traceable certificates of calibration

Technical

Ideal for Profile Projectors using lower magnifications. For higher magnification, CMM's and Vision Systems the High Definition products, such as PS100HS MKII or PS100XO, will be more suitable.

Glass Type and Thickness
Green Float 6mm thick

Dimensions
140mm x 30mm

Line Thickness
0.03mm

Overall Accuracy
Within 0.015mm

Stage Micrometers & Calibration Certificates

All Graticules Optics calibration products are produced to exacting standards with high-resolution imaging to ensure well defined line edges, uniformity of line thickness and excellent pattern integrity. These products are guaranteed to satisfy the requirements for traceable calibrations.

Calibration Standards

Where customers have the need for traceability of their calibration, we can offer certificates of calibration, traceable to International standards, and re-calibrations of customers’ own products.

Calibration certificates from UKAS and NPL offered, will satisfy the requirements of NIST, DIN, DKD, Cofrac, Accredia, NABL and all other National Metrology Institutes across the world, and provide compliance for ISO/IEC17025 and ANSI/NCSL Z540-1.

The ASTM B487 standard demands a calibration uncertainty of 0.2um for Stage Micrometers; we are pleased to offer calibration certificates from NPL that will satisfy this requirement.

We strongly recommend that you use our PS range when traceable calibrations are required, as these have a unique engraved serial number.

Here are the three types of Calibration Certificate we can offer:

Calibration by NPL The National Physical Laboratory carries out measurements at selected points on the scales and grids and issues a certificate of calibration.

Calibration by UKAS Accredited Laboratory A UKAS accredited laboratory carries out measurements at selected points on the scales and grids and issues a calibration certificate.

Measurement by Graticules Optics For applications that do not require a traceable certificate or the accuracy provided by calibrations carried out by NPL or a UKAS accredited laboratory,

Graticules Optics can provide a Graticules Certificate of Comparison. The scale or grid is compared with NPL calibrated in-house standards and a statement is provided on the accuracy of the item with respect to these standards
