PS78 Stage Micrometer 1mm/0.01mm, Reflected Light

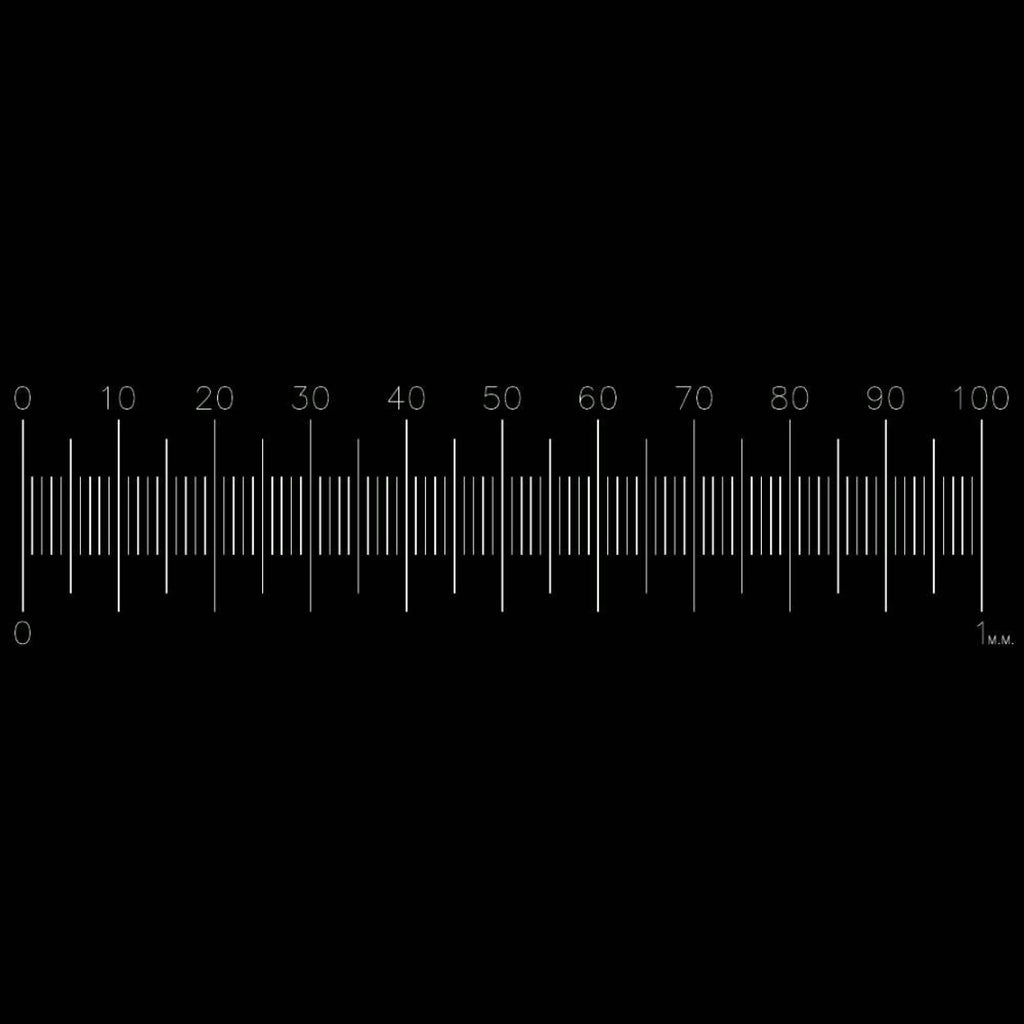

Stage Micrometer with 1mm scale subdivided into 100 divisions of 0.01mm (10µm).
For Reflected Light.

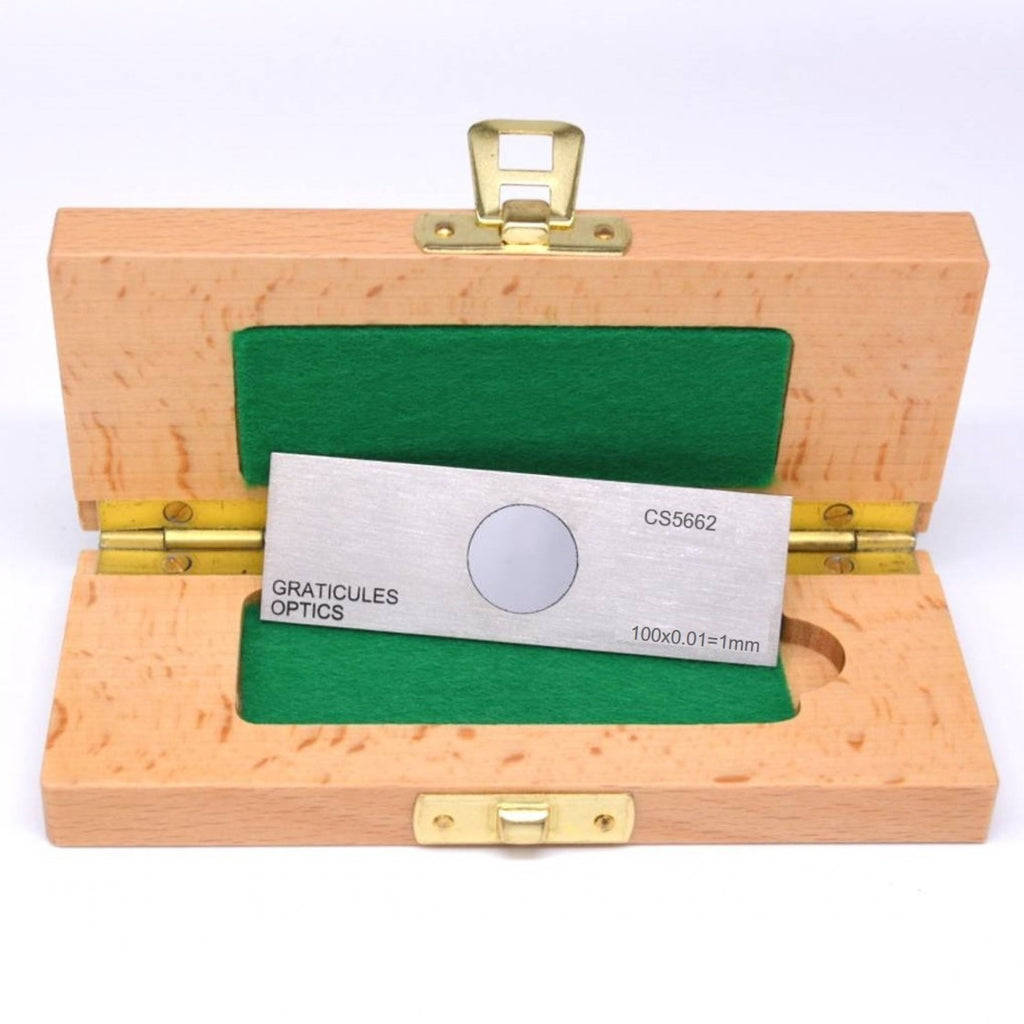

Features Unique engraved serial number Stainless steel slide mount Supplied in polished wooden box Various scale lengths from 0.1mm to 20mm Negative & Positive images for transmitted or reflective light, High quality image Available with Internationally traceable certificates of calibration

Technical

Line Thickness
0.002mm +/-0.001mm

Glass Type and Thickness
B270 1mm thick

Scale Length Tolerance
+/-0.001mm

Mount
Stainless Steel Slide with engraved Serial Number

Divisional Marker Lengths
0.175mm, 0.125mm, 0.075mm

Orientation
Correct on top surface

Stage Micrometers & Calibration Certificates

All Graticules Optics calibration products are produced to exacting standards with high-resolution imaging to ensure well defined line edges, uniformity of line thickness and excellent pattern integrity. These products are guaranteed to satisfy the requirements for traceable calibrations.

Calibration Standards

Where customers have the need for traceability of their calibration, we can offer certificates of calibration, traceable to International standards, and re-calibrations of customers’ own products.

Calibration certificates from UKAS and NPL offered, will satisfy the requirements of NIST, DIN, DKD, Cofrac, Accredia, NABL and all other National Metrology Institutes across the world, and provide compliance for ISO/IEC17025 and ANSI/NCSL Z540-1.

The ASTM B487 standard demands a calibration uncertainty of 0.2um for Stage Micrometers; we are pleased to offer calibration certificates from NPL that will satisfy this requirement.

We strongly recommend that you use our PS range when traceable calibrations are required, as these have a unique engraved serial number.

Here are the three types of Calibration Certificate we can offer:

Calibration by NPL The National Physical Laboratory carries out measurements at selected points on the scales and grids and issues a certificate of calibration.

Calibration by UKAS Accredited Laboratory A UKAS accredited laboratory carries out measurements at selected points on the scales and grids and issues a calibration certificate.

Measurement by Graticules Optics For applications that do not require a traceable certificate or the accuracy provided by calibrations carried out by NPL or a UKAS accredited laboratory,

Graticules Optics can provide a Graticules Certificate of Comparison. The scale or grid is compared with NPL calibrated in-house standards and a statement is provided on the accuracy of the item with respect to these standards
