Three-Axis Industrial Measuring Microscope with Stage size Options

Moving Range of Stage: 200 * 100mm

£39,995.00

Three-Axis Industrial Measuring Microscope with Stage size Options

£39,995.00

Measuring Microscope Stage Travel Options Moving Range of Stage: 200 * 100mm Moving Range of Stage: 300 * 200mm Moving Range of Stage: 300 * 300mm Moving Range of Stage: 400 * 300mm

Precision Industrial Measurement

Auckland Scientific AUC-300 Series

Three-Axis Industrial Measuring Microscopes

Precision measuring microscopes combining high-magnification metallurgical observation, three-axis measurement, electric Z-axis focusing and specialist dimensional-analysis software.

Three-Year Warranty

Supplied with an Auckland Scientific three-year warranty. Conditions apply, including annual preventative servicing by Auckland Scientific.

Optical Inspection & Precision Measurement

The AUC-300 Series combines the magnification and contrast techniques of a metallurgical microscope with the three-axis measurement capabilities of an industrial measuring system.

High-precision grating scales measure movement across the X, Y and Z axes. The XY stage is moved manually using rapid and fine-positioning controls, while the Z axis uses electric focusing for controlled vertical movement and accurate focus positioning.

Four stage sizes are available, allowing the system to be matched to the dimensions, weight and measuring range of your samples.

Choose Your Measuring Range

Model	XY movement range	Stated XY accuracy	Maximum load	Stage size
AUC-310	200 × 100mm	(2 + L/100)µm	10kg	258 × 358mm
AUC-320	300 × 200mm	(3 + L/100)µm	15kg	350 × 500mm
AUC-330	300 × 300mm	(3 + L/100)µm	20kg	500 × 500mm
AUC-340	400 × 300mm	(3 + L/100)µm	20kg	458 × 620mm

L represents the measured length in millimetres. Final measuring performance depends on correct installation, environmental conditions, calibration and operating practice.

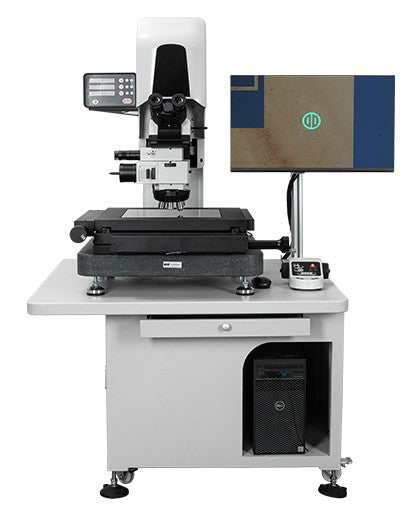

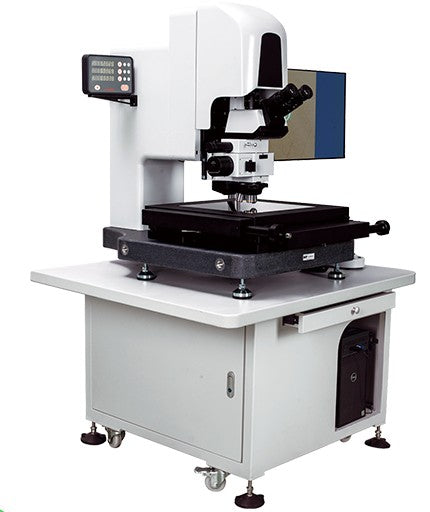

Is the cabinet included?

No. The integrated work desk is an optional accessory and is not included in the standard configuration. It provides a dedicated space for the computer tower, a foldable keyboard drawer and an ergonomic workstation for the microscope and measuring equipment. Contact AUckland Scientific is this is a requirment.

Features & Benefits

Three-axis measurement
High-precision grating scales support measurement across the X, Y and Z axes with a 0.1µm display resolution.

Four measuring ranges
Choose from XY movement ranges extending from 200 × 100mm to 400 × 300mm.

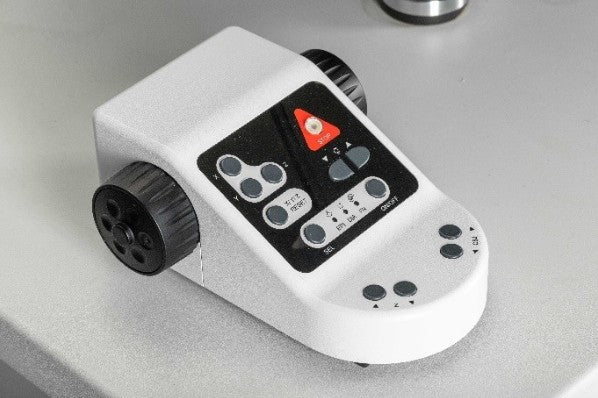

Electric Z-axis focusing
Electric vertical movement supports controlled focusing and measurement without repeatedly turning a manual focusing control.

150mm Z-axis travel
The substantial vertical movement range accommodates samples of different heights and dimensions.

Motorised objective selection
The sextuple nosepiece allows electronic switching between objectives and includes a slot for optional DIC components.

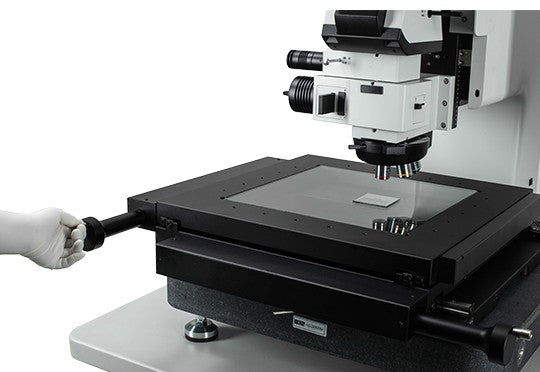

Rapid and fine XY positioning
Each stage includes a quick-movement mechanism and fine-adjustment control for efficient sample navigation.

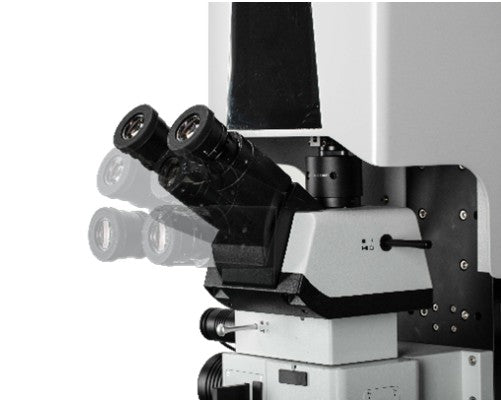

Ergonomic tilting head
The 5–35° adjustable trinocular head accommodates different operator heights and working positions.

Erect-image observation
The direction of sample movement corresponds with the image seen through the eyepieces for more intuitive operation.

Independent focus assist
A split-image focusing system with adjustable green LED illumination assists with precise focus positioning.

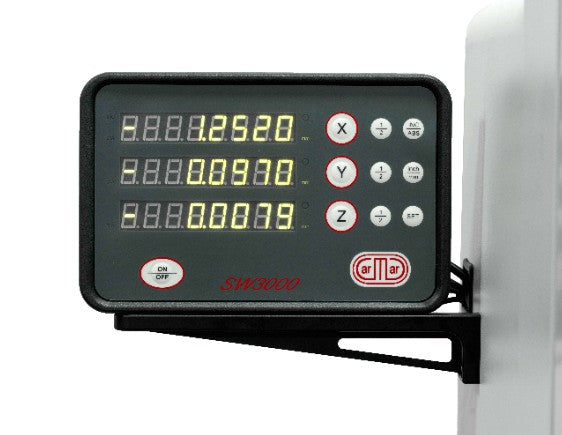

Real-time measurement display
The separate counter provides axis readings, zeroing, linear compensation and measurement-unit selection.

Digital imaging included
The standard system includes a microscope camera, C-mount adapter and measuring software.

Stable marble base
The substantial measuring body provides a stable platform for industrial observation and dimensional measurement.

Auckland Scientific can also supply an anti vibration table, contact us for further information

Metallurgical Optical System

The standard configuration includes four infinity-corrected long-working-distance Plan Achromatic metallurgical objectives. With the supplied 10× eyepieces, they provide an optical magnification range of 50× to 500×.

Objective	Numerical aperture	Working distance	Supply status
5×	0.15	10.8mm	Standard
10×	0.30	12.2mm	Standard
20×	0.40	8.8mm	Standard
50×	0.55	7.9mm	Standard
100×	0.80	2.1mm	Optional

Observation Techniques

Reflected Brightfield — Standard
Suitable for routine observation and measurement of opaque industrial samples.

Reflected Darkfield — Configurable
Available when the system is equipped with the optional brightfield/darkfield nosepiece and objectives.

Polarised Light — Optional
A polarising configuration can be added for suitable metallurgical, mineral, LCD and semiconductor samples.

Differential Interference Contrast — Optional
An optional DIC kit can enhance small height differences and fine surface structures.

Measurement Software

The standard measurement software supports dimensional analysis of simple and complex sample features. Measurement positions can be selected freely, unwanted results can be removed and reports can be generated without manually transferring data.

Available functions include:

Point, line, distance and angle measurement
Circle, diameter and radius measurement
Feature-position measurement
Measurement of complex shapes
Live image capture
Result storage and management
Customised measurement layouts
One-button test-report generation

Typical Applications

Semiconductor inspection IC package bumps PCB features PCB solder legs LCD and TFT measurement Optical components Electronic components Precision moulds Automotive components Optical communications

Common Technical Specification

Available models	AUC-310, AUC-320, AUC-330 and AUC-340
Optical system	Infinity-corrected optical system
Viewing head	Erect-image trinocular head, adjustable from 5–35°
Interpupillary distance	50–76mm
Eyesight adjustment	Unilateral adjustment, ±5 dioptres
Light-path split	Eyepieces/trinocular port: 100:0 or 0:100
Eyepieces	High-eyepoint widefield Plan 10×/22mm
Standard objectives	5×, 10×, 20× and 50× infinity LWD Plan Achromatic metallurgical objectives
Standard magnification	50×–500×
Nosepiece	Motorised sextuple nosepiece with DIC slot
XY movement	Manual stage movement with rapid and fine-positioning controls
Z-axis focusing	Electric focusing with automatic and manual control
Z-axis travel	150mm
Z repeatability	±2µm
Reflected illumination	Adjustable 5W LED reflected illuminator with filter and polariser slots
Focus assist	Double-reticle split-image system with adjustable 5W green LED
Camera	1/1.8-inch sensor, 1600 × 1200 pixels, approximately 1.9MP, 20fps
Camera adapter	0.65× C-mount adapter included
Measurement system	Three-axis grating-scale measurement with 0.1µm counter resolution

Software	Professional dimensional-measurement software included

Standard Equipment

Stable marble microscope base
5–35° adjustable erect-image trinocular viewing head
Pair of high-eyepoint 10×/22mm Plan eyepieces
5×, 10×, 20× and 50× infinity LWD Plan Achromatic objectives
Motorised sextuple nosepiece with DIC slot
Manual XY measuring stage appropriate to the selected model
Rapid and fine XY movement controls
High-precision three-axis grating scales
Electric Z-axis focusing system and controller
Real-time measurement counter
Adjustable 5W LED reflected illuminator
Split-image focus-assist system
Microscope camera
0.65× C-mount camera adapter
Professional dimensional-measurement software
Adjustment spanner
UK power connections

Optional Accessories

Integrated work desk with computer space and foldable keyboard drawer
100× Plan Achromatic metallurgical objective
Brightfield/darkfield motorised sextuple nosepiece
Brightfield/darkfield objectives
Semi-Apochromatic 50× and 100× BF/DF objectives
DIC observation kit
Polarising kit
Blue, green and red interference filters
High-precision micrometer
Eyepieces with micrometer
Calibration Slide
Alternative adjustable-dioptre eyepieces
0.5× C-mount camera adapter
Alternative camera configurations
Anti vibration table

All optional accessories are available on a Price on Request basis.

Installation Requirements

These are substantial precision measuring systems. Depending on the selected configuration, the microscope body weighs approximately 155kg or 200kg before the separate measuring stage and optional work desk are added.

Site access, final positioning, working environment and installation requirements should therefore be reviewed before delivery. Auckland Scientific can provide installation, commissioning, calibration checks and operator training.

Why Choose Auckland Scientific?

Auckland Scientific has extensive experience in professional microscopy, industrial inspection and digital imaging applications. We work with customers to understand their samples, required measuring range, accuracy requirements and reporting workflow before recommending a system.

We can help select the correct stage size, optical configuration, contrast techniques and measuring accessories for your application.

Available services include:

Pre-sales application advice
Measuring-range and system selection
Delivery planning and site assessment
Installation and commissioning
Operator and software training
Preventative maintenance
Technical and application support
Calibration

Price on Application

The AUC-300 Series can be supplied on a quotation basis so that the measuring range, optical system, software and optional workstation can be configured for your requirements.

Contact Auckland Scientific for technical advice and a tailored quotation.

Images may show the optional integrated work desk or other optional equipment. The work desk is not included unless specified in the quotation. Measuring performance is dependent on correct installation, calibration, environmental conditions and operating practice. Three-year warranty conditions apply, and annual preventative servicing by Auckland Scientific is required to maintain extended warranty cover.
