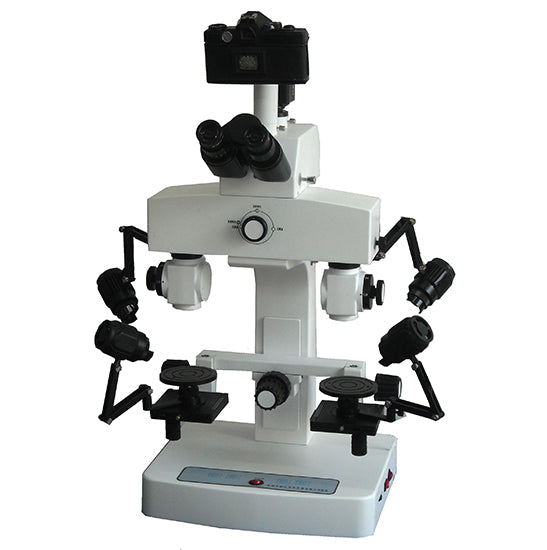

AUC-200-COM Comparison Microscope

A practical trinocular comparison system for examining two specimens through a shared optical platform.

Compare two specimens in one view

Compare left and right fields individually, divide the field, join the views or superimpose them. The optical bridge supports direct side-by-side examination, helping users assess similarities and fine differences across forensic, inspection and research applications.

Five interchangeable objectives provide a total optical magnification range of 9.6× to 115× with the supplied 10× eyepieces and comparison bridge.

Key features

Left-field, right-field, split, joined and overlapping comparison modes
Interchangeable 0.8×, 1.25×, 2×, 3.2× and 4.8× objectives
Seidentopf trinocular head, inclined at 45°, with 55–75 mm interpupillary adjustment
WF10×/22 and WF20×/12 eyepieces with dioptre adjustment
Adjustable high-power LED illumination and polarising attachment
Two manually operated stages with 54 mm X/Y/Z movement; coarse vertical travel to 60 mm
C-mount video attachment and DSLR photo attachment for image capture

Technical specifications

Total optical magnification	9.6×–115×
Objectives	0.8×, 1.25×, 2×, 3.2×, 4.8×, changeable
Eyepieces	WF10×/22 and WF20×/12, dioptre adjustable
Comparison modes	Single left/right, split, joined and overlapping fields
Stage movement	X/Y/Z: 54 mm; dual-stage horizontal travel: 54 mm; coarse vertical travel: 60 mm
Viewing head	Trinocular, 45° inclination; 55–75 mm interpupillary distance

Standard outfit and options

Standard: comparison microscope, supplied eyepieces and objectives, adjustable LED illumination, polarising attachment, bullet holder, red/green/blue filters, DSLR photo attachment and C-mount camera attachment.

Optional: 0.4× or 2× auxiliary objectives and coaxial illumination. Contact us to confirm the configuration required for your samples.

Auckland Scientific support

Includes an Auckland Scientific 3-year warranty (conditions apply). We can help you select a suitable configuration for your inspection and comparison work.
