AUC-201-D Series Digital Biological LED Microscopes

Monocular 1.3MP or binocular 5MP digital microscope with USB imaging and analysis software

The AUC-201-D Series combines a biological microscope, integrated USB camera and professional imaging software in one compact, user-friendly system. Designed for education, training, routine laboratory work and hobby microscopy, it allows users to preview specimens on a connected computer, capture photographs and video, and perform measurements within the supplied software.

Two camera configurations: the monocular AUC-201M-D includes a 1.3MP camera, while the binocular AUC-201B-D includes an upgraded 5MP camera.

Click to view PDF

Choose your viewing head and camera

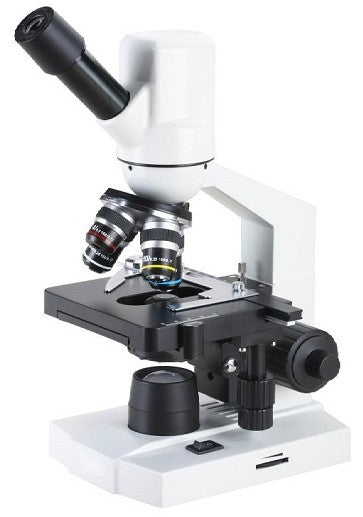

AUC-201M-D

Monocular digital microscope

45° inclined monocular head
Rotatable through 360°
Integrated 1.3MP USB camera
1280 × 1024 camera resolution
Ideal for individual observation and teaching

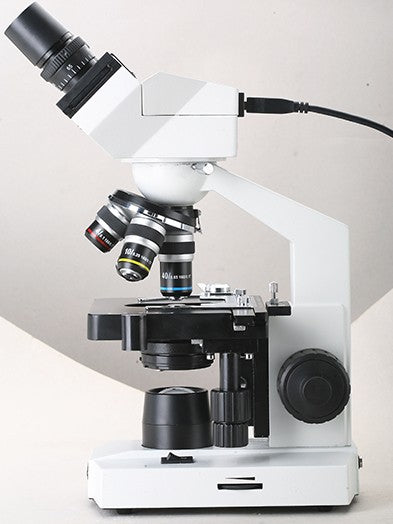

AUC-201B-D

Binocular digital microscope

45° inclined binocular head
Rotatable through 360°
55-75mm interpupillary adjustment
Upgraded integrated 5MP USB camera

Digital imaging

The camera specification depends on the selected model: 1.3MP for AUC-201M-D or 5MP for AUC-201B-D. Both connect to a compatible computer by USB 2.0 and use the supplied imaging software.

Model-specific camera resolution to suit teaching requirements and budget.
USB 2.0 connection to a compatible Windows computer.
Live image preview for teaching, demonstrations and collaborative observation.
Still-image and video capture through the supplied software.
Measurement and image-analysis functions for documented observations.
Multi-language software interface for flexible use in education and laboratories.

Computer required: a computer is not included. The supplied software is specified for compatible Windows systems up to Windows 10. Please contact Auckland Scientific to confirm compatibility with your computer before ordering.

Optical performance

Both models are supplied with wide-field WF10×/18mm eyepieces and four achromatic objectives, providing the standard magnifications required for routine biological observation.

Objective	Total magnification with 10× eyepiece	Type
4×	40×	Achromatic
10×	100×	Achromatic
40×	400×	Spring-loaded achromatic
100× oil	1000×	Spring-loaded achromatic oil-immersion

Shared technical specification

AUC-201M-D camera	Integrated 1.3MP digital camera, 1280 × 1024 resolution
AUC-201B-D camera	Upgraded integrated 5MP digital camera
Camera output	USB 2.0
Eyepieces	WF10×/18mm wide-field eyepiece(s)
Objectives	4×, 10×, 40× spring-loaded and 100× spring-loaded oil-immersion achromatic objectives
Stage	Double-layer mechanical stage, 110 × 120mm; X-Y movement 70 × 20mm
Condenser	Abbe NA 1.25 condenser with iris diaphragm
Focusing	Coaxial coarse and fine focus; 10mm movement range
Illumination	Adjustable 1W LED transmitted illumination
Accessories	Operating instructions, dust cover, AC adapter and USB cable
Packed size and weight	28 × 22 × 40cm; approximately 5kg

Applications

Suitable for schools, colleges, computer-interactive teaching laboratories, routine clinical and laboratory demonstrations, image analysis, remote sharing and individual hobby use.

Three-year Auckland Scientific microscope warranty

Both models are supplied with a three-year Auckland Scientific microscope warranty, subject to the microscope receiving an annual service. Full warranty terms are available on request.

Select your model and order online

Choose AUC-201M-D or AUC-201B-D from the product options above. Prices are displayed separately for each variant. Delivery, installation and training are not included in the product price and will be quoted separately where required.
