AUC-202-D Series Digital Biological LED Microscopes

Monocular or binocular microscope with integrated 5MP USB camera and professional imaging software

The AUC-202-D Series combines routine biological microscopy with an integrated 5MP USB camera and professional imaging software. Designed for education, clinical demonstrations, academic laboratories and scientific study, both models allow users to preview specimens on a connected computer, capture photographs and video, and perform measurements.

Upgraded Auckland Scientific configuration: both the monocular and binocular models are supplied with integrated 5MP USB cameras.

Click to view PDF

Choose your viewing head

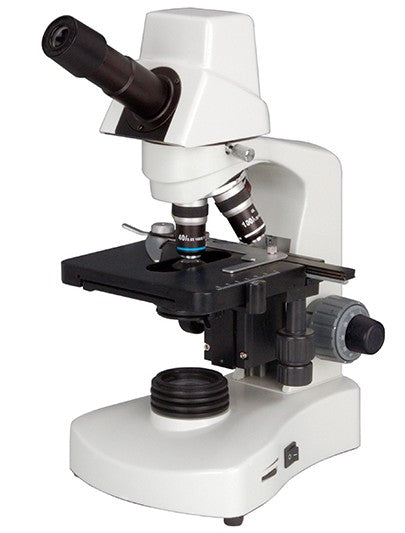

AUC-202M-D

Monocular digital microscope

30° inclined monocular head
Rotatable through 360°
Integrated 5MP USB camera
Ideal for individual observation and teaching

AUC-202B-D

Binocular digital microscope

30° inclined Seidentopf binocular head
Rotatable through 360°
48-75mm interpupillary adjustment
Integrated 5MP USB camera

5MP digital imaging

Integrated 5MP camera on both models for detailed live viewing and image capture.
USB 2.0 connection to a compatible Windows computer.
Live image preview for teaching, demonstrations and collaborative observation.
Still-image and video capture through the supplied software.
Measurement and image-analysis tools for documented observations.
Multi-language software interface for flexible laboratory and educational use.

Computer required: a computer is not included. The source software specification lists compatible Windows systems up to Windows 10. Please ask Auckland Scientific to confirm compatibility with your intended computer before ordering.

Optical configuration

Both variants are supplied with WF10×/18mm wide-field eyepieces and four achromatic objectives for routine biological observation from 40× to 1000× total magnification.

Objective	Total magnification	Type
4×	40×	Achromatic
10×	100×	Achromatic
40×	400×	Achromatic
100× oil	1000×	Achromatic oil immersion

Mechanical performance

Backward-facing quadruple nosepiece for convenient objective selection.
Double-layer mechanical stage, 132 × 142mm, with 75 × 40mm X-Y movement.
Abbe NA 1.20 condenser with iris diaphragm and filter.
Coaxial coarse and fine focusing with 0.004mm fine division.
24mm focusing movement range for precise specimen control.
Adjustable 1W S-LED illumination for efficient, long-life transmitted lighting.

Shared technical specification

Camera	Integrated 5MP digital camera on both variants
Camera output	USB 2.0
Eyepieces	WF10×/18mm wide-field eyepiece(s)
Nosepiece	Backward-facing quadruple nosepiece
Objectives	4×, 10×, 40× and 100× oil-immersion achromatic objectives
Stage	Double-layer mechanical stage, 132 × 142mm; X-Y travel 75 × 40mm
Condenser	Abbe NA 1.20 with iris diaphragm and filter
Focusing	Coaxial coarse and fine; 0.004mm fine division; 24mm movement
Illumination	Adjustable 1W S-LED transmitted illumination
Packed size and weight	39.5 × 26.5 × 50cm; approximately 8kg

Optional accessories

WF16×/11mm and WF25×/8mm eyepieces
20× and 60× achromatic objectives
Phase-contrast kit
Darkfield attachment
Polarisation attachment
Rechargeable battery
6V/20W adjustable halogen illumination

Applications

Suitable for biological education, medical and clinical demonstrations, agricultural study, academic laboratories, scientific research, computer-interactive microscopy and documented image analysis.

Three-year Auckland Scientific microscope warranty

Both models are supplied with a three-year Auckland Scientific microscope warranty, subject to the microscope receiving an annual service. Full warranty terms are available on request.

Select your model and order online

Choose AUC-202M-D or AUC-202B-D from the product options above. Prices are displayed separately for each variant. Delivery, installation and training are not included in the product price and will be quoted separately where required.
