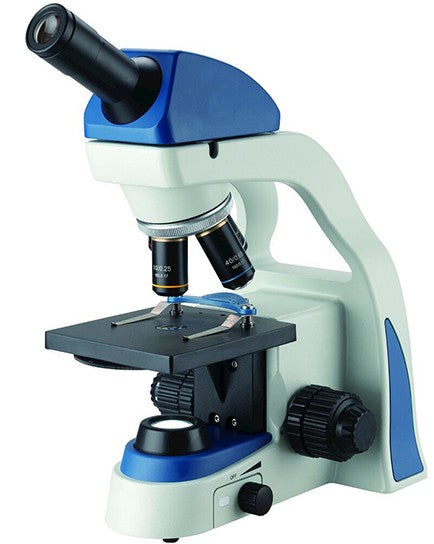

AUC-226 Rechargeable Upright Biological LED Microscope TEACHING GRADE
Monocular / Achromatic
£380.00
Sale price
£380.00
Regular price
Skip to product information
AUC-226 Rechargeable Upright Biological LED Microscope TEACHING GRADE
£380.00
Sale price
£380.00
Regular price
AUC-226 Rechargeable Upright Biological LED Microscope TEACHING GRADE
Click to view PDF
The AUC-226 Series provides clear optical performance, straightforward operation and a compact ergonomic design for routine biological microscopy.
Available with monocular, binocular or trinocular viewing and a choice of finite achromatic or finite plan achromatic objectives, the AUC-226 can be configured for education, laboratory work, clinical observation and general biological applications.
A built-in rechargeable illumination module allows the microscope to be used where a mains power supply is unavailable or unreliable. It can also be powered using the supplied external power system.
Available Models
| Model | Viewing Head | Objectives | Stage and Condenser |
|---|---|---|---|
| AUC-226M | Monocular | Finite achromatic 4×, 10× and 40× | Single-layer stage and NA 0.65 condenser |
| AUC-226B | Seidentopf binocular | Finite achromatic 4×, 10×, 40× and 100× oil | Double-layer mechanical stage and NA 1.25 Abbe condenser |
| AUC-226T | Seidentopf trinocular | Finite achromatic 4×, 10×, 40× and 100× oil | Double-layer mechanical stage and NA 1.25 Abbe condenser |
| AUC-226M-P | Monocular | Finite plan achromatic 4×, 10× and 40× | Single-layer stage and NA 0.65 condenser |
| AUC-226B-P | Seidentopf binocular | Finite plan achromatic 4×, 10×, 40× and 100× oil | Double-layer mechanical stage and NA 1.25 Abbe condenser |
| AUC-226T-P | Seidentopf trinocular | Finite plan achromatic 4×, 10×, 40× and 100× oil | Double-layer mechanical stage and NA 1.25 Abbe condenser |
Key Features
- Finite optical system
- Choice of monocular, binocular or trinocular viewing head
- Choice of achromatic or plan achromatic objectives
- Widefield PL10×/18 mm eyepiece or eyepieces
- Backward-facing quadruple nosepiece
- Low-position coaxial coarse and fine focusing controls
- Fine-focus precision of 0.002 mm
- Adjustable LED transmitted illumination
- Built-in rechargeable battery compartment
- Charging-status indicator
- Integrated cable-storage facility
- Compact design suitable for laboratory workbenches and classrooms
- Camera connection available on trinocular configurations
Viewing Head Options
| Monocular | Inclined at 30°, rotatable through 360° and fitted with an eyepiece-locking mechanism. |
|---|---|
| Binocular | Seidentopf binocular head inclined at 30° and rotatable through 360°, with 50–75 mm interpupillary adjustment and right-eye dioptre adjustment of ±5. |
| Trinocular | Seidentopf trinocular head inclined at 30° and rotatable through 360°, with 50–75 mm interpupillary adjustment, right-eye dioptre adjustment of ±5 and a 50:50 light distribution. |
Technical Specification
| Optical System | Finite optical system |
|---|---|
| Eyepiece | PL10×/18 mm widefield eyepiece |
| Achromatic Objectives | 4×/0.10, 10×/0.25, 40×/0.65 spring-loaded and 100×/1.25 oil spring-loaded, according to model |
| Plan Achromatic Objectives | 4×/0.10, 10×/0.25, 40×/0.65 spring-loaded and 100×/1.25 oil spring-loaded, according to model |
| Nosepiece | Backward-facing quadruple nosepiece |
| Monocular Stage | Single-layer stage with two specimen clips, 110 × 120 mm |
| Binocular and Trinocular Stage | Double-layer mechanical stage, 115 × 125 mm, with 70 × 30 mm movement |
| Focusing | Low-position coaxial coarse and fine adjustment with stop and tension control |
| Focusing Range | 13 mm with single-layer stage or 7 mm with double-layer mechanical stage |
| Fine-Focus Precision | 0.002 mm |
| Monocular Condenser | NA 0.65 simple condenser with five-hole rotating diaphragm |
| Binocular and Trinocular Condenser | NA 1.25 Abbe condenser with iris diaphragm and filter holder |
| Illumination | Adjustable 0.2 W LED, 5700–6500 K colour temperature |
| Power Supply | External 100–240 V power adapter with 5 V/1 A output |
| Rechargeable Module | Built-in rechargeable battery compartment with three Ni-MH AA batteries |
| Packed Dimensions | Approximately 44 × 47 × 24 cm |
| Weight | Gross weight approximately 6 kg; net weight approximately 5 kg |
Optional Accessories
- PL10×/18 mm eyepiece with pointer
- PL10×/18 mm eyepiece with micrometer
- Alternative achromatic and plan achromatic objectives
- 0.35× adjustable C-mount adapter
- 0.5× adjustable C-mount adapter
- 0.65× adjustable C-mount adapter
- 1× adjustable C-mount adapter
C-mount adapters are available for trinocular configurations only. Optional accessories are supplied separately.
Applications
- School and college biological education
- Routine laboratory microscopy
- Clinical and medical observation
- Agricultural and veterinary studies
- Academic laboratories
- General scientific research
Need Help Choosing a Model?
Contact Auckland Scientific for assistance selecting the appropriate viewing head, objective type, stage, condenser or camera adapter for your application.
