AUC-228 Upright Ergonomic Biological LED Microscope – Viewing Head & Objective Options

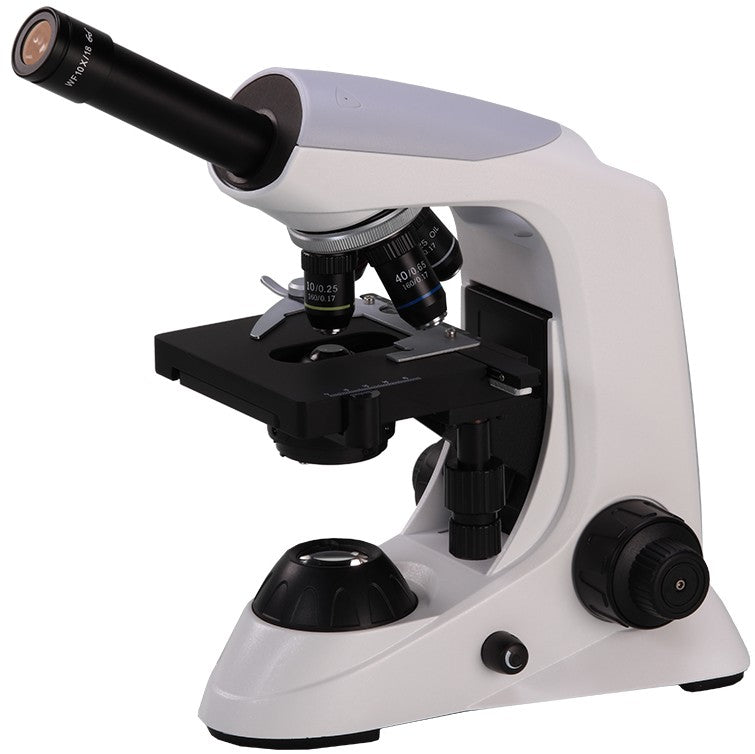

The AUC-228 Series is a modern biological microscope designed for college education, medical and laboratory studies. Its ergonomic controls, integrated carrying handle and compact drop-style frame provide comfortable operation while maintaining excellent stability.
Available with monocular, binocular or trinocular viewing and a choice of achromatic or plan achromatic objectives, the AUC-228 can be configured for education, routine laboratory microscopy and more demanding applications requiring improved field flatness.
The adjustable 3 W LED illumination uses a safe low-voltage power input and can be powered from a suitable mains adapter, power bank, laptop or portable power source.
Available Models
| Model | Viewing Head | Objectives Supplied |
|---|---|---|
| AUC-228M | Monocular | Achromatic 4×, 10×, 40× and 100× oil |
| AUC-228B | Binocular | Achromatic 4×, 10×, 40× and 100× oil |
| AUC-228T | Trinocular | Achromatic 4×, 10×, 40× and 100× oil |
| AUC-228M-P | Monocular | Plan achromatic 4×, 10×, 40× and 100× oil |
| AUC-228B-P | Binocular | Plan achromatic 4×, 10×, 40× and 100× oil |
| AUC-228T-P | Trinocular | Plan achromatic 4×, 10×, 40× and 100× oil |
Key Features
- Modern compact drop-style microscope frame
- Choice of monocular, binocular or trinocular viewing
- Choice of achromatic or plan achromatic objectives
- WF10×/18 mm widefield eyepiece or eyepieces
- Backward-facing quadruple nosepiece
- Low-position coaxial coarse and fine focusing controls
- Double-layer mechanical stage
- NA 1.25 Abbe condenser with iris diaphragm
- Adjustable 3 W LED illumination
- Safe low-voltage power input
- Can be powered by a suitable power bank or portable power source
- Integrated rear storage compartment for small accessories
- Objective viewing window allows magnification to be checked from the rear
- Integrated carrying handle for convenient transport
- Optional camera adapters for trinocular models
Viewing Head Options
| Monocular | Inclined at 30° and rotatable through 360°. |
|---|---|
| Binocular | Butterfly-style binocular viewing head inclined at 30° and rotatable through 360°, with an adjustable interpupillary distance of 48–75 mm. |
| Trinocular | Trinocular viewing head inclined at 30° and rotatable through 360°, with an adjustable interpupillary distance of 48–75 mm and an eyepiece-to-camera light split of 20:80. |
Technical Specification
| Optical System | Colour-corrected finite optical system |
|---|---|
| Standard Eyepieces | WF10×/18 mm widefield eyepiece or eyepieces |
| Achromatic Objectives | 4×/0.10, 10×/0.25, 40×/0.65 spring-loaded and 100×/1.25 oil spring-loaded |
| Plan Achromatic Objectives | 4×/0.10, 10×/0.25, 40×/0.65 spring-loaded and 100×/1.25 oil spring-loaded |
| Magnification | 40×, 100×, 400× and 1000× with the supplied WF10× eyepiece or eyepieces |
| Nosepiece | Backward-facing quadruple nosepiece |
| Mechanical Stage | Double-layer mechanical stage, approximately 125 × 115 mm |
| Stage Movement | Approximately 35 × 75 mm |
| Focusing | Low-position coaxial coarse and fine focusing controls |
| Coarse-Focus Range | Approximately 25 mm |
| Fine-Focus Division | Approximately 2 µm |
| Condenser | NA 1.25 Abbe condenser with iris diaphragm |
| Illumination | Adjustable 3 W LED illumination |
| Power Input | 5–12 V low-voltage input |
| Storage | Integrated rear storage compartment for small accessories |
| Objective Indicator | Rear observation window allows the selected objective magnification to be checked |
Optional Accessories
- WF10×/18 mm eyepiece with pointer
- WF10×/18 mm eyepiece with 0.1 mm reticle
- Adjustable WF10×/18 mm eyepiece
- 20× achromatic or plan achromatic objective
- 60× achromatic or plan achromatic objective
- Darkfield attachment for use with 4×–40× objectives
- 0.5× adjustable C-mount adapter
- 1× adjustable C-mount adapter
C-mount adapters are available for trinocular configurations only. Optional accessories are supplied separately.
Applications
- College and university education
- Biological and histological microscopy
- Pathology and bacteriology studies
- Immunisation and pharmacy laboratories
- Medical and laboratory studies
- Routine scientific research
Need Help Choosing a Model?
Contact Auckland Scientific for assistance selecting the most appropriate viewing head, objective quality, imaging adapter or configuration for your application.
