AUC-230 Biological & Digital LED Microscopes

Classical laboratory microscopes available with a built-in 5MP digital camera or finite plan-achromatic optics.

Reliable Microscopy for Education and Laboratory Work

Click to View PDF

The Auckland Scientific AUC-230 series combines precision construction, dependable optical performance and straightforward ergonomic operation. These compact microscopes are suitable for biological, histological, educational, agricultural and routine laboratory applications.

Choose the AUC-230BD-5MP for convenient digital imaging, the AUC-230B-P for comfortable binocular observation with plan-achromatic objectives, or the AUC-230T-P when a dedicated trinocular camera port is required.

40×–1000×
Standard magnification range

5MP Imaging
Digital binocular option

1W S-LED
Adjustable illumination

NA 1.25
Abbe condenser

Choose Your Model

Model	Head	Objectives	Camera configuration
AUC-230BD-5MP	Digital binocular	Finite achromatic 4×, 10×, 40× and 100× oil	Integrated 5.0MP digital camera
AUC-230B-P	Sliding binocular	Finite plan-achromatic 4×, 10×, 40× and 100× oil	Camera may be fitted through an eyepiece tube with a suitable adapter
AUC-230T-P	Sliding trinocular	Finite plan-achromatic 4×, 10×, 40× and 100× oil	Dedicated trinocular camera port; adapter and camera sold separately

Key Features

Finite optical system for routine transmitted-light microscopy
Wide-field WF10×/18mm eyepieces
Standard magnifications of 40×, 100×, 400× and 1000×
Backward-facing quadruple nosepiece
Double-layer mechanical stage capable of holding two slides
Coaxial coarse and fine focusing with 0.002mm fine adjustment
NA 1.25 Abbe condenser with iris diaphragm and filter holder
Adjustable 1W S-LED transmitted illumination
Firm aluminium body with built-in universal-voltage power supply
Compact design suitable for desks and laboratory workbenches

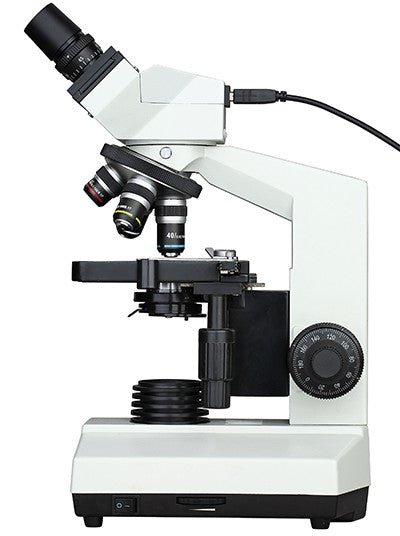

AUC-230BD-5MP Digital Microscope

The AUC-230BD-5MP incorporates a 5.0-megapixel digital camera into its binocular viewing head. It provides a convenient solution for displaying specimens on a computer, recording observations and producing teaching or laboratory documentation.

Capture still images and video
Live specimen preview on a connected computer
Image processing and measurement functions through compatible software
Suitable for classroom demonstrations, training and routine documentation

Please note: Computer hardware, operating-system and software compatibility should be confirmed before ordering the digital model.

Technical Specification

Specification	Details
Optical system	Finite optical system
Digital head	Sliding binocular head with integrated 5.0MP camera; inclined at 45° and rotatable through 360°; interpupillary distance 55–75mm
Binocular head	Sliding binocular head inclined at 45° and rotatable through 360°; interpupillary distance 55–75mm
Trinocular head	Sliding trinocular head inclined at 45° and rotatable through 360°; interpupillary distance 55–75mm
Eyepieces	Wide-field WF10×/18mm
Objective set	4×, 10×, 40× spring and 100× spring oil-immersion; achromatic on the digital model and plan-achromatic on Plan models
Total magnification	40×, 100×, 400× and 1000×
Nosepiece	Quadruple revolving nosepiece
Stage	140 × 140mm double-layer mechanical stage; approximately 75 × 50mm movement range; two-slide holder
Focusing	Coaxial coarse and fine adjustment; 0.002mm fine division; 28mm movement range
Condenser	NA 1.25 Abbe condenser with iris diaphragm and filter
Illumination	1W S-LED illumination with adjustable brightness
Power supply	Built-in 110–240V universal-voltage power supply
Construction	Firm aluminium microscope body
Package	One microscope per carton; approximately 33 × 28 × 44cm; gross weight approximately 7kg

Applications

Schools, colleges and universities
Biology and histology laboratories
Medical and clinical training
Agricultural and veterinary studies
Routine specimen examination
Digital teaching and image documentation

Standard Accessories

WF10×/18mm wide-field eyepieces
Four-objective optical set appropriate to the selected variant
Dust cover
Immersion oil
User instructions
Digital imaging software for the AUC-230BD-5MP

Optional Accessories

WF16×/11mm eyepieces
20× and 60× objectives
Simple, sliding or turret phase-contrast kits
Dry and oil dark-field attachments
Simple polarization set
Fluorescence attachment
Rechargeable battery system for LED operation
C-mount adapters and reduction lenses for compatible cameras

Need help choosing a model?

Select the 5MP digital model for direct computer imaging, the binocular Plan model for high-quality visual observation, or the trinocular Plan model when a separate microscope camera will be attached.

Contact Auckland Scientific

If you need help selecting the correct microscope, objective configuration, camera or accessories, please contact Auckland Scientific. We will be happy to discuss your application and recommend the most suitable configuration.
