AUC-232 Laboratory Biological Microscope

Binocular and trinocular microscopes with achromatic objectives and fixed Köhler halogen illumination.

High-Quality Routine Laboratory Microscopy

Click to View PDF

The Auckland Scientific AUC-232 series comprises reliable biological microscopes designed for education, medical training and routine laboratory observation. A carefully engineered optical and mechanical system provides clear specimen images, comfortable operation and dependable day-to-day performance.

Both models are supplied with a complete set of 4×, 10×, 40× and 100× achromatic objectives. The built-in 6V/20W halogen illuminator with fixed Köhler illumination provides even, controlled lighting across the specimen field.

40×–1000×
Standard magnification range

Fixed Köhler
Even specimen illumination

6V/20W
Adjustable halogen lamp

NA 1.25
Abbe condenser

Available Models

Model	Viewing head	Objective set	Recommended use
AUC-232B	Binocular	Achromatic 4×, 10×, 40× and 100× oil	Comfortable visual observation
AUC-232T	Trinocular with camera port	Achromatic 4×, 10×, 40× and 100× oil	Visual observation and optional digital imaging

Key Features

Finite optical system with clear, dependable image quality
Binocular and trinocular viewing-head options
Wide-field PL10×/18mm eyepieces

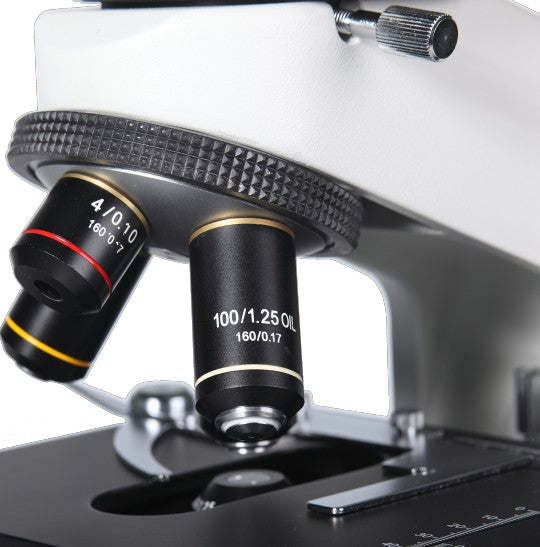

Achromatic 4×, 10×, 40× and 100× oil-immersion objectives
Total standard magnifications of 40×, 100×, 400× and 1000×
Backward-facing quadruple revolving nosepiece

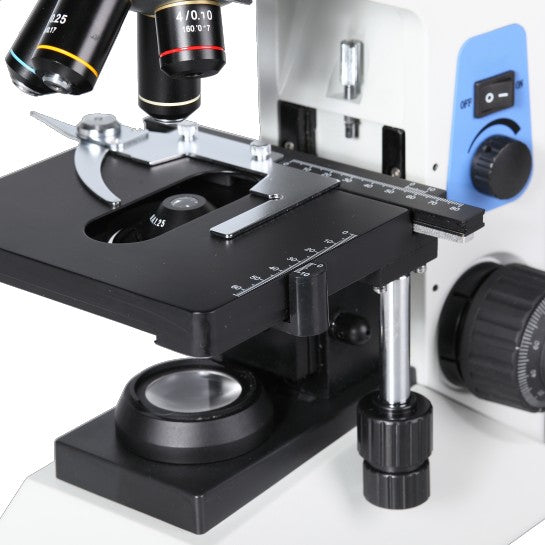

Large 140 × 132mm double-layer mechanical stage

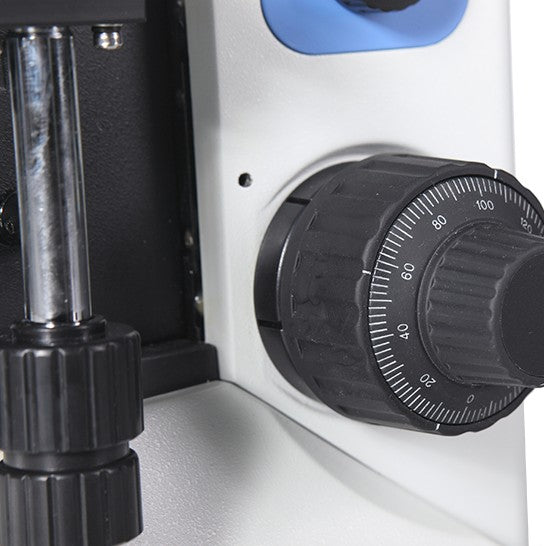

Coaxial coarse and fine focusing controls
NA 1.25 Abbe condenser with iris diaphragm
6V/20W halogen lamp with fixed Köhler illumination
Adjustable illumination intensity
Supplied with a 45mm-diameter blue filter

Binocular or Trinocular?

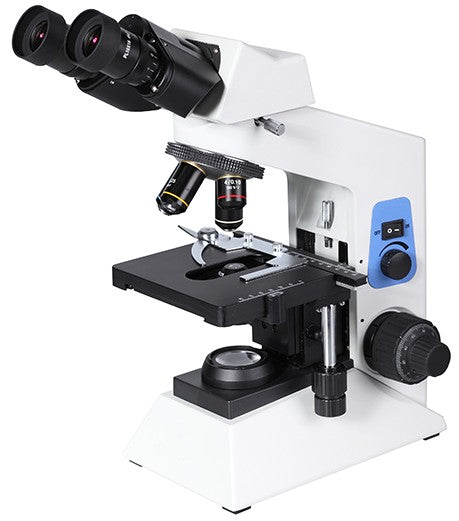

AUC-232B Binocular

The binocular model is ideal when the microscope will primarily be used for direct visual examination. The twin eyepiece tubes provide comfortable observation during extended laboratory sessions.

AUC-232T Trinocular

The trinocular model adds a dedicated camera port, allowing a compatible microscope camera to be connected for specimen display, image capture, measurement and documentation. Camera and adapter are available separately.

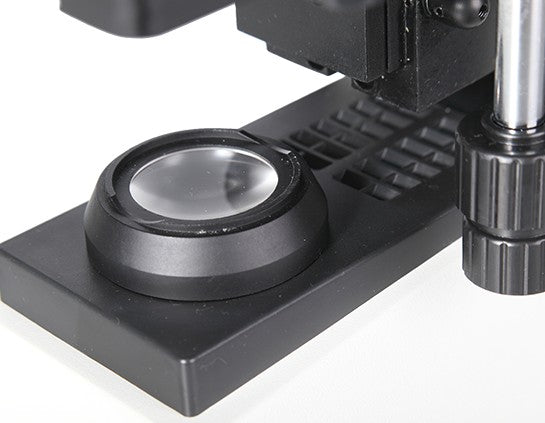

Fixed Köhler Illumination

Köhler illumination is designed to provide a bright and evenly illuminated specimen field while reducing glare and unwanted optical artefacts. The AUC-232 uses a factory-aligned fixed Köhler system, providing the benefits of controlled laboratory illumination without requiring the user to perform a complete Köhler alignment each time the microscope is used.

The supplied blue filter can be placed in the illumination path to balance the warmer colour temperature of the halogen lamp and produce a more neutral viewing background.

Technical Specification

Specification	Details
Optical system	Finite optical system
Viewing head	Binocular or trinocular according to the selected model
Eyepieces	Wide-field plan PL10×/18mm
Objectives	Finite achromatic 4×, 10×, 40× spring and 100× spring oil immersion
Magnification	40×, 100×, 400× and 1000×
Nosepiece	Backward quadruple revolving nosepiece
Stage	140 × 132mm double-layer mechanical stage
Focusing	Coaxial coarse and fine focusing adjustment
Condenser	NA 1.25 Abbe condenser with iris diaphragm
Illumination	6V/20W halogen lamp with fixed Köhler illumination and adjustable brightness
Filter	Blue filter, 45mm diameter

Applications

Schools, colleges and universities
Biological teaching laboratories
Medical and clinical training
Histology and pathology education
Agricultural and veterinary studies
Routine laboratory specimen examination
Digital documentation with the trinocular model

Standard Configuration

Selected binocular or trinocular microscope stand
PL10×/18mm wide-field eyepieces
Achromatic 4× objective
Achromatic 10× objective
Achromatic 40× spring objective
Achromatic 100× spring oil-immersion objective
45mm blue filter
Immersion oil
Dust cover
User instructions

Need help choosing a model?

Choose the AUC-232B for comfortable direct visual observation, or the AUC-232T when a dedicated camera port is required for imaging and documentation.

Contact Auckland Scientific

If you need help selecting the correct microscope, camera, objective configuration or accessories, please contact Auckland Scientific. We will be happy to discuss your application and recommend the most suitable configuration.
