Advanced Microscopy for Education and Laboratory Work

Click to view PDF

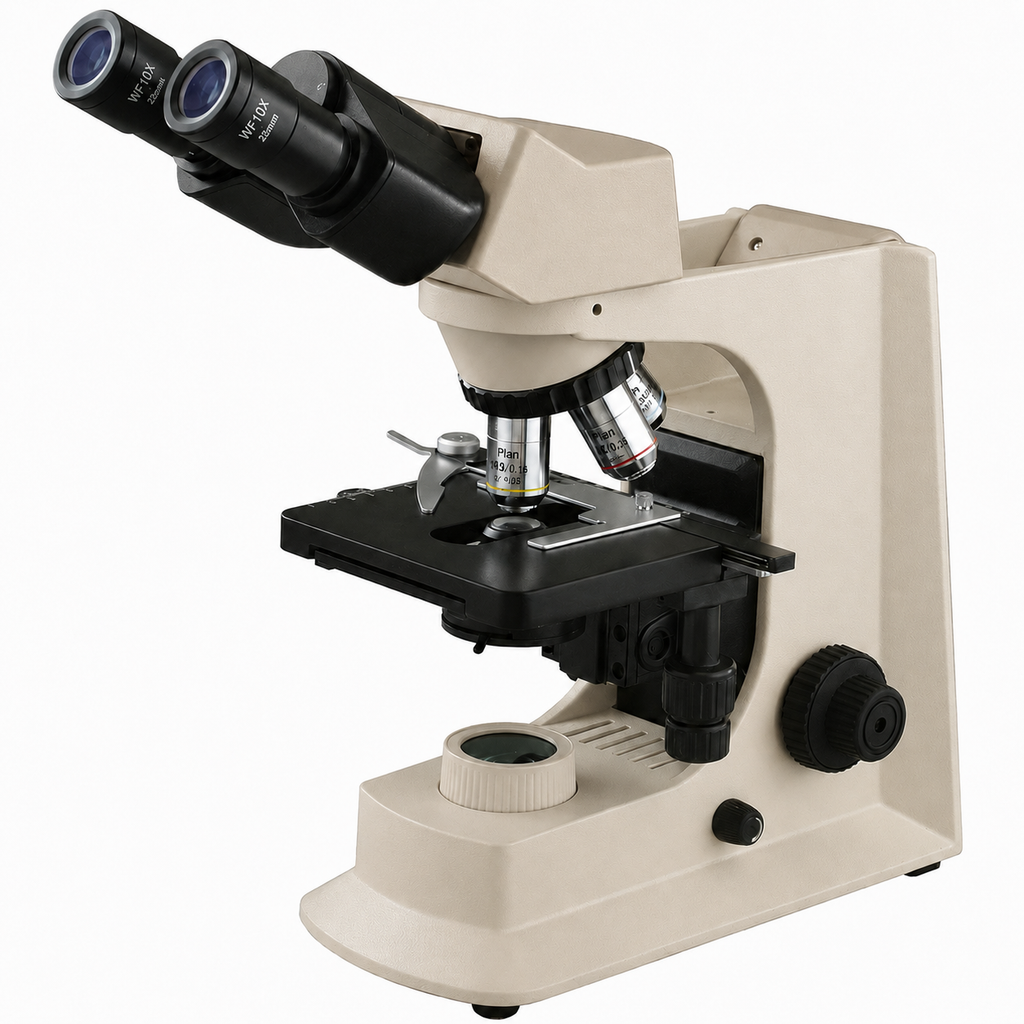

The Auckland Scientific AUC-236D series is a versatile range of biological microscopes designed for college education, medical training and routine laboratory study. Its high-quality infinity optical system, ergonomic controls and robust mechanical construction provide excellent image quality with straightforward operation.

Both configurations include high-eyepoint WF10×/20mm eyepieces and a complete set of 4×, 10×, 40× and 100× infinity plan-achromatic objectives. The trinocular AUC-236DT also includes an adjustable-focus 0.5× C-mount adapter for connecting a compatible microscope camera.

Choose Your Configuration

Key Features

• Infinity-corrected optical system
• Infinity plan-achromatic 4×, 10×, 40× and 100× objectives
• High-eyepoint WF10×/20mm wide-field eyepieces
• Standard magnifications of 40×, 100×, 400× and 1000×
• Binocular and trinocular viewing-head options
• 30° inclined head, rotatable through 360°
• 48–75mm adjustable interpupillary distance
• Backward-facing quadruple revolving nosepiece
• Large double-layer mechanical stage with two-slide holder
• Low-position coaxial coarse and fine focusing controls
• NA 1.25 Abbe condenser with iris diaphragm
• Bright, adjustable 3W LED transmitted illumination
• Ergonomic carrying handle incorporated into the stand
• Wide range of optional contrast and fluorescence accessories

Infinity Plan Optical System

Infinity plan-achromatic objectives are designed to provide a flatter image across the field of view, helping keep both the centre and peripheral areas of the specimen in focus. The infinity-corrected optical system also provides greater flexibility for adding compatible optical accessories.

The supplied objective set covers routine scanning, low-power examination, high-power dry observation and 100× oil-immersion microscopy.

Ergonomic Viewing

The viewing head is inclined at 30° and can be rotated through 360°, allowing the microscope to be shared or positioned comfortably on the laboratory bench. The interpupillary distance can be adjusted from 48 to 75mm to suit different users.

The low-position coaxial stage and focusing controls allow the operator to adjust the specimen and focus without repeatedly changing hand position, reducing fatigue during extended observation.

AUC-236DT Trinocular Imaging

The AUC-236DT features a dedicated trinocular camera port with a light distribution ratio of approximately 20% to the eyepieces and 80% to the trinocular port. This directs the majority of available light towards the connected camera for bright digital image capture.

An adjustable-focus 0.5× C-mount adapter is included with the AUC-236DT. A compatible C-mount microscope camera is required and is available separately.

Technical Specification

Applications

• Colleges and universities
• Biological teaching laboratories
• Medical and clinical training
• Histology and pathology
• Bacteriology and immunology
• Pharmacy and pharmaceutical laboratories
• Routine laboratory specimen examination
• Digital imaging and documentation with the trinocular model

Standard Configuration

• Selected binocular or trinocular microscope stand
• Pair of high-eyepoint WF10×/20mm eyepieces
• Infinity plan-achromatic 4× objective
• Infinity plan-achromatic 10× objective
• Infinity plan-achromatic 40× spring objective
• Infinity plan-achromatic 100× spring oil-immersion objective
• Backward quadruple nosepiece
• NA 1.25 Abbe condenser
• 3W LED illumination system
• 0.5× C-mount adapter with the AUC-236DT only

Optional Accessories

• WF16×/13mm eyepieces
• Reticule and measuring eyepieces
• 20× and 60× infinity plan objectives
• 100× water-immersion objective
• Quintuple revolving nosepiece
• Rackless mechanical stage
• Dry and oil dark-field condensers
• Independent infinity phase-contrast system
• Polarizer and analyser set
• LED and mercury fluorescence attachments
• Blue, green and yellow filters
• DSLR camera adapters
• 0.75× and 1× C-mount adapters
• Rechargeable battery system
• Cable-winding device
