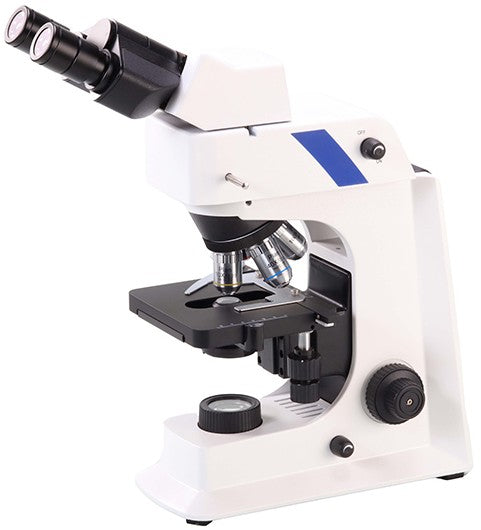

AUC-236F2 Upright LED Fluorescence Biological Microscope with Viewing Head Options
Binocular – Blue & Green
£2,159.00
Sale price
£2,159.00
Regular price
Skip to product information
AUC-236F2 Upright LED Fluorescence Biological Microscope with Viewing Head Options
£2,159.00
Sale price
£2,159.00
Regular price
AUC-236F2 LED Fluorescence Biological Microscope
Infinity plan optics with long-life LED fluorescence illumination
Click to View PDF
The Auckland Scientific AUC-236F2 series comprises professional LED fluorescence biological microscopes designed for clinical, educational and life-science applications. Binocular and trinocular configurations are available with either Blue and Green fluorescence or a single Blue or Green fluorescence channel.
The infinity-corrected optical system, wide-field eyepieces and plan achromatic objectives deliver flat, sharply resolved images across the field of view. Cold LED fluorescence illumination provides immediate operation without the warm-up and cool-down requirements associated with traditional mercury-lamp systems.
Available configurations
| Model | Viewing head | Fluorescence | Camera connection |
|---|---|---|---|
| AUC-236F2B-BG | Binocular | Blue and Green | Visual observation |
| AUC-236F2B-BG1 | Binocular | Blue or Green – select one | Visual observation |
| AUC-236F2T-BG | Trinocular | Blue and Green | Adjustable 0.5× C-mount included |
| AUC-236F2T-BG1 | Trinocular | Blue or Green – select one | Adjustable 0.5× C-mount included |
Important: For models described as “Blue or Green,” please specify the required fluorescence filter channel when ordering.
Key features
- Infinity-corrected plan optical system.
- High-eyepoint wide-field WF10×/20mm eyepieces.
- Infinity plan achromatic 4×, 10×, 40× and 100× objectives.
- Standard magnification range of 40× to 1000×.
- Long-life 5W LED fluorescence illumination.
- Immediate operation with no lamp warm-up period.
- Low-heat cold-light fluorescence source.
- Adjustable 3W transmitted LED illumination.
- Binocular and trinocular configurations available.
- Adjustable 0.5× C-mount supplied with trinocular models.
Technical specification
| Optical system | Infinity-corrected optical system |
|---|---|
| Viewing head | Binocular or trinocular head inclined at 30°, 360° rotatable, with 48–75mm interpupillary adjustment |
| Trinocular light split | Eyepieces 20% / trinocular port 80% |
| Eyepieces | WF10×/20mm wide-field eyepieces |
| Objectives | Infinity plan achromatic 4×, 10×, 40× spring and 100× spring oil-immersion objectives |
| Nosepiece | Backward quadruple revolving nosepiece |
| Focusing | Coaxial coarse and fine focusing; 26mm travel; 2µm fine scale |
| Stage | 145 × 140mm double-layer mechanical stage; 76 × 52mm travel; two-slide holder |
| Condenser | NA 1.25 Abbe condenser with iris diaphragm |
| Transmitted illumination | Adjustable 3W LED |
| Fluorescence illumination | 5W LED fluorescence source with Blue and Green or single Blue/Green configuration, depending on model |
| Camera connection | Adjustable 0.5× C-mount included with trinocular models |
Applications
Suitable for fluorescence imaging in cellular biology, pathology, immunofluorescence, disease examination, immune diagnosis, medical laboratories, universities and life-science research.
Product image notice: Product images are provided for illustration purposes and may differ slightly from the product supplied. Minor variations in colour, finish, labelling and component appearance may occur without affecting the stated specification or performance.
Contact Auckland Scientific
Please contact Auckland Scientific to discuss your fluorophore, stain, camera or application requirements. We can help identify the most appropriate fluorescence filter and microscope configuration.
