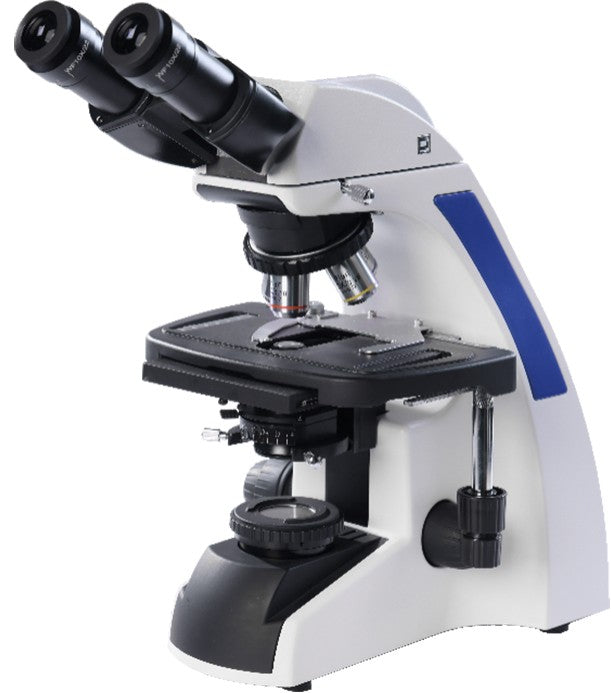

AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement

AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement

Binocular
£898.00
£898.00
Skip to product information
AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement
  • AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement
  • AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement
  • AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement
  • AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement
  • AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement
  • AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement
AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement

AUC-237 Upright Infinity Plan Biological Microscope with Large 216 x 150mm double-layer mechanical stage; 75 × 55mm movement

£898.00
£898.00
Viewing Head Options

AUC-237 Infinity Plan Biological Microscope

Professional wide-field microscopy with binocular and trinocular viewing options



Click to view PDF



The Auckland Scientific AUC-237 series combines an infinity-corrected optical system with wide-field PL10×/22mm eyepieces and infinity plan achromatic objectives. It provides clear, flat-field images with excellent resolution across a generous 22mm field of view.

Its ergonomic design, low-position focusing controls, large mechanical stage and adjustable LED Köhler illumination make the AUC-237 suitable for routine laboratory work, teaching and higher-level biological microscopy.

Choose the binocular AUC-237B for direct visual observation or the trinocular AUC-237BT for visual observation and camera imaging. The trinocular model is supplied with an adjustable 0.5× C-mount adapter.

Available configurations

Model Viewing head Optical system Camera connection
AUC-237B Binocular Infinity plan Visual observation
AUC-237BT Trinocular Infinity plan Adjustable 0.5× C-mount included

Key features

  • Infinity-corrected plan optical system.
  • Extra-wide-field PL10×/22mm eyepieces.
  • Infinity plan achromatic 4×, 10×, 40× and 100× objectives.
  • Standard magnification range of 40× to 1000×.
  • Anti-mould optical treatment for improved service life.
  • Backward quadruple revolving nosepiece.
  • Large 216 × 150mm double-layer mechanical stage.
  • Low-position coaxial coarse and fine focusing controls.
  • Adjustable 3W LED Köhler illumination.
  • NA 1.25 Abbe condenser with iris diaphragm and filter holder.
  • Binocular and trinocular viewing options.
  • Adjustable 0.5× C-mount included with the trinocular model.

Optical configuration

Objective Type Numerical aperture Working distance
4× Infinity plan achromatic NA 0.10 20.49mm
10× Infinity plan achromatic NA 0.25 4.50mm
40× Infinity plan achromatic, spring-loaded NA 0.65 0.24mm
100× oil Infinity plan achromatic, spring-loaded oil immersion NA 1.25 0.15mm

Technical specification

Optical system Infinity-corrected optical system
Binocular head Inclined at 30°, 360° rotatable; interpupillary adjustment approximately 48–75mm
Trinocular head Inclined at 30°, 360° rotatable; interpupillary adjustment approximately 48–75mm; camera port
Eyepieces PL10×/22mm extra-wide-field eyepieces
Objectives Infinity plan achromatic 4×, 10×, 40× and 100× oil immersion
Nosepiece Backward quadruple revolving nosepiece
Focusing Low-position coaxial coarse and fine focusing; 24mm travel; fine-focus precision 0.002mm
Mechanical stage 216 × 150mm double-layer mechanical stage; approximately 75 × 55mm movement
Condenser NA 1.25 Abbe condenser with iris diaphragm and filter holder
Illumination Adjustable 3W LED Köhler illumination
Camera adapter Adjustable 0.5× C-mount included with AUC-237BT
Packaging One microscope per carton; approximately 52 × 31.5 × 38.5cm; gross weight approximately 7kg

Optional accessories

  • Additional eyepieces and objectives.
  • 20× and 60× infinity plan objectives.
  • Simple polarising attachment.
  • Dry and oil darkfield attachments.
  • Phase-contrast kit.
  • Alternative C-mount camera adapters.

Applications

Suitable for biological, histological, pathological, bacteriological, immunological and pharmaceutical microscopy. The AUC-237 series is designed for use in clinical laboratories, hospitals, universities, teaching laboratories and scientific research facilities.

Product image notice: Product images are provided for illustration purposes and may differ slightly from the product supplied. Minor variations in colour, finish, labelling and component appearance may occur without affecting the stated specification or performance.

Contact Auckland Scientific

Please contact Auckland Scientific to discuss your application, accessories or camera requirements. We can help identify the most suitable microscope and imaging configuration.
