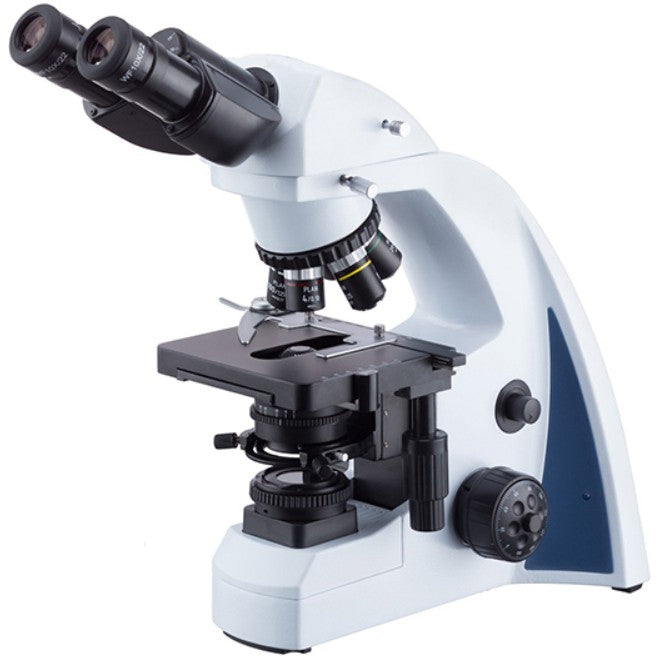

AUC-241 Series Upright Infinity Plan Biological LED Microscopes – Rackless Double Layers Mechanical Stage
Binocular
£1,295.00
Sale price
£1,295.00
Regular price
Skip to product information
AUC-241 Series Upright Infinity Plan Biological LED Microscopes – Rackless Double Layers Mechanical Stage
£1,295.00
Sale price
£1,295.00
Regular price
Auckland Scientific Biological Microscopes
AUC-241 Series Infinity Plan Biological Microscopes
Advanced routine microscopy with 22mm wide-field optics, infinity plan achromatic objectives, a rackless mechanical stage and binocular or camera-ready trinocular configurations.
Click to view PDF
High-Definition Imaging and Comfortable Operation
The AUC-241 Series combines a high-definition infinity optical system with an ergonomic microscope stand and precision mechanical controls. Infinity plan achromatic objectives provide sharp, flat images across the field of view, making the series suitable for demanding routine laboratory, clinical, teaching and research applications.
Both variants are supplied with generous WF10X/22mm eyepieces with dioptre adjustment, a rackless double-layer mechanical stage, a sliding-in centreable Abbe condenser and adjustable 3W LED illumination. The integrated carrying handle allows the microscope to be repositioned safely and conveniently.
Available Configurations
| Model | Viewing Head | Supplied Configuration |
|---|---|---|
| AUC-241B | Binocular | WF10X/22mm eyepieces, 4X, 10X, 40X and 100X infinity plan achromatic objectives, quadruple nosepiece, rackless mechanical stage, centreable Abbe condenser and adjustable 3W LED illumination. |
| AUC-241T | Trinocular | WF10X/22mm eyepieces, 4X, 10X, 40X and 100X infinity plan achromatic objectives, quadruple nosepiece, rackless mechanical stage, centreable Abbe condenser, adjustable 3W LED illumination and 0.5X C-mount adapter. |
Select the AUC-241B for binocular observation or the AUC-241T for observation, image capture and compatible microscope camera integration.
Key Features
Infinity Plan Optical System
Delivers sharp, flat and well-corrected images across the field of view.
22mm Wide Field of View
WF10X/22mm eyepieces provide a spacious viewing field with individual dioptre adjustment.
Rackless Mechanical Stage
A smooth rackless stage design improves safety, handling and precise specimen positioning.
Centreable Condenser
Sliding-in centreable Abbe condenser with NA 1.25 for accurate illumination alignment.
Adjustable LED Illumination
Bright, efficient and adjustable 3W LED transmitted illumination.
Camera-Ready Trinocular Model
The AUC-241T includes a trinocular photo port and 0.5X C-mount adapter.
Technical Specifications
| Optical system | Infinity-corrected plan achromatic optical system |
|---|---|
| Viewing head | Seidentopf binocular or trinocular head, 30° inclined, with 48-75mm interpupillary adjustment |
| Trinocular light distribution | 100:0 or 50:50 eyepiece-to-camera light distribution on AUC-241T |
| Eyepieces | WF10X/22mm wide-field eyepieces with dioptre adjustment |
| Objectives | 4X, 10X, 40X spring-loaded and 100X spring-loaded oil-immersion infinity plan achromatic objectives |
| Magnification range | 40X to 1000X with the supplied optics |
| Nosepiece | Backward-facing quadruple nosepiece |
| Stage | Rackless double-layer mechanical stage, 150mm × 139mm, with 75mm × 52mm movement |
| Condenser | Sliding-in centreable Abbe condenser, NA 1.25 |
| Focusing | Coaxial coarse and fine focusing, 0.002mm fine division and 20mm focusing range |
| Illumination | Adjustable 3W LED transmitted illumination |
| Camera adapter | 0.5X C-mount supplied with AUC-241T |
Expandable for Specialist Techniques
The AUC-241 Series can be expanded with optional equipment for a variety of specialist observation and imaging techniques.
- Phase contrast equipment
- Dry or oil darkfield condensers
- Simple polarising set with polariser and analyser
- LED epi-fluorescence attachment with selected filter groups
- Alternative eyepieces and objectives
- Köhler illumination configuration
- Microscope cameras, adapters and imaging software
Optional accessories are subject to configuration and compatibility. Please contact Auckland Scientific before ordering.
Applications
The AUC-241 Series is suitable for biological, pathological, histological, bacteriological, immunological, pharmacological and genetic applications.
Hospitals and clinics
Medical laboratories
Universities and colleges
Teaching laboratories
Research centres
Pharmaceutical laboratories
Standard Equipment
- Binocular or trinocular microscope body according to the selected model
- Pair of WF10X/22mm eyepieces with dioptre adjustment
- 4X infinity plan achromatic objective
- 10X infinity plan achromatic objective
- 40X spring-loaded infinity plan achromatic objective
- 100X spring-loaded oil-immersion infinity plan achromatic objective
- Backward-facing quadruple nosepiece
- Rackless mechanical stage
- Centreable Abbe condenser, NA 1.25
- Adjustable 3W LED illumination
- 0.5X C-mount adapter supplied with the AUC-241T only
3-Year Auckland Scientific Microscope Warranty
Both variants are supplied with a comprehensive 3-year Auckland Scientific microscope warranty, subject to the microscope receiving an annual service. Warranty conditions apply, and full warranty terms are available on request.
Why Choose Auckland Scientific?
- Specialist advice: Help selecting the most appropriate microscope and accessories.
- Installation and commissioning: Professional setup services are available.
- User training: Practical microscope and imaging training can be provided.
- Service and maintenance: Preventative servicing and breakdown support are available.
- UK-based support: Friendly assistance from an experienced scientific equipment specialist.
Request a Quotation
Contact Auckland Scientific for pricing, availability, optional accessories, microscope cameras, installation, training or application advice.
Contact Auckland ScientificProduct images are provided for illustration purposes. Specifications may be updated without notice. Delivery, installation, commissioning, training, cameras, software and optional accessories are not included unless stated in your written quotation.
