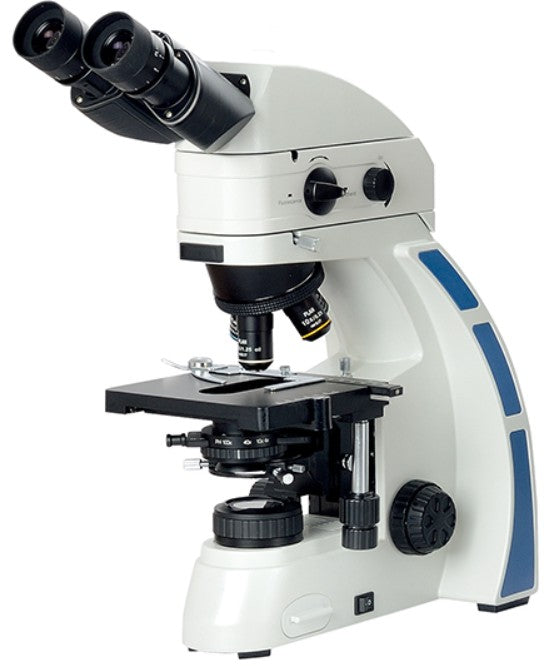

AUC-244F Upright LED Fluorescence Biological Microscopes – Binocular or Trinocular
Binocular
£3,595.00
Sale price
£3,595.00
Regular price
Skip to product information
AUC-244F Upright LED Fluorescence Biological Microscopes – Binocular or Trinocular
£3,595.00
Sale price
£3,595.00
Regular price
Auckland Scientific LED Fluorescence Microscopes
AUC-244F Series LED Fluorescence Biological Microscopes
High-quality binocular and trinocular fluorescence microscopes with infinity colour-corrected optics, Köhler transmitted illumination and an included B1 LED fluorescence module.
Click to View PDF
LED Fluorescence and Brightfield Microscopy in One Versatile System
The AUC-244F Series comprises high-quality LED fluorescence biological microscopes designed for biological and medical research, teaching, pathological examination and routine clinical applications.
An infinity colour-corrected optical system, high-eyepoint PL10X/22mm eyepieces and infinity plan achromatic objectives provide clear, bright and comfortable images. The standard B1 LED fluorescence module incorporates intensity adjustment and a convenient control for changing between fluorescence and transmitted brightfield observation.
The ergonomic stand, low-position focusing controls, adjustable Köhler illumination and secure mechanical design support accurate, comfortable and dependable operation during extended laboratory use.
Standard Fluorescence Configuration
B1 LED Fluorescence Module Included
Both the AUC-244FB-LED and AUC-244FT-LED are supplied with a B1 band-pass LED fluorescence module. The module includes fluorescence intensity adjustment and a control for changing between brightfield and fluorescence observation.
LED excitation illumination provides stable performance, low radiation and a long operating life. Additional fluorescence modules are available separately for other applications.
Available Configurations
| Model | Viewing Head | Standard Configuration |
|---|---|---|
| AUC-244FB-LED | Binocular | PL10X/22mm eyepieces, Seidentopf binocular head, 4X, 10X, 40X and 100X infinity plan achromatic objectives, B1 LED fluorescence module, Köhler condenser and adjustable 3W LED transmitted illumination. |
| AUC-244FT-LED | Trinocular | PL10X/22mm eyepieces, dedicated fluorescence trinocular head with 50:50 light split, 4X, 10X, 40X and 100X infinity plan achromatic objectives, B1 LED fluorescence module, Köhler condenser and adjustable 3W LED transmitted illumination. |
The AUC-244FB-LED provides binocular observation. The AUC-244FT-LED incorporates a dedicated fluorescence trinocular head with a fixed 50:50 eyepiece-to-imaging-port light split. Camera and C-mount adapter are optional.
Key Features
Infinity Colour-Corrected Optics
Produces sharp, bright and comfortable images across the field of view.
B1 LED Fluorescence
Standard B1 band-pass fluorescence module with adjustable excitation intensity.
Brightfield and Fluorescence
A convenient control allows the illumination path to be changed between brightfield and fluorescence observation.
22mm Wide Field of View
High-eyepoint PL10X/22mm plan eyepieces provide a spacious viewing field and adjustable dioptre.
Köhler Illumination
Supports accurately aligned transmitted illumination and controlled specimen contrast.
Expandable Fluorescence System
Optional fluorescence modules and semi-apochromatic fluorescence objectives support additional applications.
Technical Specifications
| Optical system | Infinity colour-corrected optical system with 45mm parfocal distance |
|---|---|
| Binocular viewing head | Seidentopf binocular head, 30° inclined, 360° rotatable, with 50-75mm interpupillary adjustment |
| Trinocular viewing head | Dedicated fluorescence Seidentopf trinocular head, 30° inclined, 360° rotatable, with 50-75mm interpupillary adjustment and fixed 50:50 light split |
| Eyepieces | High-eyepoint PL10X/22mm plan eyepieces with ±5 dioptre adjustment |
| Objectives | 4X, 10X, 40X spring-loaded and 100X spring-loaded oil-immersion infinity plan achromatic objectives |
| Magnification range | 40X to 1000X with supplied optics |
| Nosepiece | Reversed quadruple nosepiece |
| Stage | Double-layer mechanical stage, 150mm × 140mm, with 76mm × 50mm movement, double slide holder and 0.1mm accuracy |
| Condenser | NA 1.25 Köhler illumination condenser with phase contrast and darkfield insert slot |
| Focusing | Low-position coaxial focusing system with 30mm range, upper limit, tension adjustment and 0.002mm fine division |
| Transmitted illumination | Continuously adjustable, high-brightness 3W LED illumination |
| Fluorescence illumination | Standard B1 band-pass LED fluorescence module with intensity adjustment and brightfield/fluorescence control |
| Fluorescence power supply | 6V/2A DC external transformer |
| Transmitted power supply | 100-240V AC, 50/60Hz |
Optional Fluorescence Modules
The standard B1 LED fluorescence module can be supplemented or replaced with optional modules for other applications.
- G1: optional green-excitation fluorescence module
- UV2: optional ultraviolet long-pass fluorescence module
- B4: optional LED fluorescence module dedicated to tuberculosis examination
- Additional modules: other fluorescence configurations may be available for specific clinical applications
Only the B1 LED fluorescence module is included in the standard configuration.
Additional Optional Equipment
Semi-apochromatic fluorescence objectives
Phase contrast objectives and insert plates
Darkfield insert plate
Simple polarising equipment
Eyepiece measurement accessories
Adjustable C-mount camera adapters
Applications
The AUC-244F Series is suitable for biological, pathological, histological, bacteriological, immunological, pharmacological, genetic and fluorescence applications.
Biological research
Pathological examination
Clinical laboratories
Medical teaching
Universities and colleges
Research centres
Standard Equipment
- Binocular or dedicated fluorescence trinocular microscope body according to the selected model
- Pair of PL10X/22mm plan eyepieces with dioptre adjustment
- 4X infinity plan achromatic objective
- 10X infinity plan achromatic objective
- 40X spring-loaded infinity plan achromatic objective
- 100X spring-loaded oil-immersion infinity plan achromatic objective
- Reversed quadruple nosepiece
- Double-layer mechanical stage with double slide holder
- NA 1.25 Köhler illumination condenser
- Continuously adjustable 3W LED transmitted illumination
- B1 LED fluorescence module with intensity adjustment
3-Year Auckland Scientific Microscope Warranty
Both variants are supplied with a comprehensive 3-year Auckland Scientific microscope warranty, subject to the microscope receiving an annual service. Warranty conditions apply, and full warranty terms are available on request.
Why Choose Auckland Scientific?
- Specialist advice: Help selecting the appropriate fluorescence system and accessories.
- Installation and commissioning: Professional setup services are available.
- User training: Practical brightfield, fluorescence and imaging training can be provided.
- Service and maintenance: Preventative servicing and breakdown support are available.
- UK-based support: Friendly assistance from an experienced scientific equipment specialist.
