Advanced Calcium and Ratiometric Imaging
CoolLED pE-800fura
Eight independently controllable LED channels with dedicated 340 nm and 380 nm excitation, sub-7-microsecond switching and advanced automation.
Comprehensive illumination for calcium imaging and beyond
The CoolLED pE-800fura combines dedicated Fura-2 excitation with eight-channel flexibility for calcium measurements, ratiometric assays, pH monitoring, optogenetics, electrophysiology and everyday fluorescence microscopy.
True Eight-Channel Ratiometric Illumination

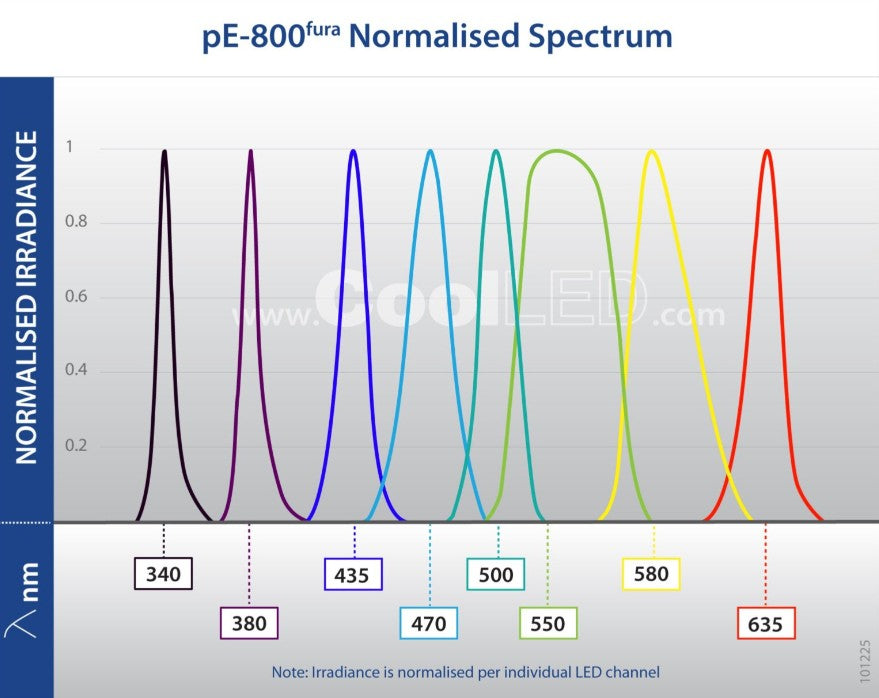

Eight powerful LED channels provide spectral coverage from approximately 340–635 nm. The system supports popular calcium indicators, pH indicators, opsins and routine fluorophores ranging from Fura-2 through to Cy5.
Each channel can be independently selected, triggered and controlled through USB, TTL or analogue inputs. Optical filters can be installed within the supplied eight-position excitation filter holder to optimise individual LED outputs for the selected indicators and fluorophores.
The pE-800fura offers a direct LED alternative to conventional monochromator-based systems, combining high-speed wavelength switching with the stability, longevity and lower power consumption of LED illumination.
Fura-2 Excitation
Dedicated 340 nm and 380 nm excitation channels and filters.
Eight LED Channels
Broad coverage for calcium, pH, optogenetics and fluorescence.
Sub-7 µs Switching
Rapid TTL triggering for precise ratio-pair acquisition.
Sequence Runner
Automated illumination sequences from a single TTL output.
Key Features
- Eight independently selectable and controllable LED channels
- Spectral coverage from approximately 340–635 nm
- Dedicated 340 nm and 380 nm channels for Fura-2 imaging
- 340 nm and 380 nm excitation filters supplied
- Supports calcium indicators, pH indicators, opsins and routine fluorophores
- Global and individual channel TTL triggering
- Industry-leading triggering speed of less than 7 microseconds
- High-speed ratiometric ratio-pair acquisition
- Eight-channel Sequence Runner automation
- Eight analogue inputs for dynamic irradiance control
- Fine irradiance adjustment from 0% to 2%
- Irradiance control in 1% steps from 2% to 100%

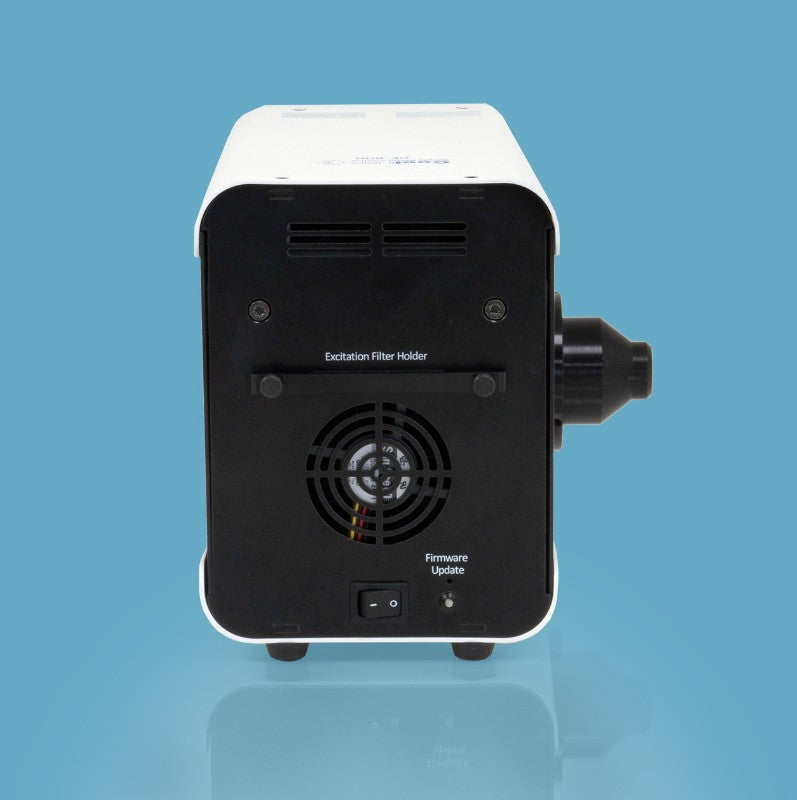

- Eight-position inline excitation filter holder supplied
- USB 2.0 and RS-232 computer connectivity
- CoolLED LightBridge graphical control interface
- UV-optimised optics for efficient Fura-2 excitation

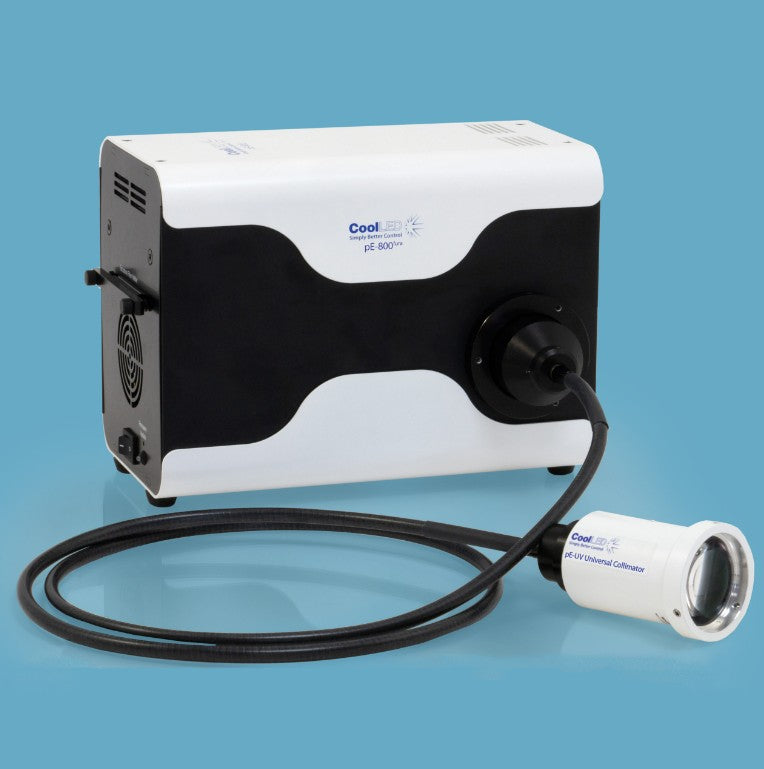

- Liquid-light-guide delivery for flexible installation
- Mercury-free, laser-free and energy-efficient operation
High-Speed Calcium Analysis
Ratiometric calcium measurements depend on accurate switching between paired excitation wavelengths. Individual TTL inputs provide switching in less than 7 microseconds, helping maximise the temporal accuracy of 340/380 nm Fura-2 ratio measurements.
Stable LED output helps reduce experimental noise and false positives. The improved signal-to-noise performance may also permit lower calcium-indicator concentrations, helping reduce dye toxicity and improve the viability of live samples.
Sequence Runner Automation
LED and irradiance sequences can be programmed through LightBridge or compatible imaging software and initiated using a single TTL output from a camera or other device. This combines flexible software configuration with sub-7-microsecond TTL performance.

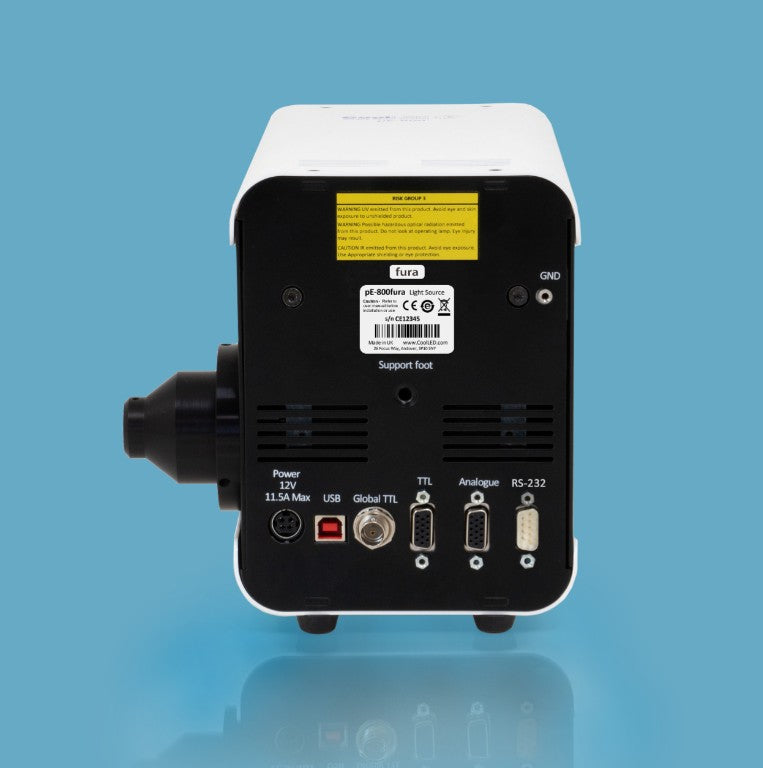

Control Options
| Control Method | Capability |
|---|---|
| LightBridge GUI | LED selection, real-time irradiance control, presets, start-up settings and Sequence Runner. |
| TTL | Eight individual channel inputs and one global camera-synchronisation input. |
| Analogue | Eight 0–10 V analogue inputs for high-speed external irradiance control. |
| Computer Connection | USB 2.0 and RS-232 connections for computer and software control. |
System Configuration
| Configuration | Part Number | Light Delivery |
|---|---|---|
| pE-800fura System | pE-800-FR-L-SYS-ZZ | For use with a 3 mm UV-compatible liquid light guide and optional UV universal collimator. |
UV compatibility must be confirmed
Standard optical components may not transmit 340 nm efficiently. Auckland Scientific will confirm the correct UV-compatible light guide, collimator and microscope adaptor.
What Is Included?
- CoolLED pE-800fura eight-channel LED light source
- Eight-position excitation filter holder
- Excitation filters for 340 nm and 380 nm
- Power supply
- USB cable
- UK power cable
The liquid light guide, UV universal collimator, microscope adaptor and application-specific optical filters are selected separately.
Optional Accessories & Control Peripherals
| Accessory | Part Number | Price |
|---|---|---|
| 1.5 m, 3 mm liquid light guide | pE-1906 | Price on Request |
| 3 m, 3 mm liquid light guide | pE-1908 | Price on Request |
| UV universal collimator with customer-specified microscope adaptor | pE-340-FR-COLL-YYY | Price on Request |
| 15-pin male to nine BNC female breakout cable | pE-CABLE-9WBNC-FR | Price on Request |
| 15-pin male to nine SMB female breakout cable | pE-CABLE-9WSMB-FR | Price on Request |
| USB-TTL conversion kit with additional peripheral BNC | pE-6501-8-FR | Price on Request |
| USB-TTL kit when ordered with a pE-800fura system | pE-6501-8-FRS | Price on Request |
| Nikon communication cable for NiDAQ | pE-CABLE-15WHD2M | Price on Request |
Warranty & Extended Coverage
The pE-800fura is supplied with a three-year CoolLED manufacturer’s warranty. The 340 nm LED is warranted for 3,000 accumulated operating hours.
| Warranty Option | Part Number | Price |
|---|---|---|
| Extension to four years of total coverage | pE-800-FR-EXT-WRN-1 | Price on Request |
| Extension to five years of total coverage | pE-800-FR-EXT-WRN-2 | Price on Request |
Extended warranty coverage must be ordered with the illumination system.
Technical Specifications
| LED channels | Eight independently controllable channels |
|---|---|
| Spectral coverage | Approximately 340–635 nm |
| Triggering speed | Less than 7 microseconds |
| Light delivery | 3 mm UV-compatible liquid light guide |
| Power requirement | 100–240 V AC, 50/60 Hz |
| Maximum consumption | 127 W |
| Light-source dimensions | 173 × 247 × 174 mm; approximately 3.51 kg |
| Standard warranty | Three years; 340 nm LED limited to 3,000 accumulated hours |
Typical Applications
- Fura-2 ratiometric calcium imaging
- High-speed calcium measurements
- pH monitoring and ratiometric assays
- Live-cell and time-lapse imaging
- Multi-colour fluorescence microscopy
- Electrophysiology
- Optogenetics
- Automated fluorescence imaging
Brochures & Technical Resources
View the CoolLED pE-800fura brochure and supporting product information in the Auckland Scientific Technical Resource Centre.
View Brochure & Technical ResourcesExperienced Microscopy Support
Auckland Scientific brings over 21 years of microscopy sales and application experience. We provide knowledgeable support with calcium-imaging illumination, UV-compatible light delivery, microscope adaptors, optical filters, hardware triggering and imaging-software integration. Support is available from specification through to installation, commissioning, training and ongoing service.
Configuration & Integration Support
Please provide the microscope, camera, filters, imaging software and triggering requirements. Auckland Scientific will confirm the correct configuration.
Microscope, camera, liquid light guide, collimator and imaging equipment are not included unless expressly stated. Product appearance and specifications may be updated by the manufacturer without notice.
