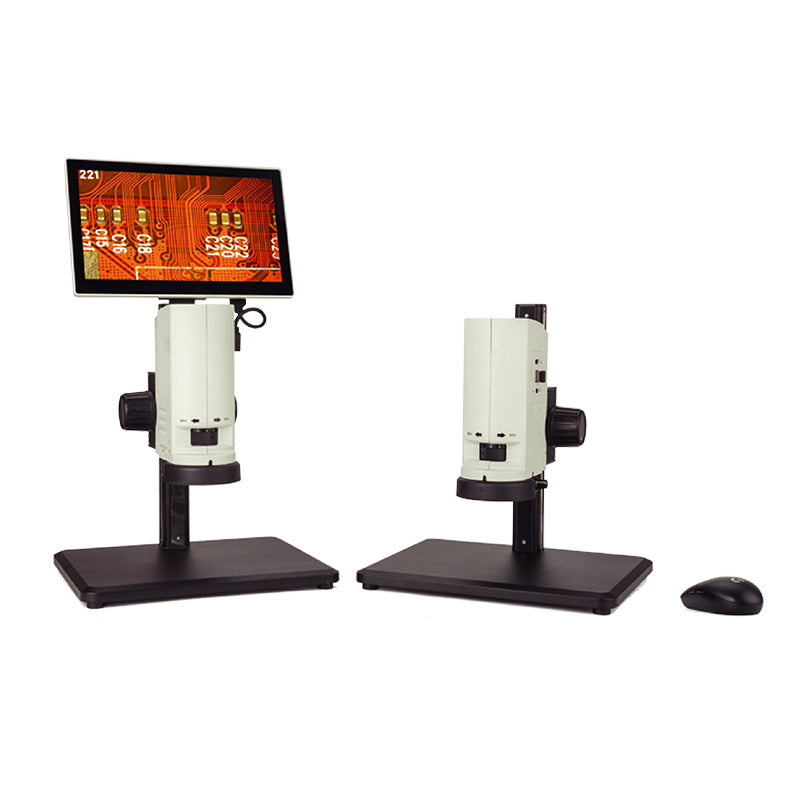

The digital microscope features a compact and beautiful exterior design, integrating continuous zoom optical module and high-definition camera. The camera and ring lamp are all powered by one power supply, avoiding the mess of mixed wires. The customers can freely choose with or without a screen according to the needs. Compared with traditional optical microscopes, with built-in camera, is easy to observe and operate, also available for digital magnification and data storage. We are committed to providing users with easy and comfortable operating experience by reducing the tiredness caused by long time operations.

Applied to industrial market, with better product reliability.

Microscope Body - AUC-DIG-380A

No 12" LCD

Digital lens body set, continuous zoom objective 0.7X-5X. Built-in camera module, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse

Microscope Body - AUC-DIG-380B

No 12" LCD - with measuring software

Digital lens body set, continuous zoom objective 0.7X-5X. Built-in camera module with measuring software, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse

Microscope Body - AUC-DIG-380C

with 12" LCD, no measuring software

Digital lens body set, 12-inch high-definition LCD (-5 ° ~15 ° tilting), resolution 1920X1080, with HDMI interface. Continuous zoom objective 0.7X-5X. Built-in camera module, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse

Microscope Body - AUC-DIG-380D

with 12" LCD, with measuring software

Digital lens body set, 12-inch high-definition LCD (-5 ° ~15 ° tilting), resolution 1920X1080, with HDMI interface. Continuous zoom objective 0.7X-5X. Built-in camera module with measuring software, sensor size: 1/2 “, COMS 2M, frame rate 60fps, external USB storage (up to 128G), with power indicator light and photography button. Output interface: HDMI, USB2.0, support for wireless mouse

1.Larger field of view

Maximizes the theoretical value of the imaging range of the internal optical system. The actual field of view increased by more than 33% compared to the AUC-DIG370A and AUC-DIG370B, resulting a larger field of view and wider observation range.

2.More reasonable working distance

The working distance of 0.5X main objective shortens to 110mm, reducing work tiredness caused by excessive working distance. The users can fully place their elbows on the workbench to optimize the operating feel.

3.High frame digital camera

Low image noise and high contrast ratio, presents smooth and un-delayed imaging under high resolution.

4.Data Storage

USB flesh disk (2.0), supporting up to 128G, real-time image storage, meeting the need of storage and recording.

Photograph type

Measure type

Plant Morphology

FPCB

Fiber

PCB
