Euromex E-Series and Z-Series Stereo Microscope Heads

Choose a binocular or trinocular optical head for a stereo microscope build. Listed configurations include their eyepieces; stands, illumination and optional accessories are separate unless expressly included.

Fixed magnification and zoom options
Binocular and trinocular heads
10x/23 mm wide-field eyepieces included
Auckland Scientific configuration support

Compare head configurations

Model Configuration
EE.1522 E-series binocular stereo head with revolving 1x/2x objectives; 10x / 20x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Field of view 23 mm / 11.5 mm; working distance 110 mm. Price-list status: WSL.
EE.1523 E-series binocular stereo head with revolving 1x/3x objectives; 10x / 30x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Field of view 23 mm / 7.7 mm; working distance 80 mm. Price-list status: BTO.

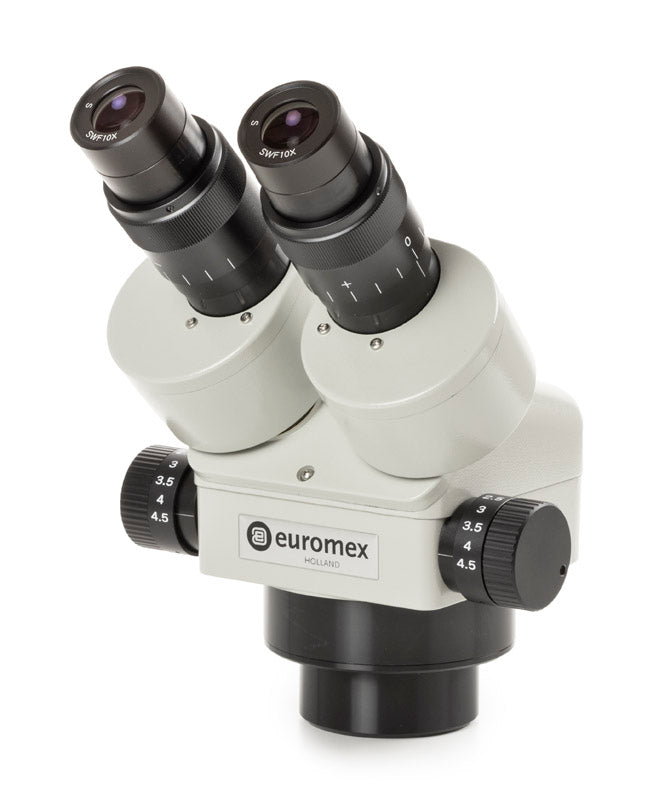

ZE.1624 Z-series binocular zoom stereo head, 0.7x–4.5x; 7x–45x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Zoom 0.7x–4.5x; field of view 32–5.1 mm; working distance 93 mm.
ZE.1624-D Z-series binocular zoom stereo head, 0.7x–4.5x, with click-stops; 7x–45x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Zoom 0.7x–4.5x; field of view 32–5.1 mm; working distance 93 mm. Price-list status: BTO.

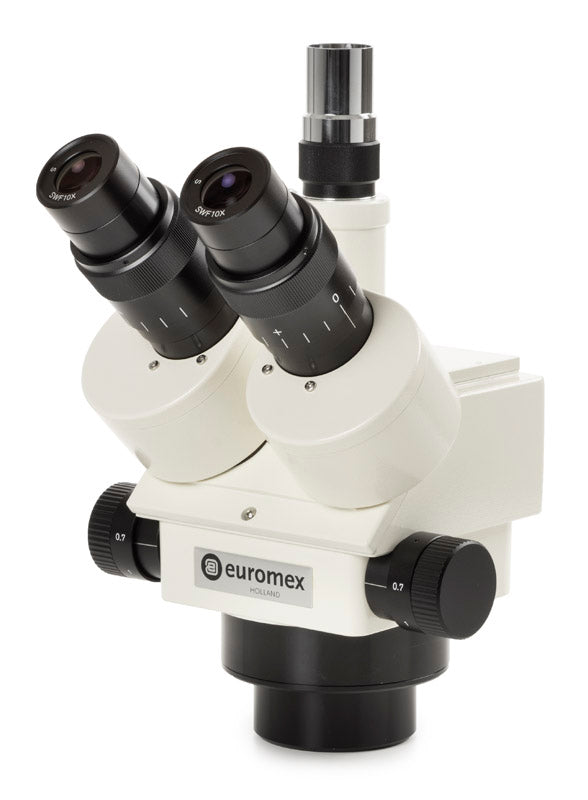

ZE.1654 Z-series trinocular zoom stereo head, 0.7x–4.5x; 7x–45x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Zoom 0.7x–4.5x; field of view 32–5.1 mm; working distance 93 mm. Price-list status: BTO.
ZE.1654-D Z-series trinocular zoom stereo head, 0.7x–4.5x, with click-stops; 7x–45x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Zoom 0.7x–4.5x; field of view 32–5.1 mm; working distance 93 mm. Price-list status: BTO.
ZE.1657 Z-series trinocular zoom stereo head, 0.7x–4.5x, photo tube remains viewable through both eyepieces; 7x–45x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Zoom 0.7x–4.5x; field of view 32–5.1 mm; working distance 93 mm. Price-list status: BTO.

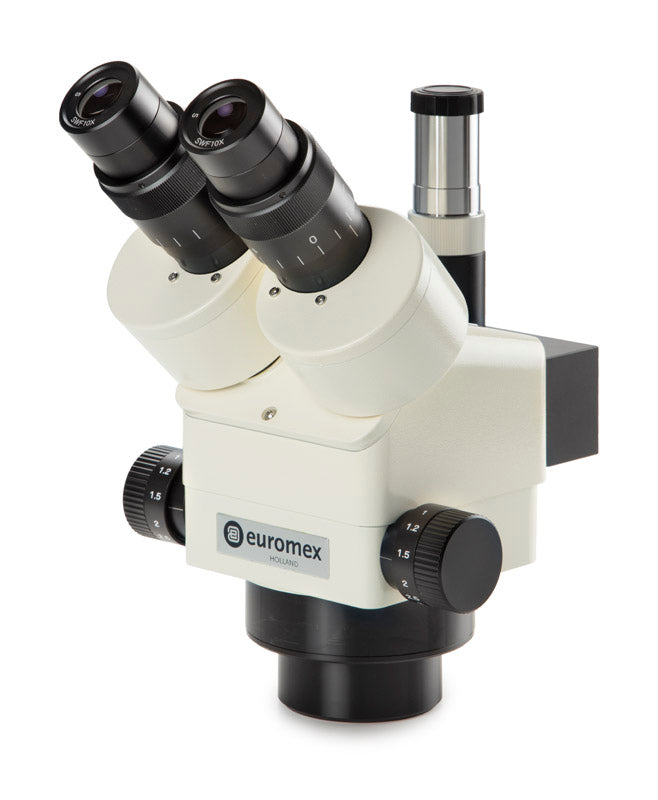

ZE.1671 ZE-series trinocular zoom stereo head, 1x–7x; 10x–70x total magnification with included SWF 10x/23 mm eyepieces; fixed 45° inclined tubes; interpupillary distance 55–75 mm; diopter adjustment on both tubes; supplied with dust cover and case. Zoom 1x–7x; field of view 23–3.29 mm; working distance 104 mm. Price-list status: BTO.

Important: These SKU prices are for the optical head configuration only. They do not represent a complete ready-to-use microscope. Select a compatible stand and any required illumination separately. Some variants are build-to-order (BTO); EE.1522 is marked while stock lasts (WSL) in the 15 February 2026 Euromex price list. Confirm availability and compatibility before ordering.

View Euromex product information · Auckland Scientific Technical Resource Centre

Need a complete stereo microscope configuration? Auckland Scientific can help match the head, stand, illumination and camera port to your work.

Ask about training and application support, installation and commissioning, and microscope servicing and repairs.

Contact Auckland Scientific

Descriptions and EUR prices are from the Euromex price list dated 15 February 2026 and product catalogue. Confirm product images, current availability, complete contents and stand compatibility against current manufacturer documentation before publication.
