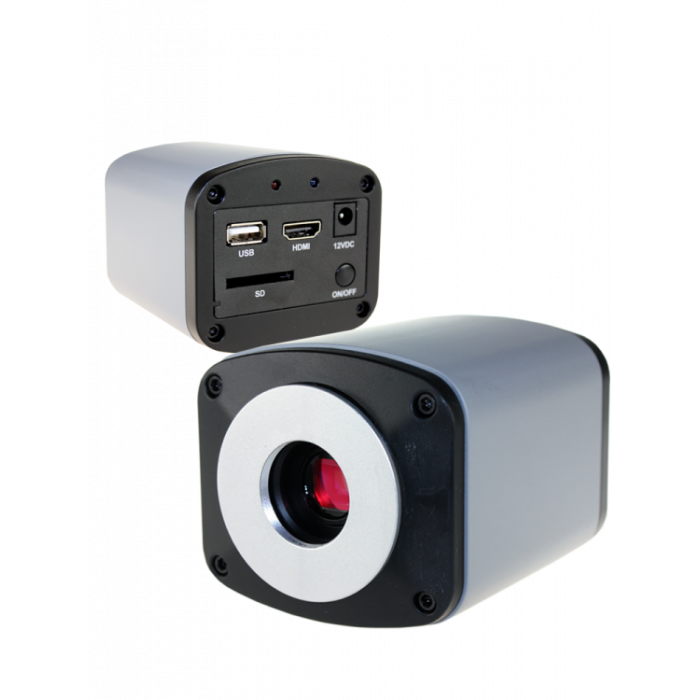

Euromex HD-Lite HDMI Microscope Camera

Choose a model

Image quality and operation

The 1/2.8-inch Sony CMOS sensor captures images at up to 2592 × 1944 pixels. HDMI video is 1080p; frame rate is up to 15 fps under optimal conditions. The camera uses 16-bit grayscale conversion and 24-bit colour rendering, with automatic or manual white balance. Standalone mode lets you connect directly to a TV, monitor or projector and control the camera using the supplied mouse.

Embedded controls include exposure and gain adjustments, white balance, RGB and colour controls, digital zoom, image flipping and grids. Save still images and video to the integrated SD card. A computer connection provides the ImageFocus Plus workflow; Euromex lists Windows support and Capture software for Mac.

Connections and supplied items

HDMI and USB-2 connections, C-mount interface and SD-card storage are standard. The VC.3031 package includes a 0.45× C-mount objective, SD card, USB mouse, USB cable, stereo-microscope conversion adapters for 30 mm and 30.5 mm tubes, a calibration slide and 12 V power supply. The VC.3031-HDS adds the 11.6-inch screen.

Euromex states that HD-Lite can be used with its microscopes and most Zeiss, Leica, Olympus and Nikon models when fitted with the appropriate adapter. Check your microscope’s camera port before ordering.

Specifications and included accessories can differ by selected model. Please check the model selector and ensure your microscope has a suitable camera port and C-mount adapter. Frame rates depend on resolution, output mode and operating conditions.
