Euromex NexiusZoom & NexiusZoom EVO Gemology Stereo Microscopes
NZ.1902-GEML — Standard, Binocular, 1 W LED
£1,252.00
Sale price
£1,252.00
Regular price
£1,565.00
Skip to product information
Euromex NexiusZoom & NexiusZoom EVO Gemology Stereo Microscopes
£1,252.00
Sale price
£1,252.00
Regular price
£1,565.00
Euromex NexiusZoom for Gemology
Euromex NexiusZoom & NexiusZoom EVO Gemology Stereo Microscopes
Dedicated gemological stereo microscope systems with a backwards-tilting stand for darkfield and brightfield examination of gemstones.
Weekly Deal
Special Limited-Time Promotion
Promotional pricing on selected Euromex NexiusZoom Gemology systems
Choose from standard NexiusZoom and NexiusZoom EVO optics, binocular or trinocular heads, and either 1 W LED or 7 W fluorescent incident illumination.
Offer valid until 31 December 2026, subject to availability.
Designed for gemstone examination
The specialised Euromex gemology stand incorporates a 0–45° backwards tilting arm and is designed for both darkfield and brightfield work. The transmitted system uses a 30 W halogen illuminator directed towards the specimen at oblique angles for darkfield observation. Incident illumination is supplied as either a 1 W LED or 7 W fluorescent system, depending on the selected model.
Gemology stand

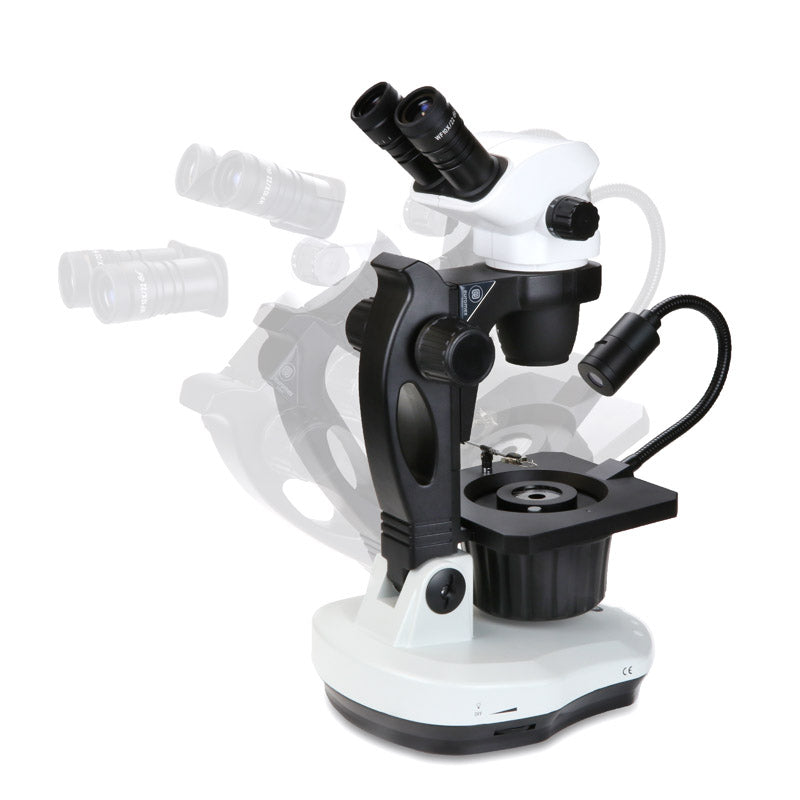

0–45° backwards tilting arm
0–45° backwards tilting arm
Darkfield
30 W halogen transmitted illumination
30 W halogen transmitted illumination
Brightfield
1 W LED or 7 W fluorescent incident illumination
1 W LED or 7 W fluorescent incident illumination
Working distance
110 mm with standard objective
110 mm with standard objective
Choose standard NexiusZoom or NexiusZoom EVO
| Range | Zoom objective | Supplied eyepieces | Standard magnification |
|---|---|---|---|
| NexiusZoom | 0.67x–4.5x, 1:6.7 zoom ratio | HWF 10x/22 mm | 6.7x–45x |
| NexiusZoom EVO | 0.65x–5.5x, 1:8.4 zoom ratio with click-stops | HWF 10x/23 mm | 6.5x–55x |
Optics and mechanical features
- Binocular or trinocular head with 45° inclined tubes
- ±5 diopter adjustment on both eyepiece tubes
- Interpupillary distance adjustable from 54 to 75 mm
- 110 mm working distance with the standard objective
- Flat darkfield stage with clamp object holder and iris diaphragm
- Clamp object holder can be fitted on the left or right side
- Both incident and transmitted illumination can be used simultaneously
- Auxiliary 0.75x, 1.5x and 2.0x lenses are available separately
Model guide

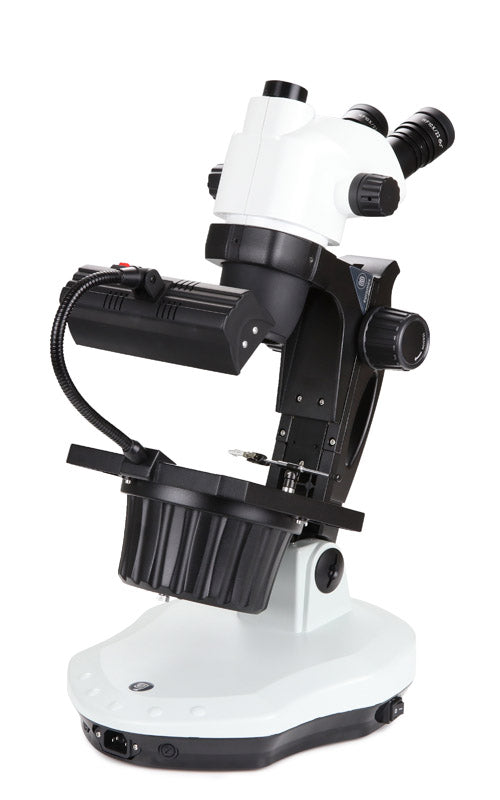

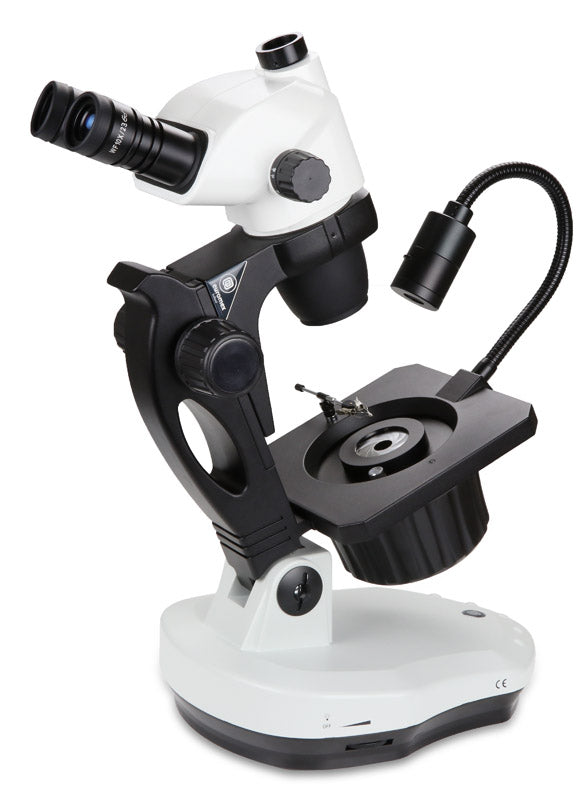

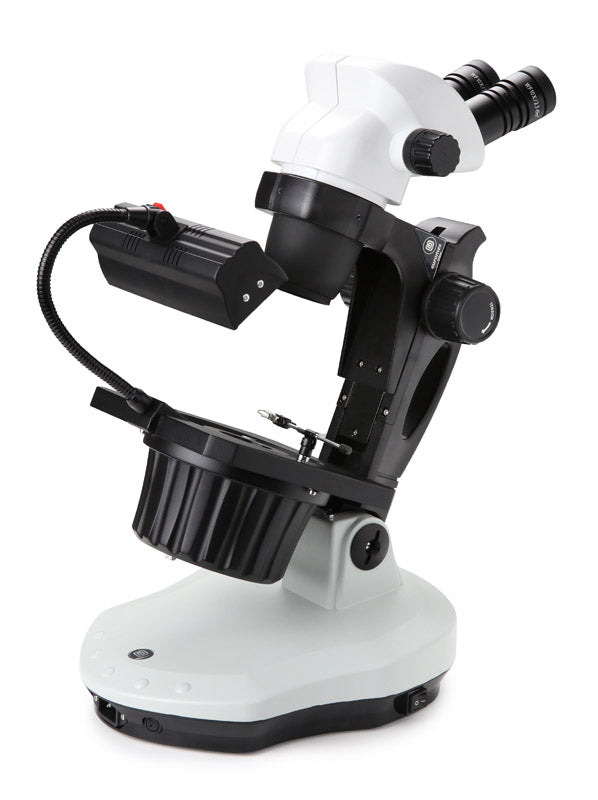

GEML models use 1 W LED incident illumination with adjustable intensity. GEMF models use 7 W fluorescent incident illumination. All eight configurations include the 30 W halogen transmitted darkfield system.
1902 / 1702 = binocular head. 1903 / 1703 = trinocular head. 190x = standard NexiusZoom optics. 170x = NexiusZoom EVO optics.
Technical information
View the Euromex NexiusZoom Gemology product datasheet
View the Euromex NexiusZoom brochure · Auckland Scientific Euromex Technical Resource Centre
Product advice and support
Auckland Scientific is an authorised Euromex reseller and service centre. We can help you choose between standard and EVO optics, binocular or trinocular viewing and the most suitable illumination for your gemological application.
We also provide microscope servicing, calibration, training and application support.
Contact Auckland Scientific for advice or a quotationPromotional pricing applies to selected models and is subject to availability. Product specifications are based on current Euromex documentation and may change without notice.
