Hellma Type 104 Precision Quartz Cells
High-precision Hellma cells for UV/Vis and selected fluorescence measurements, available in micro, semi-micro and extended-range configurations. These reusable precision cells are thermally bonded rather than glued for excellent chemical and temperature resistance.
Choose the correct configuration
Select the required cell by sample volume, optical material, path length and measurement type. If you are unsure which cell is suitable for your spectrophotometer or application, Auckland Scientific can help.
Select the required cell by sample volume, optical material, path length and measurement type. If you are unsure which cell is suitable for your spectrophotometer or application, Auckland Scientific can help.
Key Features
- Hellma precision cell family for absorption and fluorescence measurements
- High-performance quartz options covering 200–2500 nm
- Extended-range quartz option covering 200–3500 nm
- Micro and semi-micro sample volumes available
- Precision path length and parallelism for reproducible measurements
- Thermally bonded construction with no adhesive in the optical cell body
- Suitable for common spectrophotometers
- RoHS and REACH compliant according to manufacturer information
- Manufactured in Germany
Available Configurations
| SKU | Type | Path Length | Volume | Wavelength |
|---|---|---|---|---|
| HL104-10-40 | Semi-Micro, QS | 10 mm | 1.4 mL | 200–2500 nm |

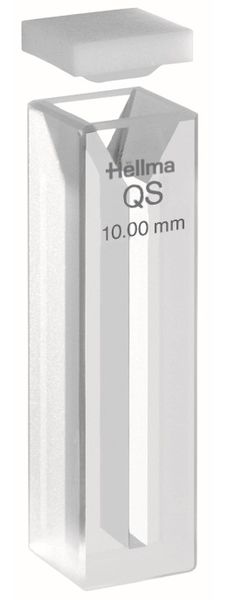

| HL104-002-10-40 | Micro, QS | 10 mm | 700 µL | 200–2500 nm |

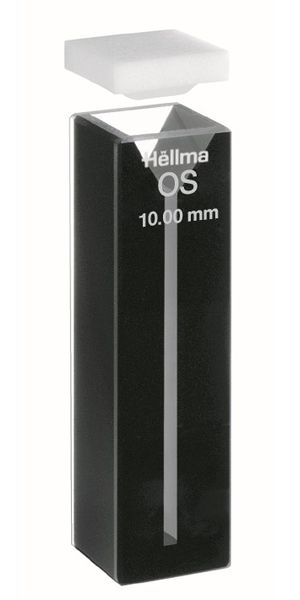

| HL104002B-10-40 | Micro, black glass body / QS windows | 10 mm | 700 µL | 200–2500 nm |

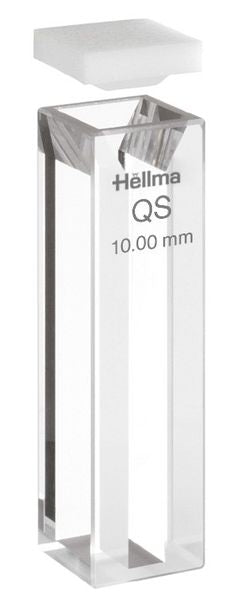

| HL104F-10-40 | Semi-Micro Fluorescence, 4 windows | 10 × 4 mm | 1.4 mL | 200–2500 nm |

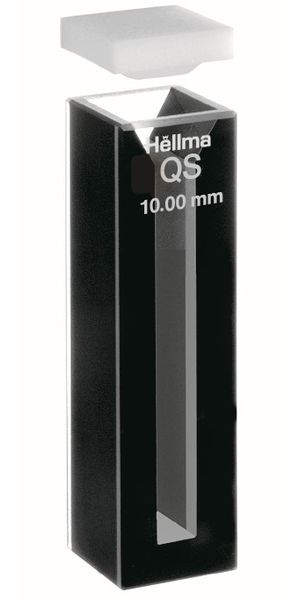

| HL104-B-10-40 | Semi-Micro, black glass body / QS windows | 10 mm | 1.4 mL | 200–2500 nm |

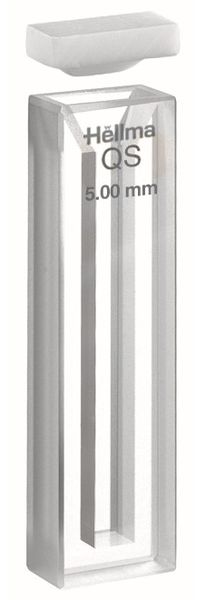

| HL104-5-40 | Semi-Micro, QS | 5 mm | 700 µL | 200–2500 nm |

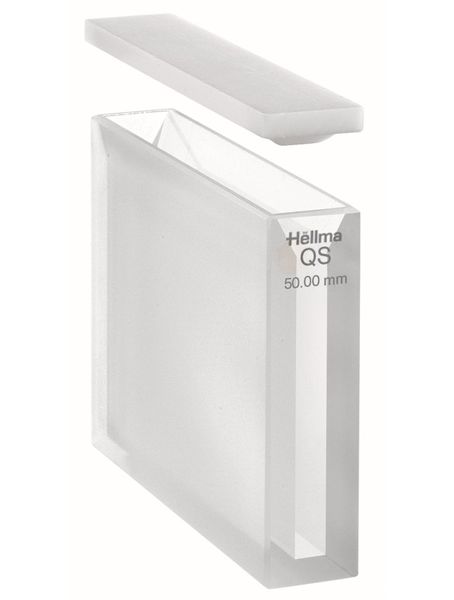

| HL104-50-40 | Semi-Micro, QS | 50 mm | 7 mL | 200–2500 nm |

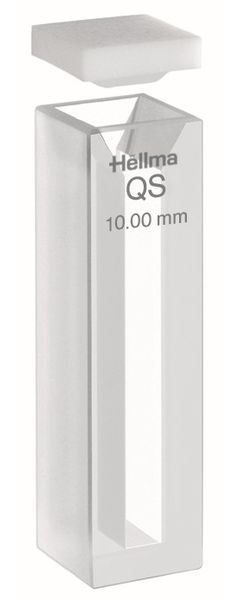

| HL104-10-K-40 | Matched Semi-Micro Cell Pair, QS | 10 mm | 1.4 mL each | 200–2500 nm |

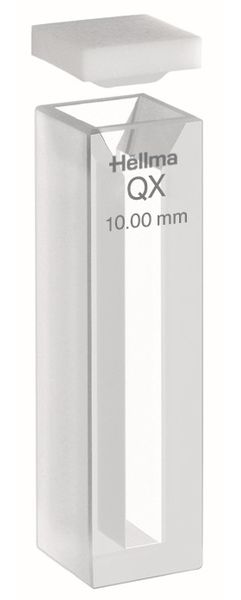

| HL104-10-46 | Semi-Micro, QX Extended Range | 10 mm | 1.4 mL | 200–3500 nm |

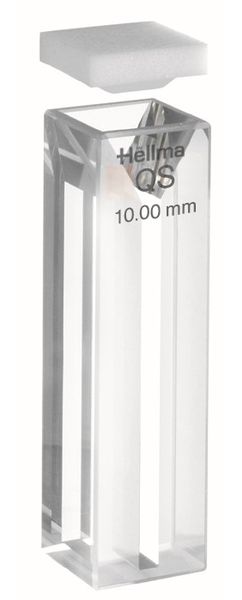

| HL104002F-10-40 | Micro Fluorescence, 4 windows | 10 × 2 mm | 700 µL | 200–2500 nm |
Applications
- UV/Vis absorption spectroscopy
- UV/Vis/NIR measurements with the QX extended-range option
- Fluorescence spectroscopy with four-window configurations
- Low-volume sample measurement
- Routine laboratory and analytical spectroscopy
Need help choosing the correct cell?
Compatibility depends on the required path length, sample volume, wavelength range and instrument cell holder. Contact Auckland Scientific for advice.
Compatibility depends on the required path length, sample volume, wavelength range and instrument cell holder. Contact Auckland Scientific for advice.
