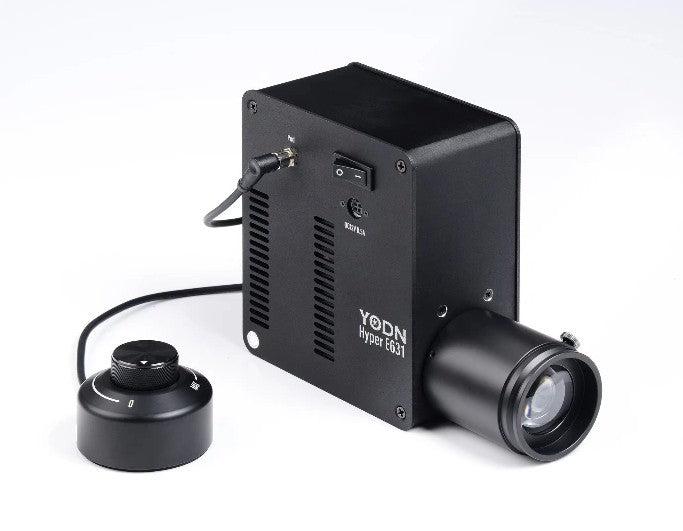

Hyper E631 LED Fluorescence Light Source

Compact three-channel LED excitation for routine fluorescence microscopy

The Hyper E631 is a compact, direct-coupled LED illuminator for fluorescence microscopes. Its three excitation channels cover commonly used blue, green and ultraviolet excitation bands, making it a straightforward option for routine fluorescence imaging, teaching laboratories and microscope upgrades.

3

LED channels

350–600 nm

Effective wavelength range

Direct

Microscope coupling

At a glance: Select the configuration according to your microscope’s optical interface, fluorescence channels and application. Excitation requires compatible microscope filters and fluorophores.

Features and system integration

Three-channel excitation

The E631 provides LED excitation peaks at 365 nm, 460 nm and 560 nm. This channel set supports common fluorescence workflows across ultraviolet, blue and green excitation bands. Select compatible filter cubes and fluorophores for the application; the light source does not replace the microscope’s excitation and emission filters.

Compact direct integration

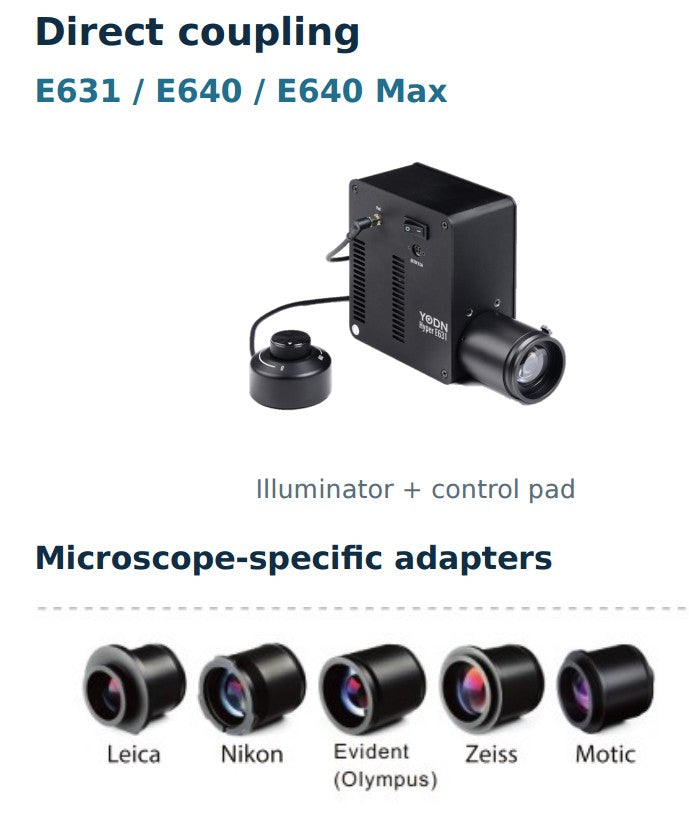

Direct coupling provides a compact illumination arrangement at the microscope. Before ordering, confirm the microscope’s illumination port and optical interface so the correct connection can be selected.

Long-life LED illumination

The Hyper LED range is specified with an expected LED life of up to 25,000 hours. Actual service life depends on operating conditions and use.

Technical specifications

Model	Hyper E631
Light source	LED
LED channels	3
LED excitation peaks	365 / 460 / 560 nm
Effective wavelength range	350–600 nm
Coupling	Direct
Expected LED life	Up to 25,000 hours

Typical applications

Routine fluorescence imaging
Teaching and demonstration laboratories
Upgrading compatible fluorescence microscopes

Check microscope compatibility

For a compatibility check, have your microscope make and model, illumination port details, fluorescence channels and filter-cube specifications available. We can help confirm whether the E631 configuration suits your setup.
