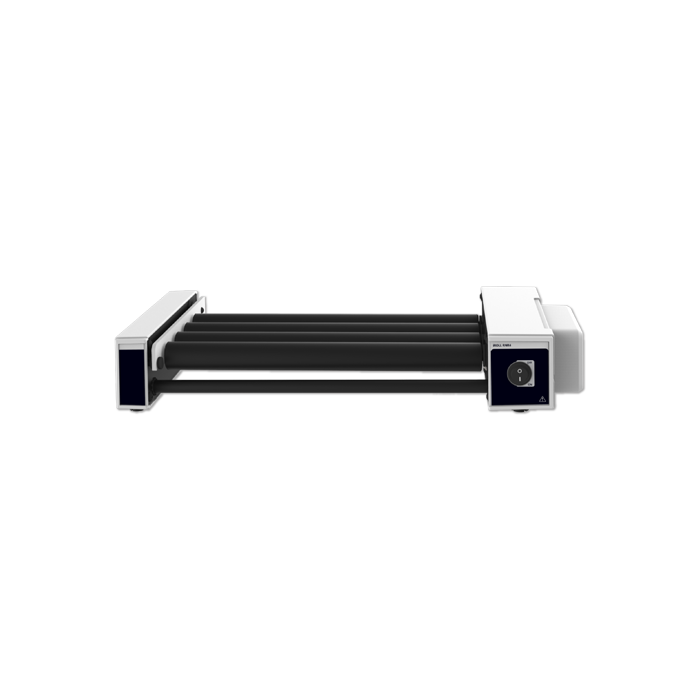

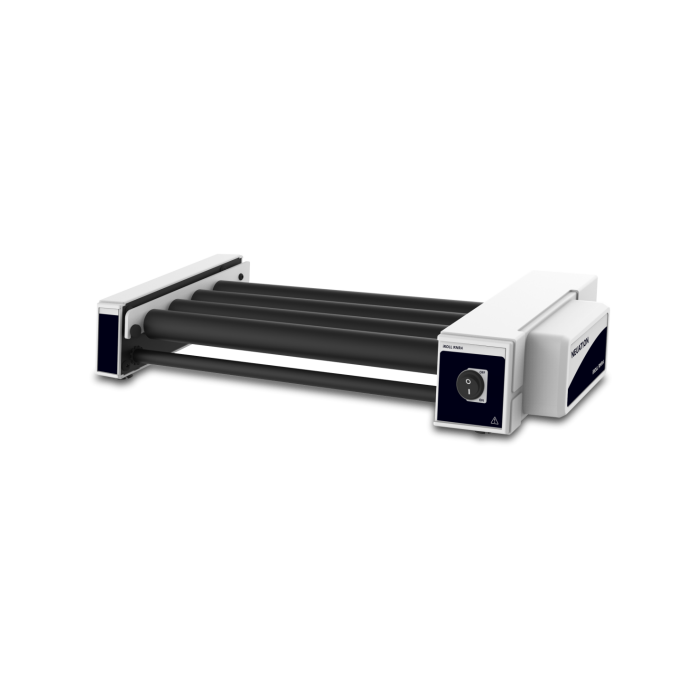

iRoll RnR4 Four-Roller Tube Mixer
£130.00
Sale price
£130.00
Regular price
Skip to product information
iRoll RnR4 Four-Roller Tube Mixer
£130.00
Sale price
£130.00
Regular price
↔
Gentle, uniform sample mixing
The iRoll RnR4 combines rolling and rocking movement to keep samples in continuous, gentle motion. This mixing action helps maintain sample homogeneity without the vigorous agitation associated with vortex mixers.
Its fixed 30 RPM operating speed makes the unit straightforward to use: load the tubes, switch the roller on and allow it to operate continuously for as long as required.
Rolling and Rocking Motion
Effective mixing without foaming
The rollers rotate while gently rocking samples through a ±3° angle. This produces smooth, consistent movement suited to sensitive samples and materials requiring controlled agitation.
30
Fixed RPM
A carefully selected fixed speed provides repeatable performance for routine tube-rolling applications.
Practical Laboratory Design
Simple to operate and maintain
Adjustable spacing
Roller positions can be adjusted to accommodate tubes and bottles with different diameters.
Tool-free removal
Rollers can be removed and reinstalled without tools, making routine cleaning more convenient.
Easy sample loading
Tubes can be loaded and removed conveniently without complicated holders or locking mechanisms.
4
Removable rollers
±2 RPM
Speed accuracy
±3°
Rocking angle
1.5kg
Maximum load
Reliable Everyday Operation
Key features
AC synchronous motor
Delivers quiet and dependable operation for routine laboratory mixing.
Continuous operation
Infinite running mode supports extended mixing procedures without timer restrictions.
Adjustable roller spacing
Accepts a range of tube and bottle diameters within the permitted load capacity.
Compact footprint
Low-profile construction conserves valuable laboratory bench space.
Robust construction
Provides stable operation during continuous sample processing.
IP21 protection
Suitable for routine use in controlled indoor laboratory environments.
Typical applications
Ideal for samples that require gentle, continuous movement rather than high-speed agitation.
Blood-sample mixing
Clinical diagnostics
Viscous samples
Cell suspensions
Biological liquids
Reagent mixing
Sample resuspension
Technical Data
Specifications
| Model | iRoll RnR4 |
| Number of rollers | 4 |
| Nominal tube capacity | Up to 9 tubes, depending on tube diameter and spacing |
| Mixing motion | Rolling and rocking |
| Speed | Fixed at 30 RPM |
| Speed accuracy | ±2 RPM |
| Operating time | Continuous/infinite operation |
| Tilt angle | ±3° |
| Maximum load | 1.5kg |
| Motor type | AC synchronous motor |
| Roller dimensions | 330mm long × 30mm diameter |
| Overall dimensions | 475 × 210 × 80mm |
| Instrument weight | 2kg |
| Protection class | IP21 |
| UK power supply | 230VAC, 50Hz |
✓
Supplied configuration
iRoll RnR4 mixer
Main fixed-speed tube-roller unit
Main fixed-speed tube-roller unit
Four removable rollers
Adjustable positioning for different vessel sizes
Adjustable positioning for different vessel sizes
Power connection
UK-compatible power configuration
UK-compatible power configuration
Available accessories
| Catalogue number | Description |
|---|---|
| TR01-R1 | Replacement or additional roller attachment |
| TR01-A1 | Replacement power adaptor |
Is the iRoll RnR4 right for your laboratory?
Choose the iRoll RnR4 for straightforward fixed-speed tube rolling with continuous operation. For variable speed, timed operation, digital programming and a larger six-roller platform, consider the iRoll RnR6.
UK supply and technical support
Auckland Scientific supplies laboratory equipment and accessories throughout the UK. Please contact us if you need assistance confirming tube compatibility, loading capacity or the most appropriate roller mixer for your application.
Specifications are supplied for product-selection guidance and may be updated by the manufacturer without notice. Tube capacity depends on vessel diameter, roller spacing and total sample load. Ensure samples are evenly distributed and do not exceed the stated maximum load. Images are representative and supplied accessories may differ slightly according to the selected regional configuration.
