Microscope Eyepiece Reticules (Graticules)

NE5 Horizontal Scale 5mm/0.05mm

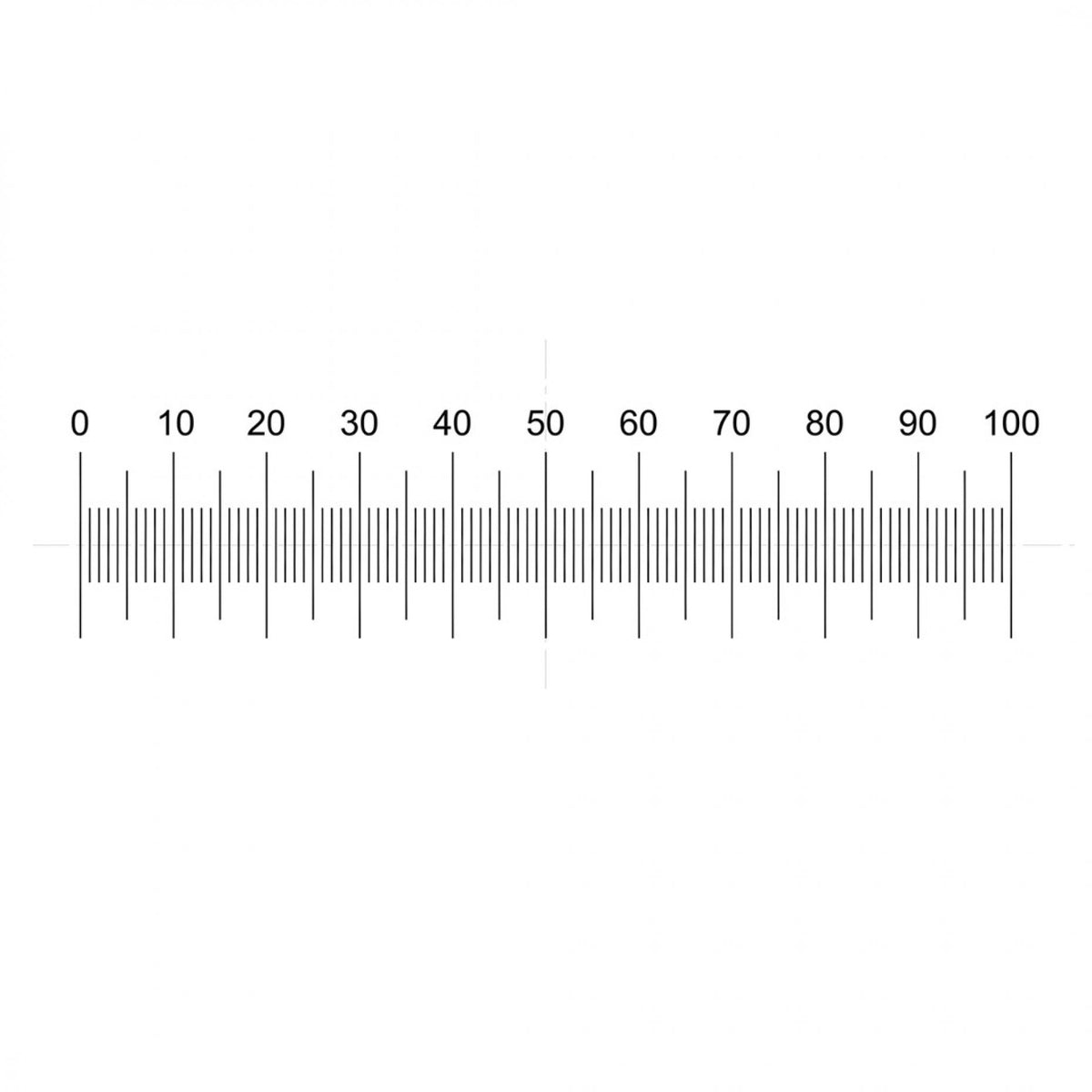

Eyepiece Reticle with 5mm Horizontal Micrometer Scale subdivided into 100 divisions of 0.05mm (500µm)

Technical Specification

Line Thickness
0.0055mm +/-0.0015mm

Glass Type and Thickness
Soda Lime 1.5mm thick

Scale Length Tolerance
+/-0.005mm

Diameter Tolerance
+0/-0.1mm

Divisional Marker Lengths
1mm, 0.79mm, 0.39mm

Orientation
Correct reading through glass
