Microscope Eyepiece Reticules (Graticules)

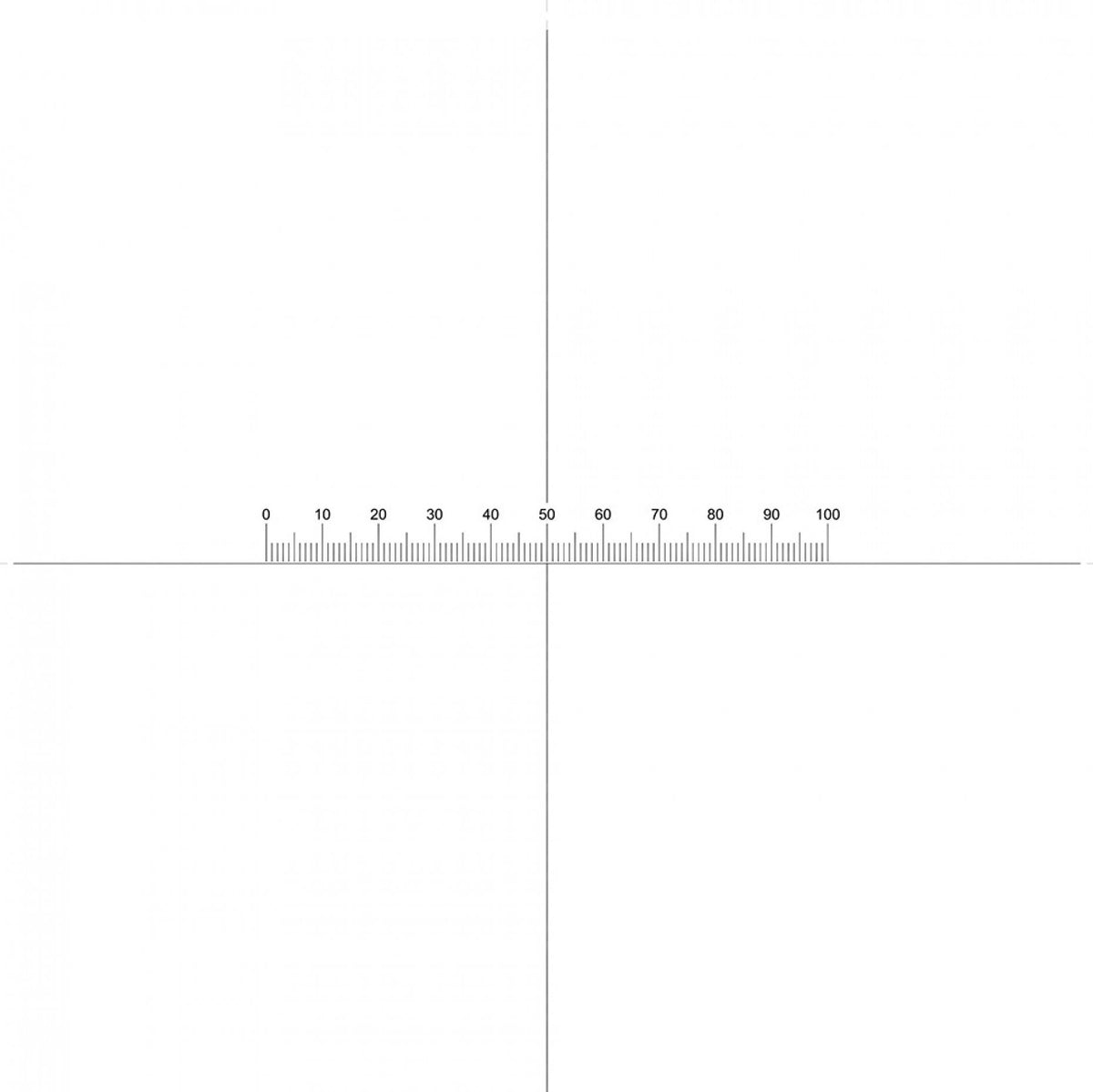

NE7 Horizontal Scale 10mm/0.1mm + Crossline

Eyepiece Reticle with 10mm Horizontal Micrometer Scale subdivided into 100 divisions of 0.1mm (100µm) with centered Crossline for alignment

Technical Specification

Line Thickness
0.010mm +/-0.003mm

Glass Type and Thickness
Soda Lime 1.5mm thick

Scale Length Tolerance
+/-0.005mm

Diameter Tolerance
+0/-0.1mm

Divisional Marker Lengths
0.675mm, 10.515mm, 0.330mm

Orientation
Correct reading through glass
