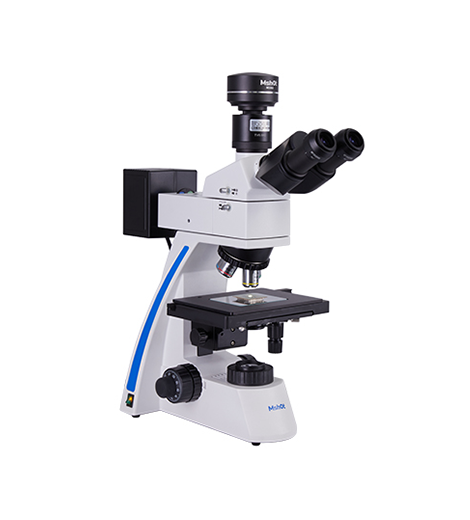

Mshot MJ31 Routine Upright Metallurgical Microscope

Routine upright metallurgical microscope with long-working-distance plan objectives, reflected/transmitted LED illumination and polarisation.

Limited-time offer: 10% off the standard GBP price shown. Prices exclude VAT.

Specification highlights

Optical system	Routine upright metallurgical microscope
Eyepiece / head	WF10X/22; 30° trinocular observation
Objectives	L Plan 5X/0.12, 10X/0.25, 20X/0.40 and 50X/0.55
Working distance	23.6 mm (5X), 17.7 mm (10X), 10.4 mm (20X), 7.0 mm (50X)
Stage	210 × 140 mm stage; travel approx. 75 × 50 mm
Illumination	Reflected and transmitted illumination with aperture/field control
Polarisation	Simple polariser/analyser capability
Imaging	1X C-mount standard; 0.75X/0.5X options

Typical applications

Semiconductors and circuit boards
Metal surfaces and coatings
Precision tools
Teaching and routine materials inspection

Options & configuration

Optional 100X long-WD objective and alternative camera adapters
Brightfield/darkfield upgrade is listed by MSHOT

Auckland Scientific support
Configuration advice, camera compatibility, installation, commissioning, training, service and application support are available. We recommend confirming the exact optical, fluorescence and camera configuration before ordering.

View the official MSHOT product information • Auckland Scientific Technical Resource Centre • Contact Auckland Scientific

Price is based on MSHOT's supplied 2026 marketing price list converted from USD to GBP using the rate applied on 2026-10-01; the displayed sale price includes a 10% limited-time discount. Prices exclude VAT. Delivery is charged separately. Shopify shipping uses an internal 50,000 g rate marker for the £65 shipping tier; this marker is not a claimed packed product weight. Specifications, accessories and availability may change and should be confirmed before order.
