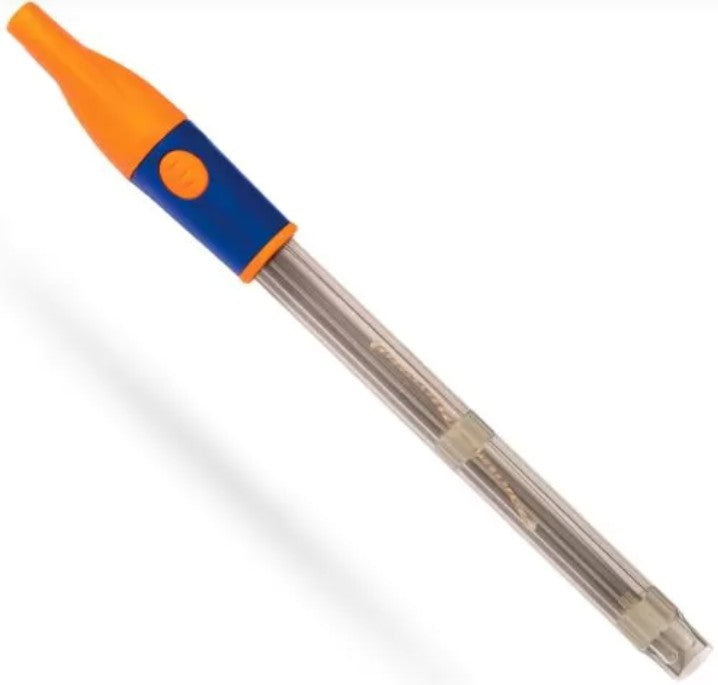

P20 3in1 General pH Electrode
Delivery Lead time: Enquire for confirmation.
Description
- 3in1 pH Electrode - pH, ATC and reference all integrated in one electrode.
- Fast response temperature sensor encased in glass at the same level as the pH and reference junction.
- This electrode is available with a variety of junction type options, enquire today with your requirements.
- Supplied with a fixed 1 meter cable and BNC connector. Multiple sensor connector types available depending on the instrument being used.
Recommended Applications:
Agricultural, Education, Field, Field Use, General Purpose Education Electrodes, General Purpose Field Applications
Specification
| Body Type |
Epoxy |
|---|---|
| pH Range |
0 – 14 |
| Cable Length |
1 metre |
| Combination |
Yes |
| Refillable |
No |
| Connector |
Instrument Specific |
| Temperature Range |
0 – 80°C |
| Shaft Length |
120mm ± 2mm |
| Shaft Diameter |
12mm |
| E O Point |
0 to ±25mV |
| ATC |
Can be fitted on receipt of required value |
| Response Time |
<30 secs 95% FSD |
| Junction Type |
Options Available: Ceramic, Pellon Paper, Teflon, Cotton Thread |
| Reference Type |
Ag/AgCl, Gel filled, Double Junction |
| Shelf Life |
12 months |
| Cleaning Solution |
Cleaning Solution – Order No. 791-15 |
| Storage Solution |
KCl Storage Solution – Order No. 791-65 |
