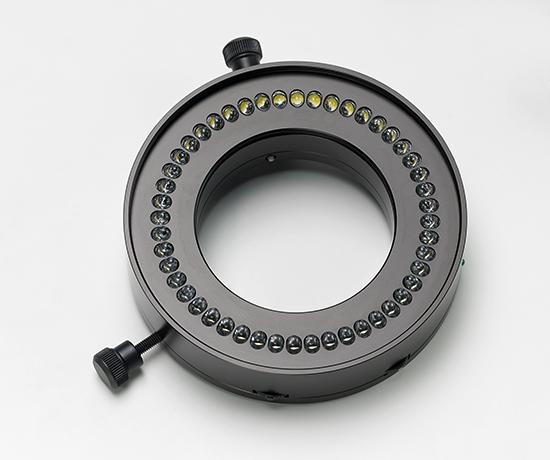

SCHOTT EasyLED Ring Light PLUS Ø66 mm – Segmentable LED Illumination for Stereo Microscopy
Powerful eight-segment LED ring illumination with selectable lighting patterns for enhanced contrast in stereo microscopy and inspection.
More Than a Conventional Ring Light
The SCHOTT EasyLED Ring Light PLUS 600.300 combines homogeneous LED ring illumination with eight controllable illumination segments.
The integrated controls allow different segment patterns to be selected and rotated around the specimen, changing the direction of illumination without physically repositioning the microscope or light source.
This makes the Ring Light PLUS particularly useful for revealing scratches, edges, surface relief and other directional features that may be difficult to see under conventional full-ring illumination.
Key Features
8 LED Segments
Select different illumination patterns to change specimen contrast.
Select different illumination patterns to change specimen contrast.
Up to 140,000 Lux
High-intensity illumination at a 65 mm working distance.
High-intensity illumination at a 65 mm working distance.
50–130 mm Working Distance
Broad operating range for stereo microscopy and inspection.
Broad operating range for stereo microscopy and inspection.
Ø66 mm Inner Diameter
Suitable for direct or adapted mounting to many stereo microscopes.
Suitable for direct or adapted mounting to many stereo microscopes.
Integrated Jog Dial
Intuitive control of brightness, illumination mode and segment rotation.
Intuitive control of brightness, illumination mode and segment rotation.
Approx. 5600 K
Daylight-type LED illumination for natural specimen appearance.
Daylight-type LED illumination for natural specimen appearance.
Technical Specifications
SCHOTT Part Number
600.300
600.300
Dimensions
Approx. Ø114 × 29 mm
Approx. Ø114 × 29 mm
Inner Diameter
Ø66 mm
Ø66 mm
Weight
Approx. 0.6 kg
Approx. 0.6 kg
Working Distance
50–130 mm
50–130 mm
Maximum Illuminance
140,000 lux at 65 mm
140,000 lux at 65 mm
Colour Temperature
Approx. 5600 K
Approx. 5600 K
LED Segments
8
8
Cooling
Convection
Convection
Power Consumption
Max. 6 VA
Max. 6 VA
Operating Supply
100–240 V AC, 50–60 Hz
100–240 V AC, 50–60 Hz
LED Lifetime
Approx. 50,000 hours
Approx. 50,000 hours
Segmentable Illumination
Conventional ring illumination provides light evenly from all directions. This is excellent for general observation but can flatten surface relief and reduce the visibility of some structures.
The EasyLED Ring Light PLUS divides the illumination into eight segments. Different segment patterns can be selected to introduce directional illumination and stronger shadows.
The selected illumination pattern can also be rotated around the specimen using the integrated control, allowing features to be viewed under several lighting directions without touching the sample.
What Can Segment Control Reveal?
Scratches
Directional illumination can make fine scratches much easier to detect.
Directional illumination can make fine scratches much easier to detect.
Surface Relief
Shadows help make small height differences and textures more visible.
Shadows help make small height differences and textures more visible.
Edges
Directional lighting can emphasise component boundaries and fine edges.
Directional lighting can emphasise component boundaries and fine edges.
Reflective Features
Changing illumination direction can help control troublesome reflections.
Changing illumination direction can help control troublesome reflections.
EasyLED Ring Light vs Ring Light PLUS
EasyLED Ring Light – 600.200
Full-ring homogeneous illumination for straightforward routine microscopy and imaging.
Maximum: 90,000 lux
Full-ring homogeneous illumination for straightforward routine microscopy and imaging.
Maximum: 90,000 lux
EasyLED Ring Light PLUS – 600.300
Eight-segment illumination for both homogeneous full-ring lighting and directional contrast techniques.
Maximum: 140,000 lux
Eight-segment illumination for both homogeneous full-ring lighting and directional contrast techniques.
Maximum: 140,000 lux
Microscope Mounting Adapters
The Ring Light PLUS has an Ø66 mm internal mounting diameter. Adapter options are available for commonly used microscope objective housings and threaded interfaces.
P/N 157.450
Ø66 mm ring light to Ø58 mm objective
Ø66 mm ring light to Ø58 mm objective
P/N 157.452
Ø66 mm ring light to Ø60 mm objective
Nikon No. 27102
Ø66 mm ring light to Ø60 mm objective
Nikon No. 27102
P/N 157.454
Ø66 mm ring light to M47 × 0.75 thread
Ø66 mm ring light to M47 × 0.75 thread
P/N 157.456
Ø66 mm ring light to M55 × 0.75 thread
Nikon No. 11704
Ø66 mm ring light to M55 × 0.75 thread
Nikon No. 11704
Select the Correct Mounting Configuration
Choose the standard Ring Light PLUS if your microscope accepts an Ø66 mm ring light directly, or select the relevant adapter configuration for your microscope.
If you are unsure of the correct adapter, send Auckland Scientific the microscope make and model and we can confirm compatibility before ordering.
Optional Ring Light Accessories
Protection Glass – 400.560
Protects the illumination surface in demanding working environments.
Protects the illumination surface in demanding working environments.
Diffuser – 400.570
Produces softer illumination and helps reduce harsh reflections.
Produces softer illumination and helps reduce harsh reflections.
Tubular Diffuser – 400.590
Creates diffuse illumination around three-dimensional specimens.
Creates diffuse illumination around three-dimensional specimens.
Polariser Set – 400.550
Helps reduce glare and reflections from shiny specimen surfaces.
Helps reduce glare and reflections from shiny specimen surfaces.
SCHOTT EasyLED System Diagram
The EasyLED range combines ring lights, directional spot illumination, transmitted-light stages and a wide choice of mounting and optical accessories.
Click the diagram to view full size.

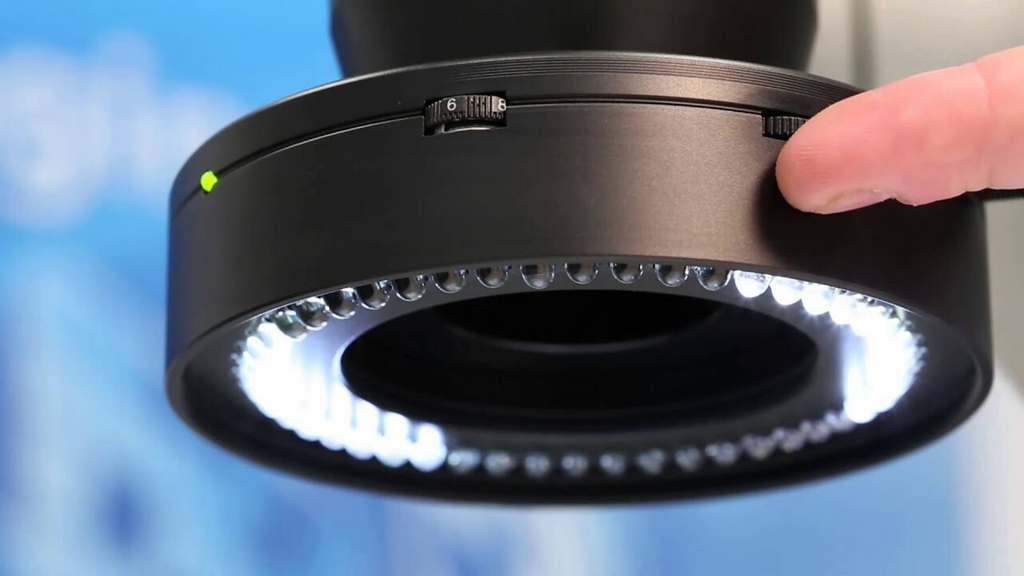

EasyLED Ring Light PLUS in Action
See how the SCHOTT EasyLED Ring Light PLUS uses selectable LED segments to change illumination direction and specimen contrast.
Typical Applications
Industrial Inspection
Change illumination direction to expose scratches and surface defects.
Change illumination direction to expose scratches and surface defects.
Electronics
High-intensity illumination for PCB, component and solder inspection.
High-intensity illumination for PCB, component and solder inspection.
Surface Analysis
Directional contrast helps reveal texture, relief and fine structures.
Directional contrast helps reveal texture, relief and fine structures.
Stereo Microscopy
Switch between homogeneous and directional illumination from one light.
Switch between homogeneous and directional illumination from one light.
Digital Imaging
Bright, stable LED illumination for microscope photography.
Bright, stable LED illumination for microscope photography.
Quality Control
Multiple contrast techniques for routine visual inspection.
Multiple contrast techniques for routine visual inspection.
Technical Resources
SCHOTT EasyLED brochures, manuals and microscopy illumination videos are available through the Auckland Scientific Technical Resource Centre.
Auckland Scientific – Illumination Support
Tell us your microscope make and model, objective diameter and application and we can help confirm the correct EasyLED Ring Light PLUS mounting adapter and optional diffuser or polarisation accessories.

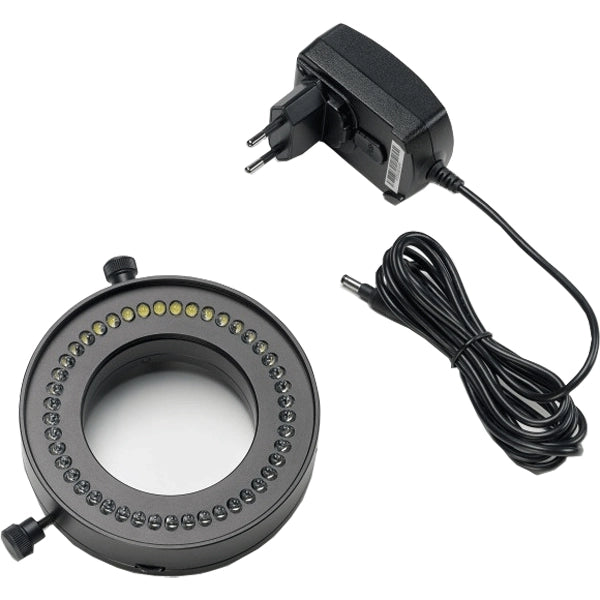

Power supply is included with the EasyLED Ring Light PLUS. Microscope adapters, protection glass, diffusers and polarisation accessories are supplied separately unless specifically included in the selected configuration. Product specifications are subject to manufacturer changes.
