SCHOTT VisiLED MC-D 1100 Digital LED Illumination Systems for Stereo Microscopy
Digitally controllable VisiLED ring-light systems with USB-C PC control for stereo microscopy, imaging and automated inspection.
Digital Control for SCHOTT VisiLED Illumination
The SCHOTT VisiLED MC-D 1100 combines the modular VisiLED illumination platform with a digital controller offering PC control via USB-C.
This makes it particularly useful where microscope illumination needs to form part of a digital imaging, documentation, quality-control or automated inspection workflow.
Auckland Scientific supplies these as complete UK systems comprising the selected VisiLED ring light, MC-D 1100 controller, controller power supply and UK mains lead.
Why Choose the MC-D 1100?
USB-C PC Control
Connect the illumination controller to a compatible computer for digital control.
Connect the illumination controller to a compatible computer for digital control.
Segmented Illumination
Compatible segmented VisiLED heads allow illumination direction to be changed electronically.
Compatible segmented VisiLED heads allow illumination direction to be changed electronically.
Digital Imaging
Well suited to microscope camera and image-acquisition workflows.
Well suited to microscope camera and image-acquisition workflows.
Repeatable Illumination
Digital control helps support consistent illumination conditions between inspections.
Digital control helps support consistent illumination conditions between inspections.
Complete UK System
VisiLED Light Head
Selected according to working distance and microscope configuration.
Selected according to working distance and microscope configuration.

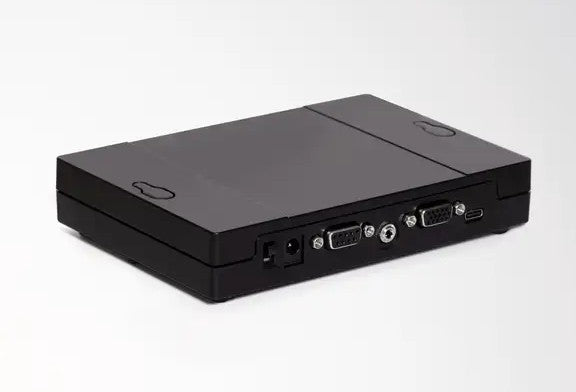

MC-D 1100 Controller
SCHOTT P/N 400.060
SCHOTT P/N 400.060
Power Supply
SCHOTT P/N 400.050
SCHOTT P/N 400.050
UK Power Cord
SCHOTT P/N 400.053
SCHOTT P/N 400.053
Available MC-D 1100 Systems
VisiLED Slim Ring Light – P/N 400.150
Low-profile ring illumination for microscope configurations where space around the objective is limited.
Inner diameter: Ø66 mm
Working distance: 20–90 mm
VisiLED S80-55 Brightfield – P/N 400.255
Segmented brightfield ring light offering controlled illumination for general stereo microscopy and inspection.
Inner diameter: Ø66 mm
Working distance: 50–135 mm
VisiLED S80-25 Brightfield – P/N 400.225
Segmented brightfield illumination optimised for shorter microscope working distances.
Inner diameter: Ø66 mm
Working distance: 25–55 mm
VisiLED S40-75 Brightfield – P/N 400.110
Brightfield ring light designed for applications requiring greater clearance between the objective and specimen.
Inner diameter: Ø66 mm
Working distance: 55–145 mm
VisiLED S80-65N-2 Brightfield – P/N 400.266
Larger-diameter segmented ring illumination for compatible stereo microscope objective systems.
Inner diameter: Ø81 mm
Working distance: 35–100 mm
USB-C PC Control
Integrate Illumination into Digital Workflows
Unlike the standard MC 1100, the MC-D 1100 provides a USB-C interface for PC control.
This can be useful where illumination settings need to be controlled alongside a microscope camera, imaging system or inspection process.
Digital control can also support more repeatable illumination conditions when different operators or samples need to be compared.
Control the Direction of Illumination
Compatible segmented VisiLED ring lights allow different areas of the ring to be activated, changing the direction from which light reaches the specimen.
Balanced Illumination
Use the complete ring for general brightfield observation.
Use the complete ring for general brightfield observation.
Directional Contrast
Selected segments can create shadows that reveal surface relief.
Selected segments can create shadows that reveal surface relief.
Surface Defects
Scratches and fine structures can become easier to identify.
Scratches and fine structures can become easier to identify.
Reflection Management
Changing illumination direction can help manage troublesome reflections.
Changing illumination direction can help manage troublesome reflections.
Optional VisiLED Accessories
Diffusers
Reduce hard reflections and create softer specimen illumination.
Reduce hard reflections and create softer specimen illumination.
Polarisation
Useful for reducing glare from shiny or reflective specimens.
Useful for reducing glare from shiny or reflective specimens.
Darkfield Accessories
Expand compatible VisiLED arrangements with low-angle illumination.
Expand compatible VisiLED arrangements with low-angle illumination.
Extension Cable
P/N 400.031 provides an additional 2.5 m between controller and light head.
P/N 400.031 provides an additional 2.5 m between controller and light head.
SCHOTT VisiLED Modular System
The VisiLED platform is modular, allowing controllers, illumination heads, transmitted-light stages, darkfield components and optical accessories to be combined according to the application.
Click the system diagram below to explore the available configurations.
Click the diagram to view full size.
VisiLED Segment Control in Action
See how SCHOTT VisiLED segmented illumination can change the direction of light around a specimen and alter the visibility of surface detail.
Typical Applications
Digital Microscopy
Controlled illumination alongside microscope cameras and imaging systems.
Controlled illumination alongside microscope cameras and imaging systems.
Industrial Inspection
Repeatable lighting for manufactured components and assemblies.
Repeatable lighting for manufactured components and assemblies.
Electronics
Controlled brightfield illumination for PCB and component inspection.
Controlled brightfield illumination for PCB and component inspection.
Surface Analysis
Segment control helps reveal scratches and directional surface features.
Segment control helps reveal scratches and directional surface features.
Quality Control
Digital control supports repeatable visual inspection conditions.
Digital control supports repeatable visual inspection conditions.
Documentation
Consistent specimen illumination for image capture and comparison.
Consistent specimen illumination for image capture and comparison.
Technical Resources
SCHOTT VisiLED brochures, manuals and illumination resources are available through the Auckland Scientific Technical Resource Centre.
Auckland Scientific – Illumination Support
Selecting the right VisiLED head depends on objective diameter, working distance, specimen surface and the type of contrast required.
Tell us your microscope model and application and we can help select the appropriate MC-D 1100 system, ring light and accessories.
Each complete system includes the selected VisiLED light head, MC-D 1100 controller, controller power supply and UK power cord. Computer, microscope, mounting brackets and optional optical accessories are supplied separately unless specifically included in the selected configuration. Product specifications are subject to manufacturer changes.
