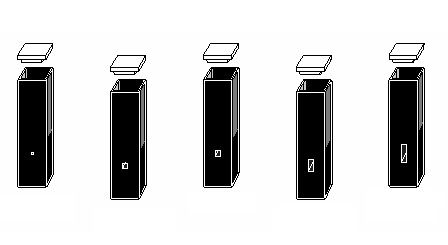

Starna Type 16 Sub-Micro UV Quartz Cells
Low-volume UV quartz spectrophotometer cells with a 2 mm-wide sample chamber and two clear optical windows. Available in 100 µL and 160 µL volumes with alternative Z-dimensions for instrument compatibility.
Check the Z-dimension before ordering
These cells are available with 8.5 mm or 15 mm Z-height options. Please confirm the optical centre height required by your spectrophotometer. Contact Auckland Scientific for advice if you are unsure.
These cells are available with 8.5 mm or 15 mm Z-height options. Please confirm the optical centre height required by your spectrophotometer. Contact Auckland Scientific for advice if you are unsure.
Key Features
- Sub-micro UV quartz cells
- 10 mm path length
- 170–2700 nm usable range
- 2 mm-wide sample chamber
- Two clear windows
- Open top with PTFE non-sealing cover and polyethylene liquid-tight cover
- 100 µL and 160 µL versions
- 8.5 mm and 15 mm Z-dimension options
Available Configurations
| SKU | Volume | Z-Dimension | Path Length |
|---|---|---|---|
| SN16.100/Q/10/Z8.5 | 100 µL | 8.5 mm | 10 mm |
| SN16.100/Q/10/Z15 | 100 µL | 15 mm | 10 mm |
| SN16.160/Q/10/Z8.5 | 160 µL | 8.5 mm | 10 mm |
| SN16.160/Q/10/Z15 | 160 µL | 15 mm | 10 mm |
Technical Document
View Starna Type 16 cell data sheet (PDF)
