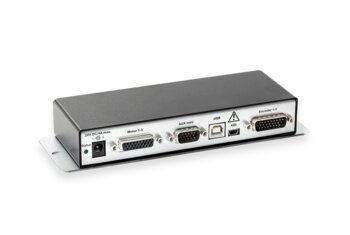

TANGO mini Controllers

TANGO mini is a compact high-resolution stepper controller for installations where controller space is limited.

Choose the controller by axis count, interfaces and supplied power arrangement. Digital joysticks, ERGODRIVE and motor/encoder cables must match the TANGO mini configuration.

Key product details

Controls up to three axes, with individual or simultaneous interpolated movement.
Provides 819,200 microsteps per motor revolution and supports sub-micrometre positioning.
Optional encoder and snapshot/trigger functions vary by model; selected configurations differ in included power supply.

Available variants and manufacturer SKUs

Variant	SKU
1 Axis (Z) — 00-3076-0000-1110	00-3076-0000-1110
2 Axes (XY) — 00-3076-0000-1112	00-3076-0000-1112
3 Axes (XYZ) — 00-3076-0000-1113	00-3076-0000-1113
1 Axis (Z) with encoder interface — 00-3076-0000-1130	00-3076-0000-1130
2 Axes (XY) with encoder interface — 00-3076-0000-1132	00-3076-0000-1132
3 Axes (XYZ) with encoder interface — 00-3076-0000-1133	00-3076-0000-1133
1 Axis (Z) with AUX/IO — 00-3076-0100-1110	00-3076-0100-1110
2 Axes (XY) with AUX/IO — 00-3076-0100-1112	00-3076-0100-1112
3 Axes (XYZ) with AUX/IO — 00-3076-0100-1113	00-3076-0100-1113
1 Axis (Z) with encoder interface and AUX/IO — 00-3076-0100-1130	00-3076-0100-1130
2 Axes (XY) with encoder interface and AUX/IO — 00-3076-0100-1132	00-3076-0100-1132
3 Axes (XYZ) with encoder interface and AUX/IO — 00-3076-0100-1133	00-3076-0100-1133

Need help confirming compatibility?
Contact Auckland Scientific with your microscope make and model, the selected configuration and the manufacturer order code.

Prices exclude VAT. Delivery charges are shown at checkout.
