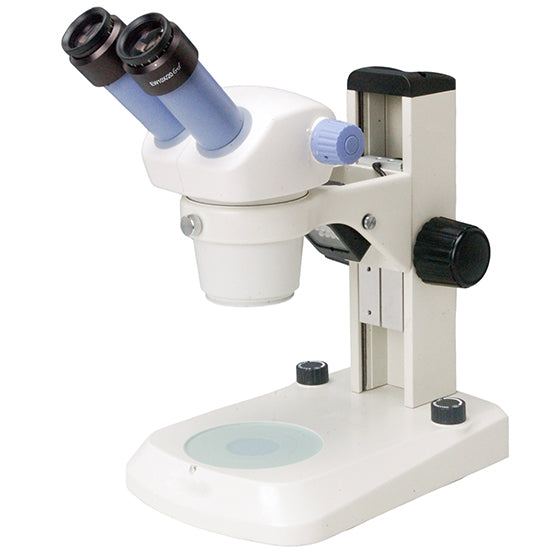

AUC- STE-320 Stereozoom Microscope Zoom Range 1×～4.5× Incident & Transmitted illumination (Education / Laboratory Grade)

Binocular Stereozoom with LED Stand

£445.00

AUC- STE-320 Stereozoom Microscope Zoom Range 1×～4.5× Incident & Transmitted illumination (Education / Laboratory Grade)

£445.00

Viewing Head Options Binocular Stereozoom with LED Stand Trinocular Stereozoom with LED Stand Binocular with Intergrated 5mp Digital Camera / LED Stand & Imaging Software Trinocular Stereozoom with 10.1" HD LCD Touchscreen Camera & LED Stand

Stereozoom Microscope

Zoom Range 1×～4.5×

Incident & Transmitted LED illumination

(Education / Laboratory Grade)

Microscope Options

AUC-STE-320B - Binocular Stereozoom Microscope

AUC-STE-320T - Trinocular Stereozoom Microscope

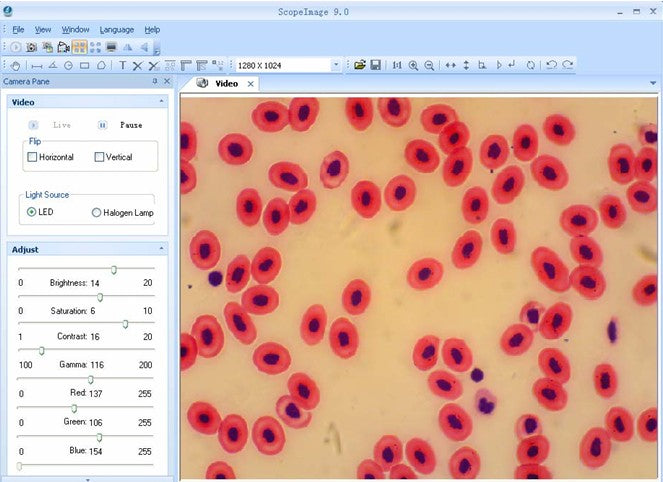

AUC-STE-320BD - Binocular Stereozoom with integrated 5MP Digital Camera & Image software

AUC-STE-320LCD- Trinocular Stereozoom with LCD 10.1" Touchscreen.

Supplied with:

Wide field eyepiece 10×/ 20mm

Zoom Range: 1×～4.5× Working Distance: 97mm

Incident Illumination 100V-240V/ LED

Transmitted Illumination 100V-240V/ LED

Video Attachment (0.5× C-mount) - Included with the AUC-STE-320T option.

10.1" Touchscreen LCD - Included with the AUC-STE-320LCD option

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. The AUC-STE-320 range of Stereo Zoom Microscopes on a post stand offers upright, un-reversed 3D images that are very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand the magnification range and working distances.

The AUC-STE-320 range is a very popular zoom stereo microscope. You can also choose a trinocular head option to add a digital camera with the appropriate camera adapter. In summary the range has a large range of magnifications, working distances, photo options, accessories and is very convenient to use.

Features

High quality, high function and excellent cost performance.
High resolution, Wide viewing field, Long working distance.
Ergonomic design, sharp image display, wide viewing field and easy to operate.
Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
Ideal instrument in academic, medical and industrial field.

The AUC-STE-320LCD option adopts all-in-one touch camera that integrates a HD 10.1inch LCD touch screen with HDMI output of 1920*1080 @ 60fps, and dual USB ports for USB drive and mouse. It has a Android 12 operation system and features measurement functions to include:

Straight line length,
Broken line length,
Distance between parallel line,
Point to line distance
Radius circle,
Three-point circle,
Concentric circle,
Center distance,
Polygon,
Rectangle,
Three-point angle,
Measurement data export

Application

The microscope can be used for circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories
