50.3MP Wi-Fi 6E Imaging Systems for Evident/Olympus SZX Stereo Microscopes

Convert a compatible SZX10 or SZX16 trinocular stereo microscope into a powerful, computer-free 50.3-megapixel digital imaging workstation.

Important: This listing is for a digital camera system only. The microscope shown in product imagery is not included. Auckland Scientific can supply suitable microscopes separately.

About “6G Wi-Fi”: The system uses modern Wi-Fi 6E technology, including access to the 6GHz wireless frequency band. It does not use a cellular 6G network or require a mobile-data connection.

Advanced PC-Free Digital Microscopy

These advanced camera systems connect to the trinocular camera port of a compatible Evident or Olympus SZX stereo microscope. Both solutions combine a large-format 50.3MP Sony CMOS sensor with an integrated Android operating system, Wi-Fi 6E connectivity and DisplayPort output.

The microscope’s binocular eyepieces remain available for normal observation while the camera provides high-resolution live viewing, image capture, video recording, measurement, depth-of-field fusion and image stitching.

Compatible Stereo Microscopes

Olympus SZX10 Olympus SZX16 Evident SZX10 Evident SZX16

Compatibility confirmation: The microscope must have a suitable trinocular camera port and C-mount adapter. Please provide the full model, serial number and photographs before ordering. Auckland Scientific will confirm the correct optical configuration.

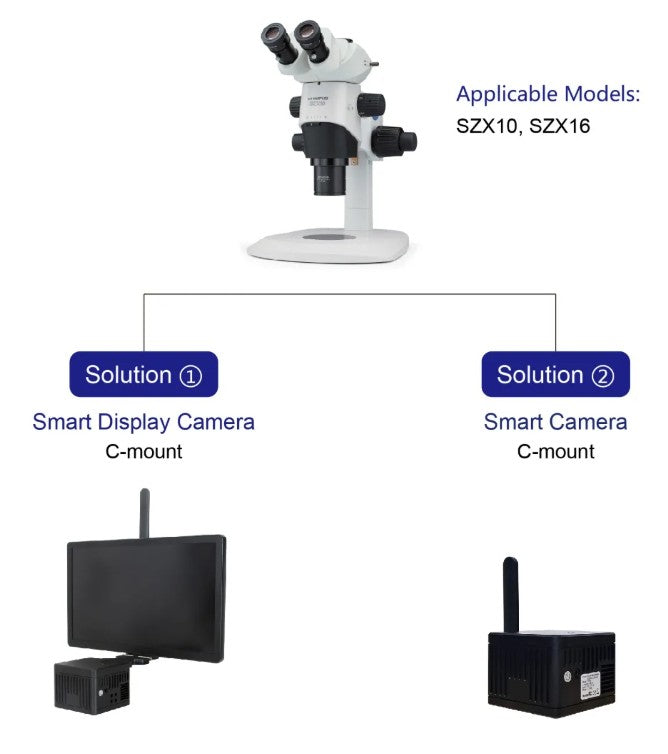

Choose Your Imaging Solution

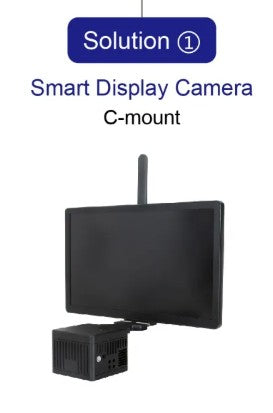

Solution 1

Integrated 15.6-Inch 4K Smart-Display Camera

A complete PC-free digital workstation combining the 50.3MP camera, Android operating system and a premium integrated 15.6-inch 4K display.

Best suited to: complete standalone installations requiring an integrated high-resolution display without a separate computer or monitor.

Camera model: JX200
Camera SKU: DJ6E-C-50
Resolution: 50.3 megapixels
Maximum image size: 8192 × 6144 pixels
Sensor: Sony IMX06A CMOS
Sensor format: 1/0.98 inch
Pixel size: 1.6µm × 1.6µm
Preview: 8128 × 6144 at 16fps
High-speed preview: 4096 × 3072 at 60fps
Integrated Android operating system
RK3588-S processor and 64GB internal storage
Wi-Fi 6E and DisplayPort output
Supports keyboard, mouse and USB storage
Image capture, video, measurement, stitching and depth-of-field fusion

Integrated Display

Screen size: 15.6 inches
Display resolution: 3840 × 2160
Colour gamut: 100% Adobe RGB / 135% sRGB
Brightness: 1000cd/m²
Contrast: 1500:1
Anti-glare surface and blue-light filtering

Price: £2,175 excluding VAT

Solution 2

Smart Camera for External Display

A compact PC-free 50.3MP smart camera for connection to a compatible monitor, television or projector through DisplayPort.

Best suited to: laboratories that already have a suitable display or require flexibility in display size and workstation layout.

Camera model: TE2000
Camera SKU: CJ6E-C-50
Resolution: 50.3 megapixels
Maximum image size: 8192 × 6144 pixels
Sensor: Sony IMX06A CMOS
Sensor format: 1/0.98 inch
Pixel size: 1.6µm × 1.6µm
Preview: 8128 × 6144 at 16fps
High-speed preview: 4096 × 3072 at 60fps
Integrated Android operating system
RK3588-S processor and 64GB internal storage
Wi-Fi 6E and DisplayPort output
Supports keyboard, mouse and USB storage
Image capture, video, measurement, stitching and depth-of-field fusion

External display: Required and available separately.

Price: £1,725 excluding VAT

Wi-Fi 6E Connectivity

IEEE 802.11ax Wi-Fi 6E wireless protocol
Supports 5GHz and 6GHz operating bands
Wireless live viewing and camera control
Compatible with suitable Windows, Android and iOS devices
Mobile devices can connect by scanning the camera’s QR code
Wireless internet access through a compatible Wi-Fi router

Solution Comparison

Feature	Solution 1	Solution 2
Camera	JX200	TE2000
Resolution	50.3MP	50.3MP
Wi-Fi	Wi-Fi 6E	Wi-Fi 6E
Computer required	No	No
Display included	15.6-inch 4K	No
Best for	Complete workstation	Existing display

C-mount adapter: A suitable microscope camera adapter is required. If the microscope does not already have a compatible adapter, Auckland Scientific can supply one separately after confirming the microscope configuration.

18-Month Warranty

Every Auckland Scientific digital microscope upgrade is supplied with an 18-month warranty. Extended warranty and support packages are also available.

Specialist UK Microscopy Support

Auckland Scientific is a UK-based microscopy and laboratory equipment specialist with 21 years of microscopy sales experience. We can confirm compatibility, help select the most appropriate solution and support installation, configuration and user training.
