50.3MP Wi-Fi 6E Imaging Systems for Nikon SMZ18 & SMZ25

Convert a compatible Nikon trinocular stereo microscope into a powerful, computer-free digital imaging workstation with 50.3MP capture and Wi-Fi 6E connectivity.

Important: This listing is for a digital camera system only. The Nikon microscope shown in product imagery is not included. Auckland Scientific can supply suitable microscopes separately.

About “6G Wi-Fi”: The system uses Wi-Fi 6E technology, including the 6GHz wireless frequency band. It is not a cellular 6G connection and does not require a mobile-data contract.

Advanced PC-Free Stereo-Microscope Imaging

These advanced cameras connect to the trinocular camera port of a Nikon SMZ18 or SMZ25. Both systems combine a large-format 50.3MP Sony CMOS sensor with an integrated Android operating system, Wi-Fi 6E connectivity and DisplayPort output.

The microscope’s binocular eyepieces remain available for normal observation while the camera provides high-resolution live viewing, image capture, video recording, measurement, image stitching and depth-of-field fusion.

Compatible Nikon Stereo Microscopes

Nikon SMZ18 Nikon SMZ25

Compatibility confirmation: The microscope must have a suitable trinocular camera port and C-mount adapter. Please provide the full model, serial number and photographs before ordering. Auckland Scientific will confirm the required optical configuration.

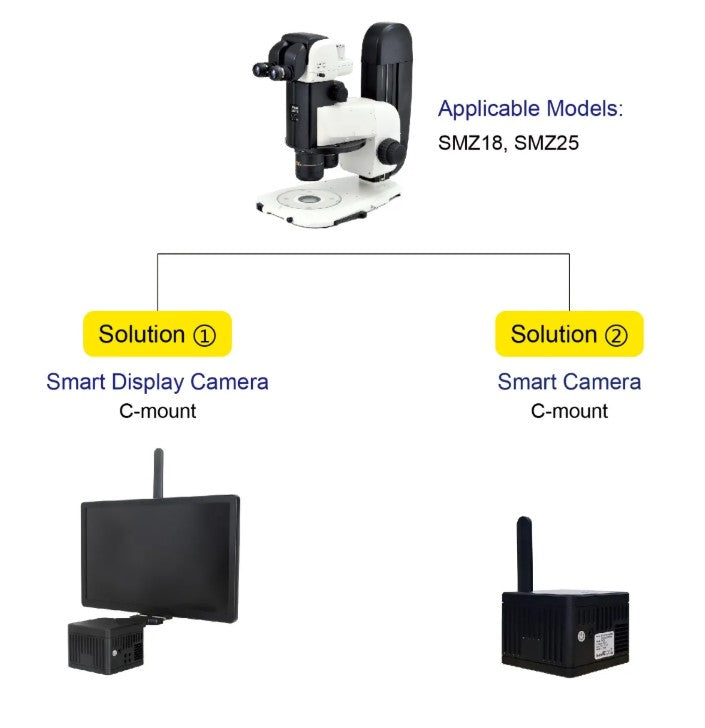

Choose Your Imaging Solution

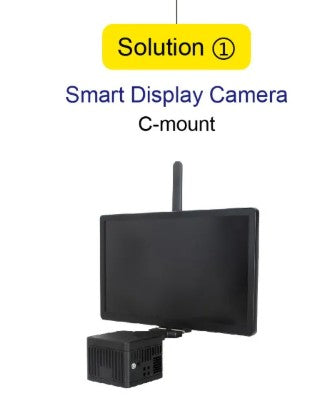

Solution 1

Integrated 15.6-Inch 4K Smart-Display Camera

A complete PC-free digital workstation combining the 50.3MP camera, Android operating system and an integrated professional 15.6-inch 4K display.

Best suited to: complete standalone installations requiring an integrated high-resolution display without a separate computer or monitor.

Camera model: JX200
SKU: DJ6E-C-50
Resolution: 50.3 megapixels
Maximum image size: 8192 × 6144 pixels
Sensor: Sony IMX06A CMOS
Sensor format: 1/0.98 inch
Pixel size: 1.6µm × 1.6µm
Preview: 8128 × 6144 at 16fps
High-speed preview: 4096 × 3072 at 60fps
ISO sensitivity: Equivalent to ISO 100–12800
Integrated Android operating system
RK3588-S processor and 64GB internal storage
Wi-Fi 6E and DisplayPort connectivity
Supports keyboard, mouse and USB storage
Image capture, video, measurement, stitching and depth-of-field fusion

Integrated Display

Screen size: 15.6 inches
Resolution: 3840 × 2160
Colour gamut: 100% Adobe RGB / 135% sRGB
Brightness: 1000cd/m²
Contrast: 1500:1
Viewing angle: 170° horizontal and vertical
Anti-glare surface and blue-light filtering

Camera-system price: £2,175 excluding VAT

Solution 2

Smart Camera for External Display

A compact PC-free 50.3MP smart camera for connection to a compatible monitor, television or projector through DisplayPort.

Best suited to: laboratories that already have a suitable display or require flexibility in display size and workstation layout.

Camera model: TE2000
SKU: CJ6E-C-50
Resolution: 50.3 megapixels
Maximum image size: 8192 × 6144 pixels
Sensor: Sony IMX06A CMOS
Sensor format: 1/0.98 inch
Pixel size: 1.6µm × 1.6µm
Preview: 8128 × 6144 at 16fps
High-speed preview: 4096 × 3072 at 60fps
ISO sensitivity: Equivalent to ISO 100–6400
Integrated Android operating system
RK3588-S processor and 64GB internal storage
Wi-Fi 6E and DisplayPort connectivity
Supports keyboard, mouse and USB storage
Image capture, video, measurement, stitching and depth-of-field fusion

External display: Required and available separately.

Camera-system price: £1,725 excluding VAT

Wi-Fi 6E Connectivity

IEEE 802.11ax Wi-Fi 6E wireless protocol
Supports 5GHz and 6GHz operating bands
Wireless live viewing and camera control
Compatible with suitable Windows, Android and iOS devices
Mobile devices can connect by scanning the camera’s QR code
Internet access through a compatible Wi-Fi router

Solution Comparison

Feature	Solution 1	Solution 2
Camera	JX200	TE2000
Resolution	50.3MP	50.3MP
Wi-Fi	Wi-Fi 6E	Wi-Fi 6E
Computer required	No	No
Display included	15.6-inch 4K	No
Best suited to	Complete workstation	Existing display

C-mount adapter: A suitable Nikon microscope camera adapter is required. If the microscope does not already have a compatible adapter, Auckland Scientific can supply one separately after confirming the microscope configuration.

18-Month Warranty

Every Auckland Scientific digital microscope upgrade is supplied with an 18-month warranty. Extended warranty and support packages are also available.

Specialist UK Microscopy Support

Auckland Scientific is a UK-based microscopy and laboratory equipment specialist with 21 years of microscopy sales experience. We can confirm compatibility, help select the most appropriate solution and support installation, configuration and user training.
