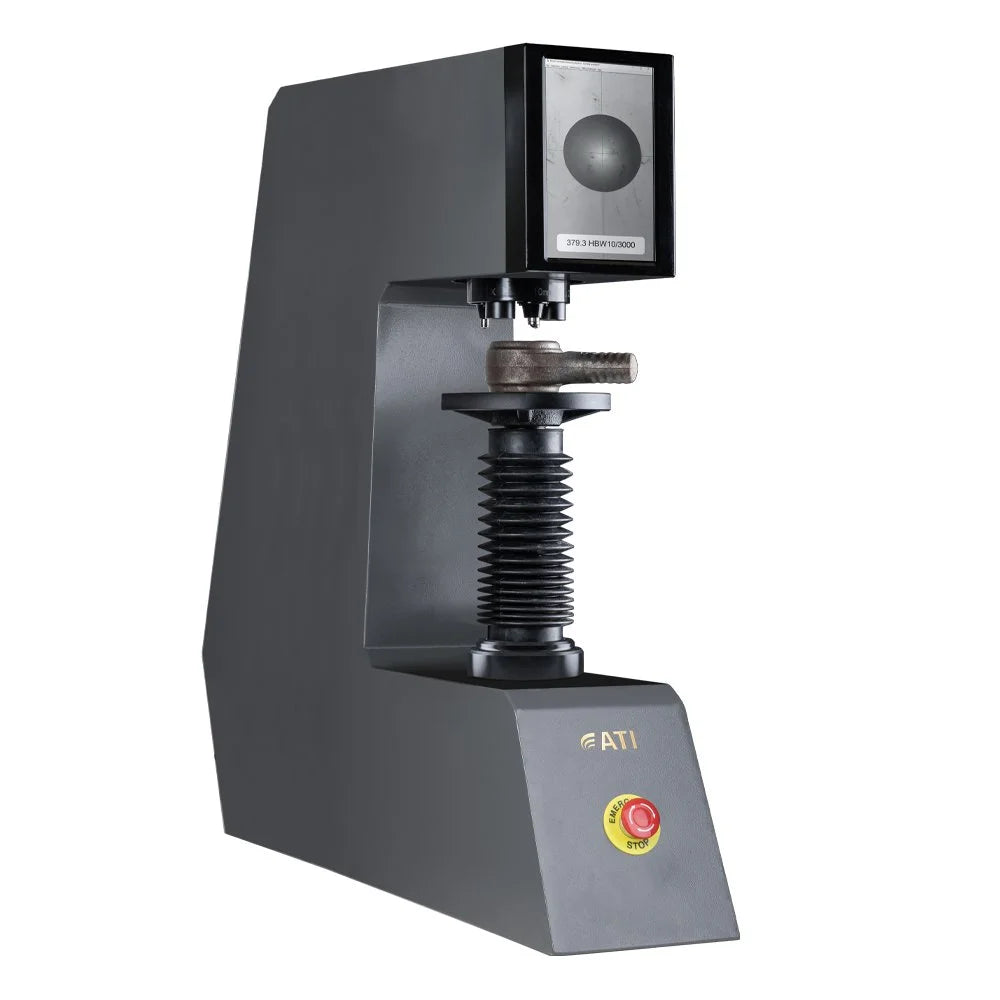

ATI B3000 Automatic Brinell Hardness Tester
Fully automatic Brinell hardness testing for laboratory, quality-control and production environments.
Automatic Brinell testing
The ATI B3000 is designed to automate the Brinell hardness test cycle from force application through indentation measurement. Select the required scale and start the cycle; the motorised system manages the test sequence and presents the result on the integrated display.
Test method
Brinell
Brinell
Standards
ISO 6506 / ASTM E10
ISO 6506 / ASTM E10
Force range
62.5–3000 kgf
62.5–3000 kgf
Measuring range
15.9–650 HBW
15.9–650 HBW
Key features
- Closed-loop electronic load-cell control

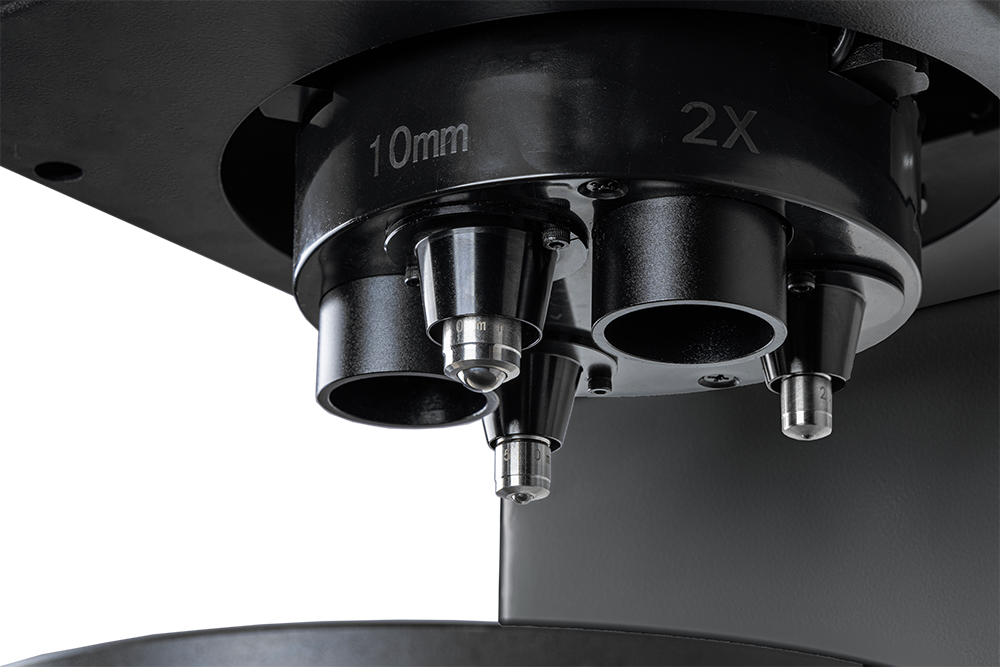

- Automatic turret with automatic indenter/objective switching
- Optional 5-position turret with 3 indenters and 20x / 40x optics
- 360° horizontal turret rotation
- Manual or automatic indentation measurement
- 1.2 MP camera and 0.1 µm measuring-device resolution
- 0–99 second dwell time
- Up to 310 mm height capacity and 250 mm depth capacity
- Results can be exported in Excel format to USB
Technical information & support
Need help deciding whether Brinell testing is appropriate for your samples? Auckland Scientific can advise on test method, load range and configuration.
Contact Auckland Scientific for technical information, literature or a quotation
Price on request
Contact Auckland Scientific for current pricing, availability and help selecting the most suitable hardness tester for your material, test method and workflow.
Contact us for a quotationSpecifications are based on current manufacturer and supplier information and may change without notice. Please contact Auckland Scientific to confirm the exact configuration required.
