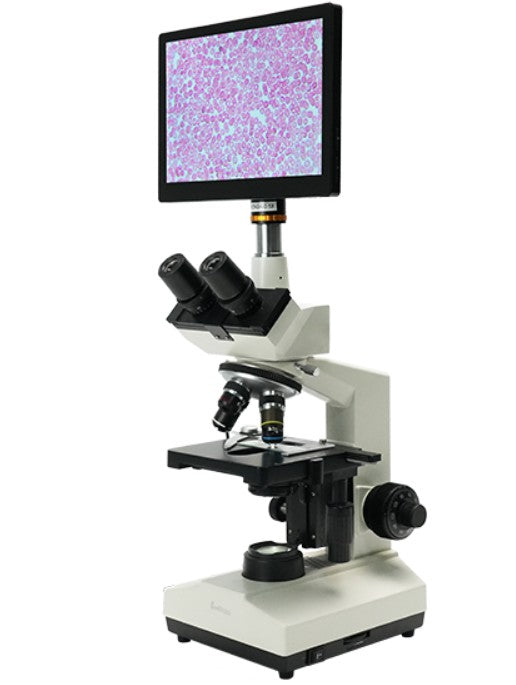

AUC-230-LCD DIGITAL & OPTICAL BIOLOGICAL MICROSCOPE
£995.00
Sale price
£995.00
Regular price
Skip to product information
AUC-230-LCD DIGITAL & OPTICAL BIOLOGICAL MICROSCOPE
£995.00
Sale price
£995.00
Regular price
LCD DIGITAL BIOLOGICAL MICROSCOPE
AUC-230-LCD
A complete digital microscopy system combining a classical biological microscope, 2MP digital camera and 10.1-inch Android touchscreen for observation, image capture, video recording and on-screen measurement.
10.1-inch touchscreen
IPS TFT-LCD display
IPS TFT-LCD display
Full HD imaging
1920 × 1080, 2MP
1920 × 1080, 2MP
Android 12
Integrated operation system
Integrated operation system
40×–1000×
Standard magnification range
Standard magnification range
Digital Microscopy Made Simple
Click to view PDF
The AUC-230-LCD LCD Digital Biological Microscope provides a convenient all-in-one platform for routine biological microscopy. It is designed for educational, academic, agricultural, histological, pathological and general laboratory applications.
Its integrated digital system incorporates a 10.1-inch IPS touchscreen, 2MP Sony imaging sensor and Android 12 operating system. Live specimens can be viewed directly on the display while retaining conventional observation through the eyepieces.
Images and videos can be recorded without requiring a separate computer. Built-in measurement tools support dimensional analysis, annotation and the export of measurement results for documentation and teaching.
Key Features
- 10.1-inch IPS TFT-LCD touchscreen with 1920 × 1200 screen resolution
- Full HD 1920 × 1080, 2MP digital camera
- Sony IMX307 colour imaging sensor
- Android 12 operating system
- HDMI output at 1920 × 1080, 60fps
- Integrated image capture, video recording and measurement
- Dual USB connections for compatible storage devices and mouse control
- SD card support and wireless network connectivity
- Sliding trinocular head with 360° rotation
- Achromatic objectives providing 40×, 100×, 400× and 1000× magnification
- Coaxial coarse and fine focusing with 0.002mm fine division
- Adjustable 1W S-LED transmitted illumination
- Optional rechargeable battery for LED operation where mains power is unavailable or unstable
Integrated Digital Imaging System
The AUC-230-LCD uses an all-in-one digital camera and touchscreen assembly. Its ARM-A55 quad-core processor and Android 12 operating system provide a straightforward interface for viewing, capturing and managing microscope images.
Camera controls include exposure, gain, white balance, colour adjustment, automatic sharpening, automatic noise reduction, image flipping and light-source frequency adjustment.
On-Screen Measurement Tools
Available tools include straight-line and polyline length, parallel-line distance, point-to-line distance, radius circle, three-point circle, concentric circle, centre distance, polygon, rectangle and three-point angle measurement. Measurement data can also be exported.
Applications
The AUC-230-LCD is suitable for use in:
- Biological education
- Academic laboratories
- Histological observation
- Pathological studies
- Medical and sanitary establishments
- Agricultural studies
- Colleges and universities
- General laboratory research
Microscope Specification
| Component | Standard Specification |
|---|---|
| Viewing Head | Sliding trinocular head, 45° inclined and 360° rotatable; interpupillary distance 55–75mm |
| Eyepieces | WF10×/18mm widefield eyepieces |
| Nosepiece | Quadruple nosepiece |
| Objectives | Achromatic 4×, 10×, 40× and 100× |
| Total Magnification | 40×, 100×, 400× and 1000× |
| Stage | Double-layer mechanical stage, 140 × 140mm; movement 75 × 50mm; double slide holder |
| Focusing | Coaxial coarse and fine adjustment; 0.002mm fine division; 28mm movement range |
| Condenser | Abbe NA 1.25 condenser with iris diaphragm and filter |
| Illumination | Adjustable 1W S-LED transmitted illumination |
| Microscope Power | Built-in 110–240V power supply |
| C-mount Adapter | 0.5× C-mount adapter included |
Digital Camera and Display Specification
| Item | Specification |
|---|---|
| Screen | 10.1-inch IPS TFT-LCD touchscreen |
| Screen Resolution | 1920 × 1200 |
| Camera Sensor | Sony IMX307 colour sensor, 1/2.8 inch |
| Camera Resolution | 1920 × 1080, 2MP |
| Pixel Size | 2.9μm × 2.9μm |
| Processor | ARM-A55 64-bit quad-core, 1.5GHz |
| Memory | 16GB running memory; 256GB built-in storage |
| Operating System | Android 12 |
| HDMI Output | HDMI 1.4, 1920 × 1080 at 60fps, Mini HDMI |
| Image Format | 1920 × 1080 JPEG |
| Video Recording | 1920 × 1080 MP4 at 30fps |
| Connectivity | 2.4GHz and 5GHz Wi-Fi, dual USB-C interfaces and SD card slot |
| Camera Power | DC 12V/2A |
Standard Outfit
- 10.1-inch touchscreen digital camera system
- WF10×/18mm eyepieces
- 4×, 10×, 40× and 100× objectives
- 0.5× C-mount adapter
- Dust cover
- Immersion oil
- User manual
Optional Accessories
- Alternative eyepieces and objectives
- Simple, sliding or turret phase contrast kits
- Dry and oil darkfield attachments
- Simple polarisation set
- Fluorescence attachment
- Alternative C-mount and reduction adapters
- Rechargeable battery for LED illumination
3-Year Auckland Scientific Microscope Warranty
Supplied with a three-year Auckland Scientific microscope warranty. Warranty conditions apply and annual servicing is required. Full warranty terms are available on request.
Product images are for illustration purposes. Specifications may be updated without prior notice. Optional accessories are available separately.
