Auckland Scientific Intelligent Biological Microscopes

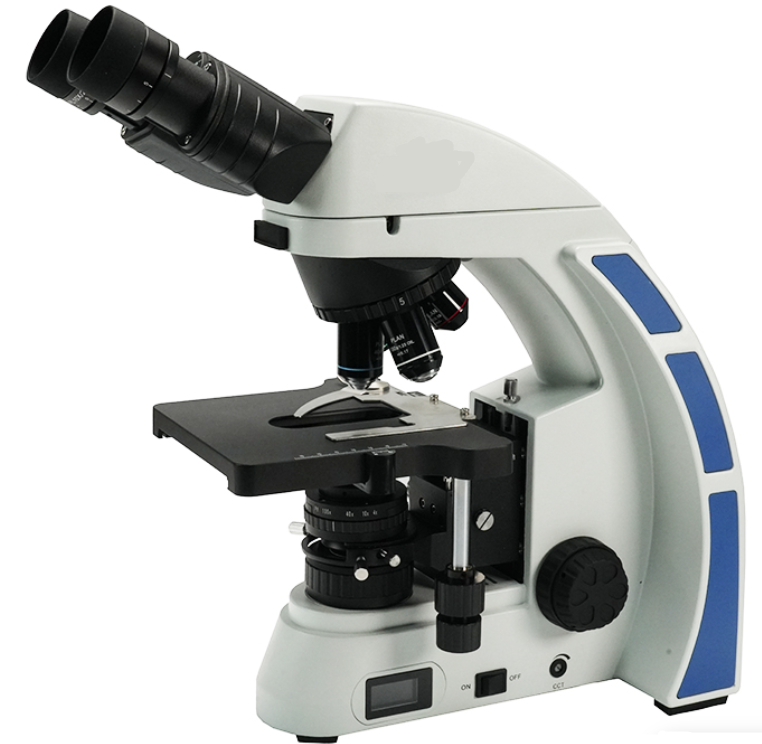

AUC-245 Series Intelligent Infinity Plan Biological Microscopes
High-quality binocular and trinocular microscopes with coded objective recognition, automatic illumination memory, an LCD information display and adjustable 3000K-5600K LED colour temperature.
Click to view PDF
Intelligent Illumination for Efficient and Consistent Microscopy
The AUC-245 Series comprises advanced biological microscopes designed for biological and medical research, teaching, pathological examination and routine clinical applications.
An infinity colour-corrected optical system, PL10X/22mm high-eyepoint eyepieces and five infinity plan achromatic objectives provide clear, bright and comfortable images from 40X to 1000X.
The intelligent illumination system works with a reversed coded quintuple nosepiece to identify the objective in use and recall the previously used illumination intensity. This supports more consistent observation while reducing repeated manual adjustment when changing magnification.
Intelligent Microscope Control
Objective Recognition and Automatic Light Memory
The microscope remembers the illumination intensity previously used with each objective. When the objective is changed, the system automatically recalls the corresponding light setting, improving efficiency and helping to reduce visual fatigue.
Coded Quintuple Nosepiece
Recognises the objective position currently in use.
Illumination Memory
Recalls the previously used light intensity for each objective.
Integrated LCD Display
Displays objective magnification, light intensity and colour temperature.
Adjustable 3000K-5600K LED Colour Temperature
The LED colour temperature can be adjusted from 3000K to 5600K. This allows the illumination appearance and specimen contrast to be adjusted for the observation requirements.
Colour-temperature adjustment is made using a straight screwdriver. The selected colour temperature is shown on the microscope’s LCD display.
Available Configurations
| Model | Viewing Head | Standard Configuration |
|---|---|---|
| AUC-245B | Binocular | PL10X/22mm eyepieces, Seidentopf binocular head, 4X, 10X, 20X, 40X and 100X infinity plan achromatic objectives, coded quintuple nosepiece, rackless stage, Köhler condenser and intelligent 3W LED illumination. |
| AUC-245T | Trinocular | PL10X/22mm eyepieces, Seidentopf trinocular head, 4X, 10X, 20X, 40X and 100X infinity plan achromatic objectives, coded quintuple nosepiece, rackless stage, Köhler condenser and intelligent 3W LED illumination. |
The AUC-245B provides binocular observation. The AUC-245T incorporates a trinocular imaging port with a fixed 80:20 eyepiece-to-trinocular light split. Camera and C-mount adapter are optional.
Key Features
Infinity Colour-Corrected Optics
Produces sharp, bright and comfortable images across the field of view.
Five Plan Objectives
Supplied with 4X, 10X, 20X, 40X and 100X infinity plan achromatic objectives.
22mm Field of View
High-eyepoint PL10X/22mm plan eyepieces provide spacious and comfortable observation.
Rackless Mechanical Stage
Provides smooth specimen movement without an exposed moving rack.
Köhler Illumination
Supports accurately aligned illumination and controlled specimen contrast.
Expandable Platform
Optional equipment supports phase contrast, darkfield, polarisation, fluorescence and digital imaging.
Technical Specifications
| Optical system | Infinity colour-corrected optical system with 45mm parfocal distance |
|---|---|
| Viewing head | Seidentopf binocular or trinocular head, 30° inclined, 360° rotatable, with 50-75mm interpupillary adjustment |
| Trinocular light distribution | Fixed 80:20 eyepiece-to-trinocular light split on AUC-245T |
| Eyepieces | High-eyepoint PL10X/22mm plan eyepieces with ±5 dioptre adjustment |
| Standard objectives | 4X, 10X, 20X, 40X spring-loaded and 100X spring-loaded oil-immersion infinity plan achromatic objectives |
| Magnification range | 40X to 1000X with supplied optics |
| Nosepiece | Reversed coded quintuple nosepiece |
| Stage | Rackless double-layer mechanical stage, 150mm × 162mm, with 76mm × 50mm movement, double slide holder and 0.1mm accuracy |
| Condenser | NA 1.25 Köhler illumination condenser with aperture diaphragm and phase contrast/darkfield insert slot |
| Focusing | Low-position coaxial focusing system with 30mm range, upper limit, tension adjustment and 0.002mm fine division |
| Transmitted illumination | Continuously adjustable 3W LED illumination |
| Colour temperature | Adjustable from 3000K to 5600K |
| LCD information | Displays objective magnification, illumination intensity and colour temperature |
| Illumination memory | Stores and recalls the light intensity used with each objective |
| Power supply | External adapter, 100-240V input and 15V/2.67A output |
Optional Observation and Imaging Equipment
The AUC-245 Series can be expanded with optional accessories for additional observation and imaging techniques.
- Phase contrast objectives, insert plates and turret condenser sets
- Darkfield insert plate and combined phase contrast/darkfield condenser
- Simple polarising equipment
- LED fluorescence modules, including a dedicated B4 module for TB testing
- Semi-apochromatic fluorescence objectives
- Eyepiece measurement accessories
- Adjustable C-mount adapters and compatible microscope cameras
Fluorescence equipment, specialist observation accessories, cameras and adapters are not included in the standard configurations.
Applications
The AUC-245 Series is suitable for biological, pathological, histological, bacteriological, immunological, pharmacological and genetic applications.
Biological research
Pathological examination
Clinical laboratories
Medical teaching
Universities and colleges
Research centres
Standard Equipment
- Binocular or trinocular microscope body according to the selected model
- Pair of PL10X/22mm plan eyepieces with dioptre adjustment
- 4X infinity plan achromatic objective
- 10X infinity plan achromatic objective
- 20X infinity plan achromatic objective
- 40X spring-loaded infinity plan achromatic objective
- 100X spring-loaded oil-immersion infinity plan achromatic objective
- Reversed coded quintuple nosepiece
- Rackless double-layer mechanical stage with double slide holder
- NA 1.25 Köhler illumination condenser
- Intelligent 3W LED illumination system
- Integrated LCD information display
3-Year Auckland Scientific Microscope Warranty
Both variants are supplied with a comprehensive 3-year Auckland Scientific microscope warranty, subject to the microscope receiving an annual service. Warranty conditions apply, and full warranty terms are available on request.
