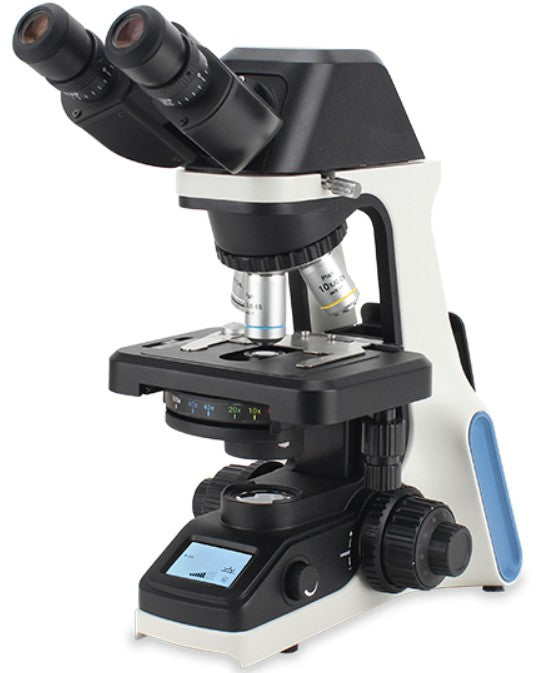

AUC-246 Series Intelligent Coded LED Transmitted Biological Microscopes
Binocular
£1,195.00
Sale price
£1,195.00
Regular price
Skip to product information
AUC-246 Series Intelligent Coded LED Transmitted Biological Microscopes
£1,195.00
Sale price
£1,195.00
Regular price
Auckland Scientific Intelligent Biological Microscopes
AUC-246 Series Intelligent NIS Infinity Biological Microscopes
Compact, ergonomic binocular and trinocular microscopes with NIS infinity optics, intelligent illumination management, adjustable colour temperature and an LCD working-status display.
Click to view PDF
Designed for Teaching, Clinical Examination and Laboratory Research
The AUC-246 Series comprises high-quality biological microscopes designed for teaching, clinical diagnosis and laboratory research. Its NIS infinity optical system, plan achromatic objectives and wide-field eyepieces provide clear, reliable images with good contrast and edge-to-edge clarity.
An intelligent light-management system automatically remembers the illumination intensity used with each objective. When the coded nosepiece is rotated, the microscope recalls the corresponding brightness setting, helping improve efficiency and reduce repeated adjustment.
The compact microscope body incorporates low-position controls, a rackless stage, an integrated carrying handle, rear cable storage and a safer external DC 5V power supply. These features make the microscope particularly suitable for classrooms, teaching laboratories and busy clinical environments.
Intelligent Microscope Control
Coded Objective Recognition and Illumination Memory
The coded quadruple nosepiece works with the illumination-management system to remember and restore the light intensity used with each objective. This supports faster objective changes, consistent illumination and more comfortable routine observation.
Coded Nosepiece
Identifies the objective position currently in use.
Automatic Light Recall
Remembers and restores the illumination intensity for each objective.
LCD Status Display
Displays magnification, brightness, colour temperature and standby status.
Adjustable LED Colour Temperature
The AUC-246 Series incorporates adjustable LED colour temperature, allowing the illumination appearance to be adapted to the specimen and observation requirements.
The system is designed to maintain comfortable illumination characteristics when brightness is adjusted. The selected colour temperature is shown on the microscope’s LCD display.
Available Configurations
| Model | Viewing Head | Standard Configuration |
|---|---|---|
| AUC-246B | Binocular | WF10X/20mm eyepieces, Seidentopf binocular head, 4X, 10X, 40X and 100X infinity plan achromatic objectives, coded quadruple nosepiece, rackless stage, Abbe condenser and intelligent 3W LED illumination. |
| AUC-246T | Trinocular | WF10X/20mm eyepieces, Seidentopf trinocular head, 4X, 10X, 40X and 100X infinity plan achromatic objectives, coded quadruple nosepiece, rackless stage, Abbe condenser and intelligent 3W LED illumination. |
The AUC-246B provides binocular observation. The AUC-246T incorporates a trinocular imaging port for use with a compatible camera and optional C-mount adapter.
Key Features
NIS Infinity Optical System
Advanced optical coatings and plan objectives provide clear, high-contrast images across the field.
20mm Wide Field of View
WF10X/20mm eyepieces provide a comprehensive observation field with clear edge performance.
Rackless Mechanical Stage
Prevents contact with an exposed moving rack and supports straightforward one-handed slide positioning.
Safe Focusing System
Stage-height limit helps protect slides and objectives from accidental contact.
Compact and Portable
Integrated carrying handle and compact body simplify transport, storage and maintenance.
Long-Life LED Illumination
The LED illumination system has a stated design life of approximately 60,000 hours.
Technical Specifications
| Optical system | NIS infinity optical system |
|---|---|
| Viewing head | Seidentopf binocular or trinocular head, 30° inclined, with 47-78mm interpupillary adjustment and dioptre adjustment on both eyepiece tubes |
| Eyepieces | WF10X/20mm wide-field eyepieces |
| Standard objectives | 4X, 10X, 40X spring-loaded and 100X spring-loaded oil-immersion infinity plan achromatic objectives |
| Magnification range | 40X to 1000X with supplied optics |
| Nosepiece | Backward-facing coded quadruple nosepiece |
| Stage | Rackless double-layer mechanical stage, 180mm × 130mm, with 74mm × 30mm movement |
| Condenser | NA 1.25 Abbe condenser with iris diaphragm |
| Focusing | Coaxial coarse and fine focusing with stage-height limit, tension adjustment, 20mm movement and 0.002mm fine division |
| Illumination | Adjustable 3W LED transmitted illumination |
| Colour temperature | Adjustable; working status shown on LCD |
| LCD information | Displays magnification, brightness, colour temperature and standby status |
| Illumination memory | Automatically remembers and recalls the light intensity used with each objective |
| Power supply | External power adapter with DC 5V input |
Optional 8.3MP Digital Viewing Head
An optional Seidentopf binocular head with an integrated 8.3MP digital camera is available. The camera supports Wi-Fi, USB and HDMI output while maintaining the compact dimensions of the standard binocular head.
This configuration can support digital teaching, image sharing and the development of an interactive microscope classroom.
Modular Observation Options
The modular microscope platform can be expanded with optional equipment for additional observation and imaging techniques.
Brightfield observation
Darkfield observation
Phase contrast observation
Fluorescence microscopy
Digital image capture
Measurement and documentation
Specialist observation equipment, digital heads, cameras and adapters are optional and are not included in the standard configurations.
Applications
The AUC-246 Series is suitable for biological, pathological, histological, haematological, bacteriological, immunological, pharmacological and genetic applications.
Hospitals and clinics
Clinical laboratories
Schools and teaching labs
Medical academies
Universities and colleges
Research centres
Standard Equipment
- Binocular or trinocular microscope body according to the selected model
- Pair of WF10X/20mm wide-field eyepieces
- 4X infinity plan achromatic objective
- 10X infinity plan achromatic objective
- 40X spring-loaded infinity plan achromatic objective
- 100X spring-loaded oil-immersion infinity plan achromatic objective
- Backward-facing coded quadruple nosepiece
- Rackless double-layer mechanical stage
- NA 1.25 Abbe condenser with iris diaphragm
- Intelligent 3W LED illumination system
- Integrated LCD working-status display
- External DC 5V power adapter
- Dust cover
3-Year Auckland Scientific Microscope Warranty
Both variants are supplied with a comprehensive 3-year Auckland Scientific microscope warranty, subject to the microscope receiving an annual service. Warranty conditions apply, and full warranty terms are available on request.
Why Choose Auckland Scientific?
- Specialist advice: Help selecting the appropriate microscope and accessories.
- Installation and commissioning: Professional setup services are available.
- User training: Practical microscope and digital imaging training can be provided.
- Service and maintenance: Preventative servicing and breakdown support are available.
- UK-based support: Friendly assistance from an experienced scientific equipment specialist.
