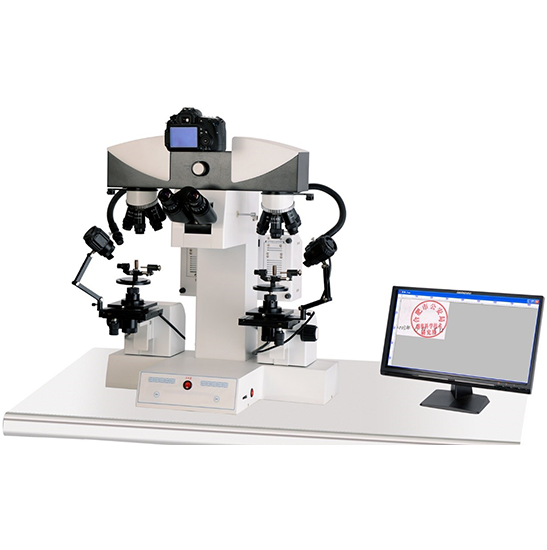

AUC-320-COM Computer-Controlled Comparison Microscope

Auckland Scientific • Advanced comparison microscopy

AUC-320-COM Computer-Controlled Comparison Microscope

An advanced comparison system with PC-controlled comparison mode and stage movement, supplied with a camera, computer and image-processing software.

Automated comparison and stage movement

Switch between left or right single-field viewing, split views, joined fields and overlapping comparison. The system supports manual or PC control of comparison-mode switching and coordinated X/Y/Z movement, stage rotation and synchronous movement of both stages.

The six changeable objectives provide 6×–144× total optical magnification with the supplied eyepieces and comparison bridge.

Key features

• Manual and PC-controlled comparison-mode switching and stage movement
• Six changeable objectives: 0.5×, 1×, 1.5×, 2×, 4× and 6×
• 6×–144× total optical magnification
• 125 × 130 mm stage platform with up to 54 mm X/Y/Z travel and 0–360° horizontal rotation
• Trinocular head inclined at 45°, with 48–75 mm interpupillary adjustment
• Built-in 3.1 MP USB 2.0 CMOS camera, C-mount video adapter and DSLR photo attachment
• Computer and professional image-processing software included
• Adjustable LED illumination, polarising attachment, coaxial illumination and bottom transmitted white light included

Technical specifications

Standard outfit and options

Standard: comparison microscope, objectives and eyepieces, 3.1 MP camera, computer, image-processing software, C-mount video adapter, DSLR photo attachment, adjustable LED and side illumination, polarising and coaxial illumination, transmitted white light, and small bullet holder.

Optional: 0.4× or 2× auxiliary objectives, five-band light source and semicircular arc bullet holder.

Auckland Scientific support

Includes an Auckland Scientific 3-year warranty (conditions apply). We can advise on applications, system configuration and digital imaging workflow.
