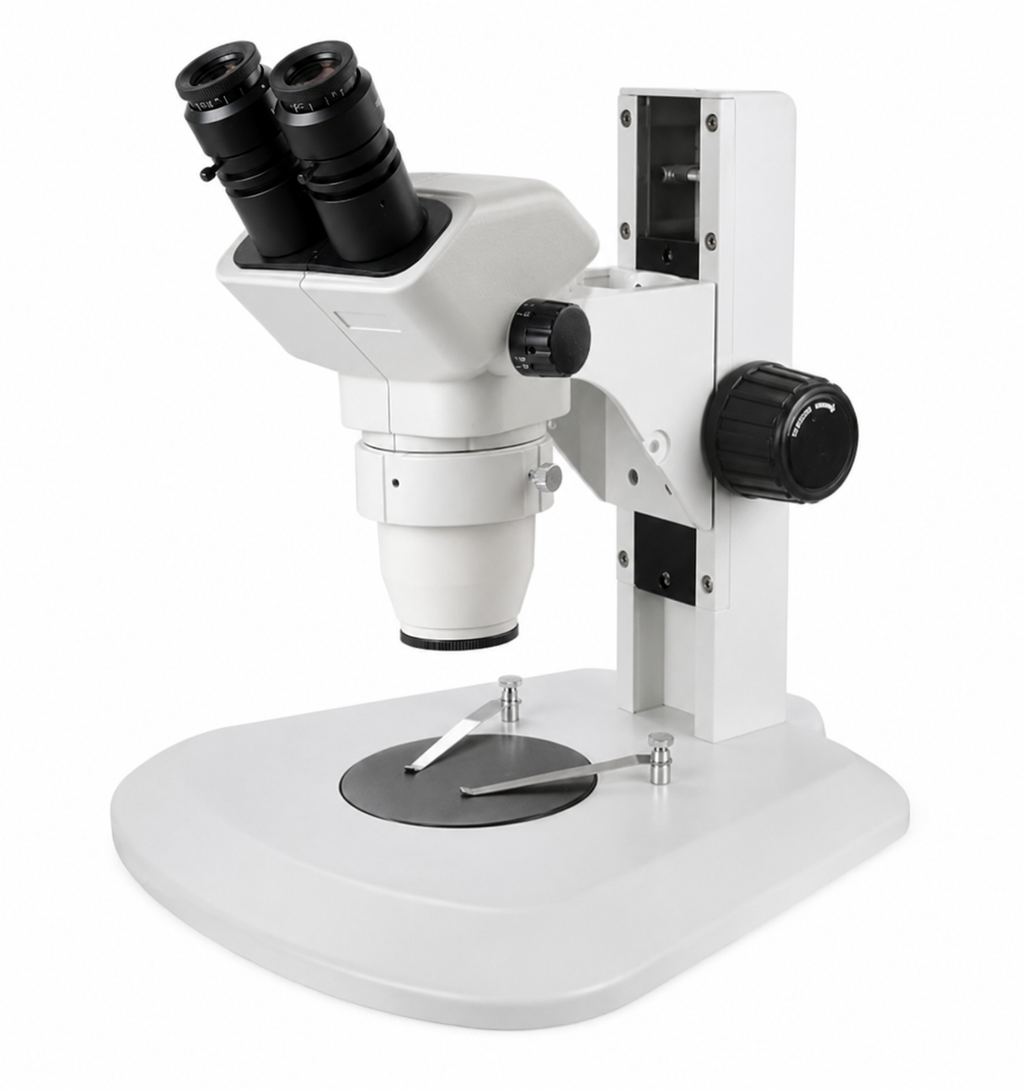

Binocular Stereo Zoom Microscope

Zoom Range: 0.67x - 4.5x

with Stand Options

Professional Zoom Stereo Microscope for Inspection, Research & Quality Control

The Auckland Scientific Professional Zoom Stereo Microscope has been designed to deliver outstanding optical performance with sharp, high-contrast images across the entire field of view. Featuring a continuous zoom optical system and ergonomic design, it is ideal for prolonged use in laboratories, manufacturing facilities, research institutions and educational environments.

Providing exceptional depth perception and excellent image clarity, this microscope is suitable for a wide range of inspection, measurement and analysis applications where precision and reliability are essential.

Available Models

Key Features

• High-quality continuous zoom optical system
• Sharp, flat images across the entire viewing field
• Excellent depth of field and stereoscopic imaging
• Ergonomic design for comfortable all-day operation
• Smooth precision focusing mechanism
• Adjustable zoom controls with excellent repeatability
• Long 100 mm working distance
• Wide field eyepieces with adjustable diopters
• Modular design supporting numerous accessories
• Optional digital imaging and measurement capability
• Built for laboratory, industrial and educational environments

Outstanding Optical Performance

Designed with premium optics, this stereo microscope delivers crisp, distortion-free images throughout the zoom range. The advanced optical system provides exceptional edge-to-edge clarity, making detailed inspection easier while reducing eye fatigue during prolonged use.

The continuous zoom system allows rapid adjustment between low and high magnifications without changing objectives, making the microscope suitable for a wide variety of applications.

Comfortable Ergonomic Design

The microscope has been engineered with operator comfort in mind.

Features include:

• Comfortable 60 degree inclined binocular viewing head
• High eyepoint wide-field eyepieces
• Adjustable interpupillary distance
• Adjustable diopter correction
• Smooth precision focusing
• Easily accessible zoom controls

These features allow extended periods of observation while minimising operator fatigue.

Precision Focusing System

The precision focusing mechanism provides smooth, accurate movement with adjustable tension control, allowing users to achieve precise focus quickly and consistently.

The rigid mechanical construction ensures excellent stability during observation and imaging.

Flexible Illumination Options

Depending on the selected model, the microscope is available with:

• Pillar stand
• Integrated stand
• LED transmitted and reflected illumination
• Black and white stage plate
• Glass stage plate
• Optional LED or fluorescent ring light or goose neck Lights

The modular design allows the microscope to be configured for numerous inspection and laboratory applications.

Expandable Magnification

The microscope features a standard continuous zoom objective providing:

• Objective Zoom Range: 0.67× – 4.5×
• Standard Eyepieces: 10× Wide Field
• Working Distance: 100 mm

Optional auxiliary objectives can significantly increase or decrease both magnification and working distance to suit specific applications.

Available auxiliary objectives include:

• 0.3× WD=287mm
• 0.4× WD=217mm
• 0.5× WD=177mm
• 0.7× WD=120mm
• 1.5× WD=47mm
• 2×    WD=26mm

Available optional eyepieces:

• WF10TX/22mm -High eyepoint wide field eyepiece, with micrometer and adjustable diopter
• WF15TX/16mm - High eyepoint wide field eyepiece, with adjustable diopter
• WF15TX/16mm - High eyepoint wide field eyepiece, with micrometer and adjustable diopter
• WF20TX/12mm - High eyepoint wide field eyepiece, with adjustable diopter
• WF20TX/12mm - High eyepoint wide field eyepiece, with micrometer and adjustable diopter
• WF30TX/8mm - High eyepoint wide field eyepiece, with adjustable diopter

Optional Accessories

A comprehensive range of accessories is available, including:

• Wide-field eyepieces:
• Auxiliary objectives
• Digital eyepiece camera

• Precision mechanical measurement stage
• Digital measurement stage
• Ring light adapter

• Additional illumination systems
• Various other long reach or articulated stands

Technical Specifications

Applications

This microscope is ideal for numerous professional applications, including:

Industrial Inspection

• Electronics assembly
• PCB inspection
• Precision engineering
• Component inspection
• Manufacturing quality control
• Semiconductor inspection
• LED manufacturing
• Mechanical engineering
• Materials inspection

Life Science & Research

• Biological research
• Medical laboratories
• Histology
• Zoology
• Botany
• Entomology
• Anatomy
• Dermatology
• Biomedical research

Education

• Universities
• Colleges
• Schools
• Technical training
• Laboratory teaching

Why Choose Auckland Scientific?

Every microscope supplied by Auckland Scientific is backed by experienced technical support and professional after-sales service.

We also offer:

• Expert product advice
• Installation and commissioning
• Operator training
• Preventative maintenance
• Service and repairs
• Calibration support (where applicable)
• Technical support throughout the lifetime of your equipment

Request a Quote

Whether you're carrying out industrial inspection, scientific research or educational teaching, the Auckland Scientific Professional Zoom Stereo Microscope delivers exceptional optical performance, reliable operation and outstanding value.

Contact Auckland Scientific today for pricing, configuration advice and assistance selecting the ideal model for your laboratory or inspection application.

Comes with 3 years Auckland Scientific Warranty.
