INDUSTRIAL METALLURGICAL INSPECTION

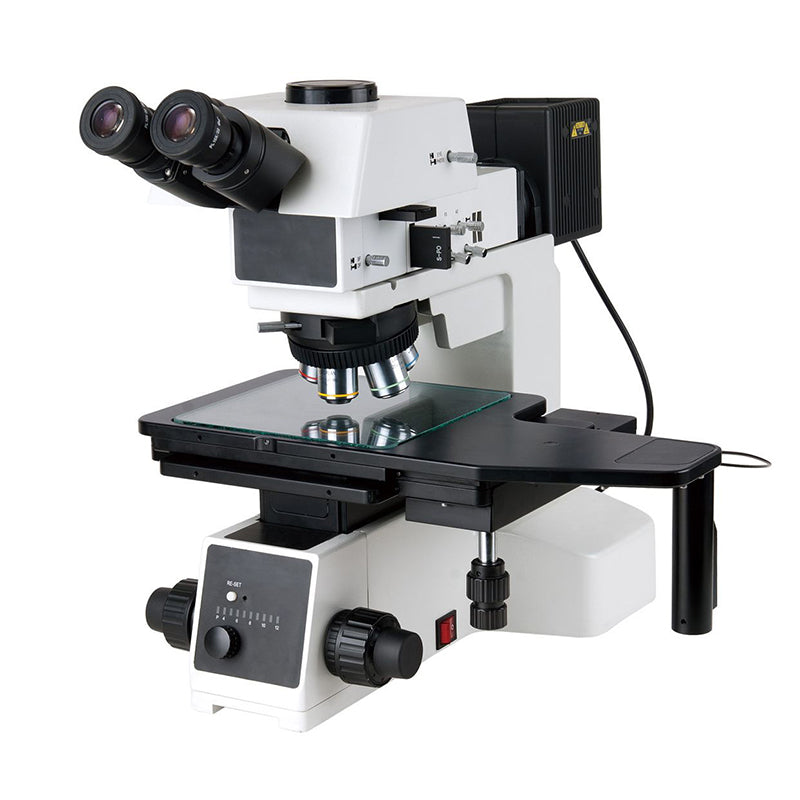

AUC-4040-RF Reflected LED Metallurgical Microscope
A reflected-light inspection system for metallurgical samples, electronic components, wafers and other opaque materials.
The AUC-4040-RF is an industrial metallurgical microscope for reflected bright-field and dark-field observation. Its long-working-distance objective set, tilting trinocular viewing head and large mechanical stage support inspection of samples where surface detail, positioning control and working clearance matter.
Typical applications
Metallurgical analysis, electronic component and PCB inspection, wafer and flat-panel display inspection, and examination of small industrial parts and surface defects.
Key features
- Infinity colour-corrected optical system with 50×–500× total magnification.
- 5–35° adjustable, erect-image trinocular head; 50–76 mm interpupillary adjustment and 100:0 / 0:100 light split.

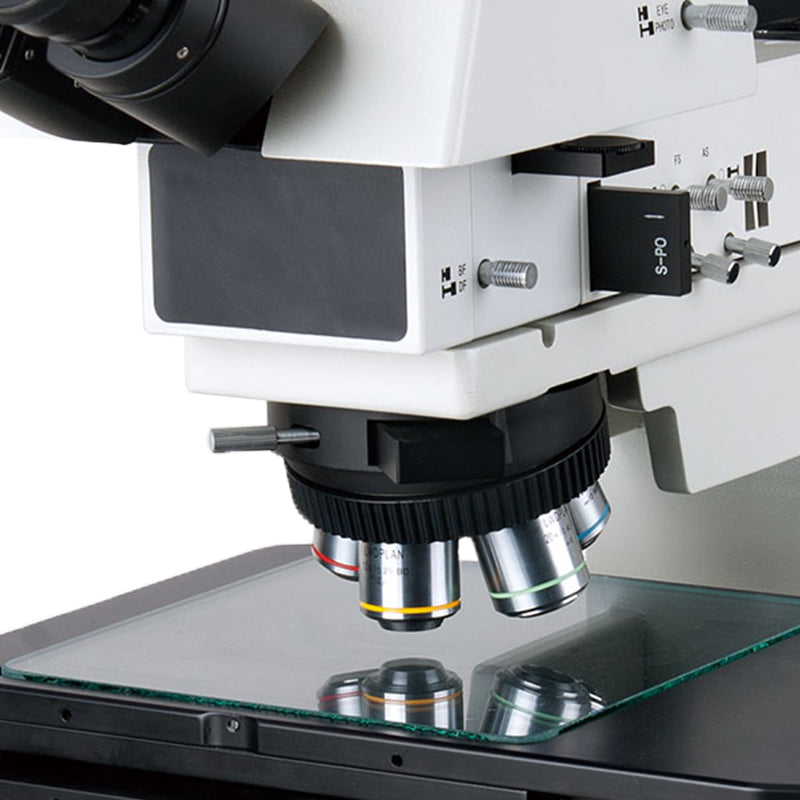

- Long-working-distance BD metallurgical objectives and five-position inward-facing nosepiece with DIC slot.
- Reflected LED bright-field and dark-field illumination with independently adjustable aperture and field diaphragms.
- Large, stable metal microscope frame with low-position coaxial focusing and built-in 100–240 V power.
Standard specification
| Optical system | Infinity colour-corrected |
|---|---|
| Viewing head | Tilting trinocular; 5–35° adjustable; erect image; 50–76 mm interpupillary distance; 100:0 or 0:100 light split |
| Eyepieces | High-eyepoint wide-field plan PL10×/22 mm |
| Standard objectives | 5× / NA 0.15 / WD 9 mm; 10× / NA 0.30 / WD 9 mm; 20× / NA 0.45 / WD 3.4 mm; 50× / NA 0.55 / WD 7.5 mm |
| Magnification | 50×–500× total magnification |
| Nosepiece | Inward-facing quintuple BD nosepiece with DIC slot |
| Illumination | Reflected 12 V / 10 W cool-colour LED lamp box, 4750–5500 K; reflected bright-field and dark-field modes |
| Stage | 6-inch, three-layer mechanical stage; 445 × 240 mm; 158 × 158 mm reflected-light travel; clutch handle for quick positioning |
| Focus | Low-position coaxial coarse and fine focus; 33 mm coarse range; 0.001 mm fine precision; upper stop and tension adjustment |
| Power | Built-in 100–240 V wide-voltage system |
Optional configuration
- Additional 100× objectives and alternative objective designs.
- Alternative 4-inch stages and stage adaptors.
- Polariser and fixed analyser; measurement eyepieces and reticles.
- Alternative camera adapters and other accessories.
Optional items are not included unless specifically listed in the quotation.
Auckland Scientific 3-year warranty
Supplied with an Auckland Scientific 3-year warranty (conditions apply).
Need advice choosing the right microscope?
Call Auckland Scientific to discuss your sample, inspection method and required configuration. We can help you select suitable objectives, stages and imaging accessories for your application.
