AUC-605 Series Inverted Metallurgical Microscope – Brightfield or Brightfield/Darkfield

£2,250.00

AUC-605 Series Inverted Metallurgical Microscope – Brightfield or Brightfield/Darkfield

The AUC-605 Series comprises professional inverted metallurgical microscopes for inspecting large, heavy or irregular specimens that may be unsuitable for placement beneath an upright microscope.

Both configurations feature an infinity-corrected optical system, widefield trinocular viewing head, large mechanical stage and powerful reflected halogen illumination. The series is suitable for metallographic analysis, materials inspection, semiconductor inspection, precision engineering, teaching, research and industrial quality control.

Choose the AUC-605-I for routine brightfield examination or the AUC-605D-I when both brightfield and darkfield observation are required.

To view the PDF Click Here

Key features

Infinity-corrected optical system
Inverted configuration for large and irregular samples

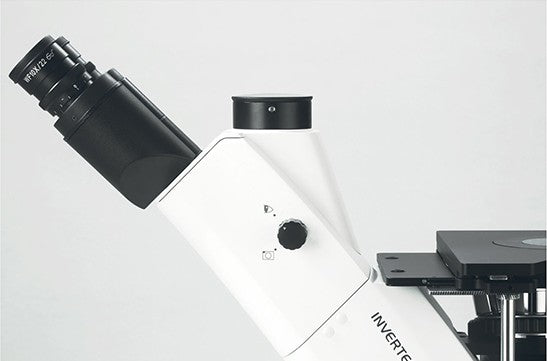

30° inclined trinocular viewing head
Adjustable light distribution for observation and imaging
WF10×/22 mm widefield eyepieces
Four infinity LWD plan metallurgical objectives
Standard magnification range of 50×–500×
Large 200 × 180 mm mechanical stage
50 × 50 mm stage movement
Coaxial coarse and fine focusing
Fine-focus division of 2 µm
12 V/50 W reflected halogen illumination
Polariser, analyser and blue filter included
Optional C-mount camera adapters available
Covered by Auckland Scientific’s three-year warranty when serviced annually

Choose your configuration

AUC-605-I – Brightfield

Designed for general reflected-light brightfield examination.

Included optical configuration:

5× infinity LWD plan metallurgical objective
10× infinity LWD plan metallurgical objective
20× infinity LWD plan metallurgical objective
50× infinity LWD plan metallurgical objective
Quintuple nosepiece

AUC-605D-I – Brightfield and Darkfield

Designed for applications requiring both brightfield and darkfield observation.

Included optical configuration:

5× infinity LWD brightfield/darkfield plan metallurgical objective
10× infinity LWD brightfield/darkfield plan metallurgical objective
20× infinity LWD brightfield/darkfield plan metallurgical objective
50× infinity LWD brightfield/darkfield plan metallurgical objective
Quadruple nosepiece

Shared technical specifications

Item	Specification
Optical system	Infinity-corrected optical system
Viewing head	30° inclined trinocular
Interpupillary distance	48–76 mm
Light distribution	Eyepieces/trinocular: 100:0 or 20:80
Eyepieces	WF10×/22 mm widefield
Standard magnification	50×, 100×, 200× and 500×
Focusing	Low-position coaxial coarse and fine focusing
Fine-focus division	2 µm
Stage dimensions	200 × 180 mm
Stage movement	50 × 50 mm
Illumination	Reflected 12 V/50 W halogen
Polarising equipment	Polariser and analyser included
Standard filter	Blue filter
Power supply	100–240 V
Camera connection	Optional adjustable C-mount adapters
Packing dimensions	650 × 600 × 625 mm
Gross weight	17 kg
Net weight	12.5 kg
