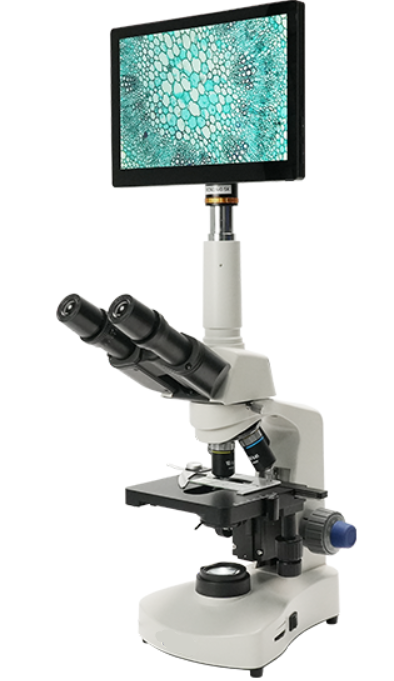

AUC4-221-LCD Digital & Optical Biological Microscope
£1,295.00
Sale price
£1,295.00
Regular price
Skip to product information
AUC4-221-LCD Digital & Optical Biological Microscope
£1,295.00
Sale price
£1,295.00
Regular price
INFINITY OPTICAL LCD DIGITAL MICROSCOPE
AUC4-221-LCD
An infinity optical biological microscope with semi-plan objectives, a 10.1-inch Android touchscreen and integrated Full HD imaging.
Infinity optics
Semi-plan objectives
Semi-plan objectives
10.1-inch touchscreen
IPS TFT-LCD
IPS TFT-LCD
Full HD imaging
1920 × 1080, 2MP
1920 × 1080, 2MP
Android 12
Imaging and measurement
Imaging and measurement
Infinity Optical Performance with Integrated Digital Imaging
Click to view PDF
The AUC4-221-LCD Digital Biological Microscope combines an infinity optical system with infinite semi-plan achromatic objectives and an all-in-one Android touchscreen camera.
Specimens can be observed through the WF10×/18mm eyepieces or viewed directly on the integrated 10.1-inch display. This provides a flexible and comfortable platform for individual observation, teaching, demonstrations and extended laboratory work.
Full HD images and videos can be captured directly from the touchscreen. Built-in measurement tools support routine analysis and documentation without requiring a separate computer.
Key Features
- Infinity optical system
- Infinite semi-plan achromatic objectives
- WF10×/18mm widefield eyepieces
- 40×–1000× standard magnification
- 10.1-inch IPS TFT-LCD touchscreen
- Sony IMX307 colour imaging sensor
- 1920 × 1080, 2MP camera
- Android 12 operating system
- HDMI Full HD output at 60fps
- Image capture, video recording and measurement
- Dual USB connections for compatible storage and mouse control
- SD-card storage support
- Seidentopf trinocular viewing head
- Coaxial coarse and fine focusing
- Adjustable LED illumination
- Optional rechargeable battery for locations with limited or unstable mains power
Infinity Optical System
The standard optical configuration includes infinite semi-plan achromatic 4×, 10×, 40× and 100× objectives. The infinity system supports clear, consistent imaging while providing a flexible optical platform for digital observation and optional accessories.
Optional infinite plan achromatic objectives are available in 2×, 4×, 10×, 20×, 40×, 60× and 100× magnifications.
Integrated Android Touchscreen Camera
The 10.1-inch all-in-one camera uses a Sony IMX307 colour sensor and Android 12 operating system. Live images can be displayed, captured, recorded and measured directly from the touchscreen.
Mini HDMI output provides 1920 × 1080 video at 60fps. Wi-Fi, USB and SD-card connectivity provide flexible options for storage, control and external display.
On-Screen Measurement Tools
Measurement functions include straight and broken-line length, parallel-line distance, point-to-line distance, radius circle, three-point circle, concentric circle, centre distance, polygon, rectangle and three-point angle. Measurement data can also be exported.
Applications
The AUC4-221-LCD is suitable for:
- School biological education
- Veterinary analysis
- Medical analysis
- Academic laboratories
- Routine slide observation
- Clinics and hospitals
- Colleges and universities
- Scientific research departments
Microscope Specification
| Component | Standard Specification |
|---|---|
| Optical System | Infinity optical system |
| Viewing Head | Seidentopf trinocular head, 30° inclined and 360° rotatable; interpupillary distance 48–75mm |
| Eyepieces | WF10×/18mm |
| Objectives | Infinite semi-plan achromatic 4×, 10×, 40× and 100× |
| Magnification | 40×, 100×, 400× and 1000× |
| Nosepiece | Backward quadruple nosepiece |
| Stage | Double-layer mechanical stage, 132 × 142mm; movement range 75 × 40mm |
| Focusing | Coaxial coarse and fine adjustment; 0.004mm fine division; 24mm movement range |
| Condenser | Abbe NA 1.25 condenser with iris diaphragm and filter holder |
| Illumination | Adjustable LED illumination |
| C-mount Adapter | 0.5× C-mount adapter |
| Immersion Oil | 5ml included |
Digital Camera and Display
| Item | Specification |
|---|---|
| Screen | 10.1-inch IPS TFT-LCD touchscreen |
| Screen Resolution | 1920 × 1200 |
| Screen Colour | 16.7 million colours, 72% NTSC |
| Brightness | 300cd/m² |
| Contrast Ratio | 800:1 |
| Processor | ARM-A55 64-bit quad-core, 1.5GHz |
| Memory | 16GB running memory; 256GB built-in storage |
| Sensor | Sony IMX307 colour sensor, 1/2.8 inch |
| Camera Resolution | 1920 × 1080, 2MP |
| Pixel Size | 2.9μm × 2.9μm |
| HDMI Output | Mini HDMI 1.4, 1920 × 1080 at 60fps |
| Connectivity | 2.4GHz and 5GHz Wi-Fi, dual USB-C and SD-card support |
| Operating System | Android 12 |
| Still Images | 1920 × 1080 JPEG |
| Video Recording | 1920 × 1080 MP4 at 30fps |
| Camera Power | DC 12V/2A |
Standard Outfit
- Infinity optical microscope
- 10.1-inch Android touchscreen camera
- WF10×/18mm eyepieces
- 4×, 10×, 40× and 100× semi-plan objectives
- Backward quadruple nosepiece
- Double-layer mechanical stage
- Abbe NA 1.25 condenser
- Adjustable LED illumination
- 0.5× C-mount adapter
- 5ml immersion oil
Optional Accessories
- P16×/11mm eyepieces
- WF20×/9.5mm and WF25×/6.5mm eyepieces
- Infinite plan achromatic objectives
- Phase contrast kit
- Dry or oil darkfield attachment
- Polarisation attachment
- Rechargeable battery
- Alternative C-mount adapters
- Alternative reduction lenses
- Compatible TScopePadView software
3-Year Auckland Scientific Microscope Warranty
Supplied with a three-year Auckland Scientific microscope warranty. Warranty conditions apply and annual servicing is required. Full warranty terms are available on request.
Product images are for illustration purposes. Specifications may be updated without prior notice. Optional accessories are available separately.
