Auckland Scientific

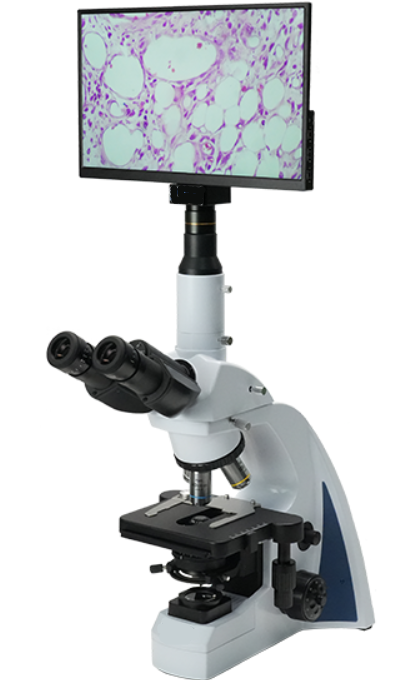

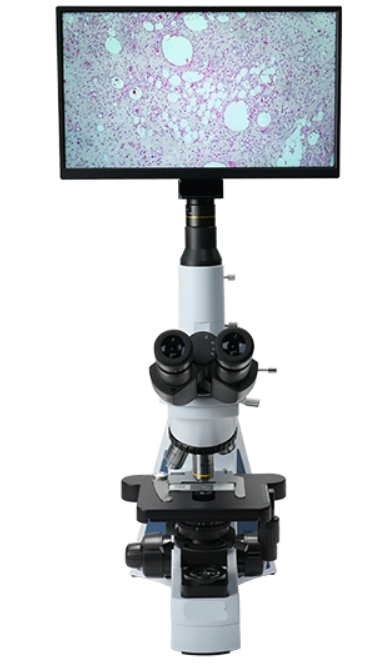

AUC5-241-LCD Digital Biological Microscope
Infinity-plan trinocular microscopy with a 13.3-inch Full HD display, 8MP imaging, 4K video and support for Apple, Android and computer-based workflows.
13.3-inchFull HD display
8MP3840 × 2160 still images
4KVideo capture at 30fps
iOS & AndroidWireless mobile viewing
Comfortable observation with integrated digital imaging
The AUC5-241-LCD combines a high-definition infinity optical system with a stable, ergonomic biological microscope frame. Wide-field 10×/22mm eyepieces and infinite plan achromatic objectives provide sharp, flat images for comfortable routine observation.
Its all-in-one digital system incorporates a 13.3-inch Full HD display and Sony IMX678 camera. Capture 8MP still images, record 4K video and perform measurements using mouse control. HDMI 2.0, USB 2.0 and Wi-Fi outputs support teaching, documentation and collaborative viewing. Dedicated applications support wireless viewing on compatible Apple iPhone, iPad and Android devices, while Windows, macOS and Linux computer platforms are also supported.
Click to view PDF
Key features
✓ Infinite optical system with plan achromatic objectives
✓ WF10×/22mm eyepieces with diopter adjustment
✓ 13.3-inch 1920 × 1080 LCD display
✓ Sony IMX678 1/1.8-inch colour CMOS sensor
✓ 8MP images and 4K video at 30fps
✓ HDMI 2.0, USB 2.0 and Wi-Fi output
✓ iOS and Android applications for smartphones and tablets
✓ Windows, macOS and Linux computer support
✓ Mouse-controlled capture, recording and measurement
✓ Trinocular head with 100:0 and 50:50 light distribution
✓ Sliding-in centreable NA 1.25 condenser
✓ Adjustable 3W LED illumination
✓ Coaxial coarse and fine focus with 0.002mm division
✓ Integrated carrying handle for easier handling
Apple, Android and computer compatibility
The AUC5-241-LCD can be used as a completely self-contained microscope through its integrated 13.3-inch display, so a separate phone, tablet or computer is not required.
Connection note: Smartphone and tablet connectivity uses Wi-Fi. A compatible 5GHz USB Wi-Fi adapter may be required depending on the supplied configuration. Direct USB connection to an iPhone or iPad is not specified.
Microscope specifications
| Optical system | Infinite optical system |
|---|---|
| Viewing head | Seidentopf trinocular, 30° inclined; interpupillary distance 48–75mm; 30mm eyepiece tubes; light distribution 100:0 and 50:50 |
| Eyepieces | WF10×/22mm wide-field eyepieces with diopter adjustment |
| Standard objectives | Infinite plan achromatic 4×, 10×, 40× spring and 100× oil spring |
| Magnification | 40×, 100×, 400× and 1000× with standard eyepieces |
| Nosepiece | Backward quadruple |
| Stage | Double-layer mechanical stage, 140 × 140mm; movement range 75 × 50mm |
| Condenser | Sliding-in centreable condenser, NA 1.25 |
| Focusing | Coaxial coarse and fine adjustment; fine division 0.002mm; coarse stroke 37.7mm per rotation; fine stroke 0.2mm per rotation; 20mm movement range |
| Illumination | 3W LED, brightness adjustable |
| Camera adapter | 0.5× C-mount |
Digital imaging specifications
| Display | 13.3-inch LCD, 1920 × 1080 |
|---|---|
| Sensor | Sony IMX678 colour CMOS, 1/1.8 inch (7.68 × 4.32mm) |
| Pixel size | 2.0 × 2.0µm |
| Still images | 8MP, 3840 × 2160 |
| Video | 30fps at 3840 × 2160 or 60fps at 1920 × 1080 |
| Outputs | HDMI 2.0, USB 2.0 and Wi-Fi |
| Mobile compatibility | iOS and Android applications for compatible smartphones and tablets via Wi-Fi |
| Computer compatibility | Windows, macOS and Linux |
| Exposure range | 0.04–1000ms |
Standard configuration
- 13.3-inch all-in-one camera and display
- WF10×/22mm eyepieces
- 4×, 10×, 40× and 100× oil plan objectives
- Quadruple nosepiece and mechanical stage
- Sliding-in NA 1.25 condenser
- 3W adjustable LED illumination
- 0.5× C-mount adapter
Available upgrades
- Additional plan and fluorescence objectives
- Quintuple nosepiece and rackless stage
- Dry or oil darkfield condensers
- Phase contrast kit
- Simple polarising set
- LED or mercury fluorescence attachments
- Nikon and Canon DSLR adapters
Applications
Suitable for biological, pathological, histological, bacteriological, immunological, pharmacological and genetic applications in hospitals, clinics, laboratories, medical academies, colleges, universities and research centres.
Auckland Scientific warranty
Covered by a 3-year Auckland Scientific microscope warranty. Conditions apply, including annual servicing. Full warranty terms are available on request.
Specifications are subject to change without notice. Optional accessories are supplied separately unless included in your quotation.
