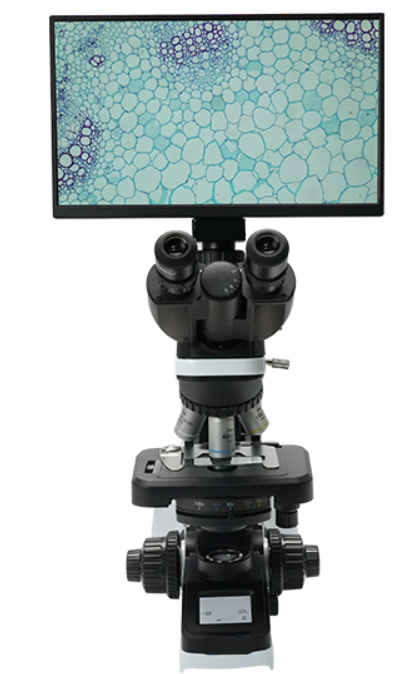

AUC5-246-LCD Intelligent Digital Biological Microscope
NIS infinity-plan optics, coded objective recognition and intelligent illumination with a 13.3-inch Full HD display, 8MP imaging and 4K video.
13.3-inchFull HD display
8MP & 4KDigital documentation
Intelligent LEDObjective-linked brightness
iOS & AndroidWireless mobile viewing
Intelligent microscopy for teaching and clinical laboratories
The AUC5-246-LCD is designed for teaching, clinical diagnosis and laboratory research. Its NIS infinity optical system and plan achromatic objectives provide clear, high-contrast images across the field of view. A compact ergonomic frame, rackless stage and low-position controls support comfortable daily operation.
The integrated camera and 13.3-inch Full HD display capture 8MP images and 4K video and provide mouse-controlled measurement. HDMI 2.0, USB 2.0 and Wi-Fi outputs support standalone operation, external displays, computers and compatible mobile devices.
Click to view PDF
Key features
✓ NIS infinite optical system
✓ WF10×/20mm wide-field eyepieces
✓ Infinite plan achromatic objectives
✓ 40×–1000× standard optical magnification
✓ Backward coded quadruple nosepiece
✓ Objective-linked illumination memory
✓ Adjustable LED colour temperature
✓ Front working-status LCD display
✓ Rackless mechanical stage
✓ Low-position coaxial focusing controls
✓ Focus-height limit and torque adjustment
✓ 20mm field of view
✓ Integrated carrying handle and cord storage
✓ External DC 5V power adapter
✓ 8MP images and 4K video
✓ HDMI 2.0, USB 2.0 and Wi-Fi output
✓ iOS and Android applications
✓ Windows, macOS and Linux support
Intelligent illumination management
The coded nosepiece identifies the objective in use. The microscope remembers the preferred brightness for each objective and automatically restores it when magnification changes, helping reduce visual fatigue and repeated adjustment.
Working-status display
The front LCD shows the active objective magnification, illumination level, colour temperature and operating status. Start, lock, ECO and sleep modes support consistent operation and energy management.
Apple, Android and computer compatibility
The microscope works independently through its integrated display. Compatible applications also support wireless viewing on Apple and Android mobile devices, with computer software environments for Windows, macOS and Linux.
Apple iPhone & iPadWireless viewing through the compatible iOS application.Android devicesWireless viewing through the compatible Android application.Connection note: Mobile-device connectivity uses Wi-Fi. A compatible 5GHz USB Wi-Fi adapter may be required depending on the supplied configuration. Direct USB connection to an iPhone or iPad is not specified.
Microscope specifications
| Optical system | NIS infinite optical system |
|---|---|
| Viewing head | Seidentopf trinocular, 30° inclined; interpupillary distance 47–78mm; diopter adjustment on both eyepiece tubes |
| Eyepieces | WF10×/20mm wide-field eyepieces |
| Standard objectives | Infinite plan achromatic 4× NA 0.10, WD 28mm; 10× NA 0.25, WD 10mm; 40× spring NA 0.65, WD 0.7mm; 100× oil spring NA 1.25, WD 0.18mm |
| Nosepiece | Backward coded quadruple nosepiece |
| Stage | Rackless double-layer mechanical stage, 180 × 130mm; movement range 74 × 30mm |
| Condenser | Abbe NA 1.25 condenser with iris diaphragm |
| Focusing | Coaxial coarse and fine adjustment; height-limit lock; coarse-tension adjustment; 37.7mm coarse stroke per rotation; 0.002mm fine division; 20mm movement range |
| Illumination | 3W LED; brightness and colour temperature adjustable; intelligent illumination management and front status display |
| Power | External DC 5V power adapter |
| Camera adapter | 0.5× C-mount |
| Optical protection | Anti-mould treatment on all optics |
Digital imaging specifications
| Display | 13.3-inch LCD, 1920 × 1080 |
|---|---|
| Sensor | Sony IMX678 colour CMOS, 1/1.8 inch (7.68 × 4.32mm); 2.0 × 2.0µm pixels |
| Images and video | 8MP images (3840 × 2160); 4K video at 30fps or Full HD at 60fps |
| Outputs | HDMI 2.0, USB 2.0 and Wi-Fi |
| Mobile compatibility | iOS and Android applications for compatible smartphones and tablets via Wi-Fi |
| Computer compatibility | Windows, macOS and Linux |
| Exposure range | 0.04–1000ms |
Standard configuration
- 13.3-inch all-in-one camera and display
- WF10×/20mm eyepieces
- 4×, 10×, 40× and 100× oil plan objectives
- Coded quadruple nosepiece
- Rackless mechanical stage
- NA 1.25 Abbe condenser
- Intelligent 3W LED illumination
- 0.5× C-mount adapter
- Dust cover and DC 5V adapter
Available options
- 2×, 20×, 50× oil and 60× objectives
- Green, blue, yellow and red filters
- 1× C-mount adapter
- Modular observation accessories available by quotation
Applications
Suitable for biological, pathological, histological, haematological, bacteriological, immunological, pharmacological and genetic applications in hospitals, clinics, laboratories, medical academies, colleges, universities, schools and research centres.
Auckland Scientific warranty
Covered by a 3-year Auckland Scientific microscope warranty. Conditions apply, including annual servicing. Full warranty terms are available on request.
Specifications are subject to change without notice. Optional accessories are supplied separately unless included in your quotation.
