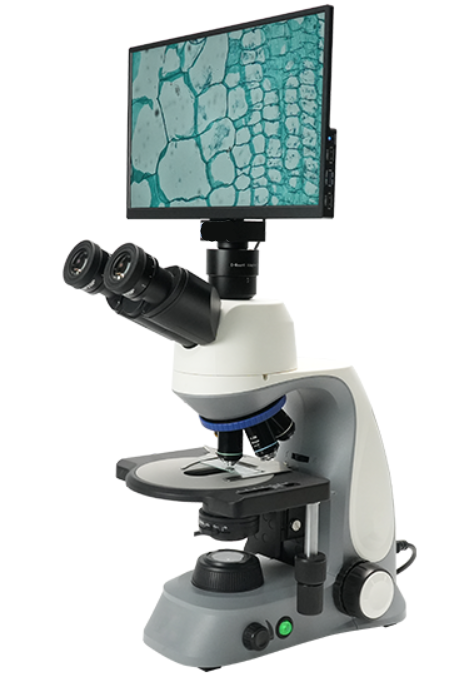

AUC5-247-LCD Digital & Optical WIFI Biological Microscope
£2,599.00
Sale price
£2,599.00
Regular price
Skip to product information
Apple iPhone & iPadWireless viewing through the compatible iOS application.
Android devicesWireless viewing through the compatible Android application.
ComputersSupports Windows, macOS and Linux.Windows • macOS • Linux
AUC5-247-LCD Digital & Optical WIFI Biological Microscope
£2,599.00
Sale price
£2,599.00
Regular price
Auckland Scientific
AUC5-247-LCD Digital Biological Microscope
Infinity colour-corrected optics, a 22mm field of view and a super-large ceramic rackless stage with 8MP imaging, 4K video and flexible power options.
13.3-inchFull HD display
8MP & 4KCapture and measurement
FN22Wide-field viewing
iOS & AndroidWireless mobile viewing
High-performance microscopy with flexible power
The AUC5-247-LCD is designed for university teaching, biomedical laboratories and medical testing. Its infinity colour-corrected optical system, plan achromatic objectives and 22mm wide-field eyepieces deliver high-resolution, high-contrast images across a broad observation area.
The integrated 13.3-inch display and Sony IMX678 camera capture 8MP images and 4K video and support measurement. A Type‑C power input permits operation from a suitable portable battery, while a standard USB output can charge a compatible phone or tablet.
Product brochureView or download the complete AUC5-247-LCD brochure.
View or Download Brochure (PDF)Key features
✓ Infinity colour-corrected optical system
✓ PL10×/22mm high-eyepoint plan eyepieces
✓ 22mm field of view
✓ Infinite plan achromatic objectives
✓ 360° rotatable gemel trinocular head
✓ Adjustable eyepoint height and 48–76mm IPD
✓ Quintuple nosepiece
✓ Super-large ceramic rackless stage
✓ Double slide clips for comparison work
✓ Köhler illumination condenser
✓ Type‑C portable-battery power input
✓ USB output for charging compatible devices
✓ ECO automatic standby mode
✓ Integrated handle and rear cable storage
✓ 8MP still images and 4K video
✓ HDMI 2.0, USB 2.0 and Wi-Fi output
✓ iOS and Android applications
✓ Windows, macOS and Linux support
Super-large ceramic stage
The 210 × 171mm double-layer stage has a rackless X-axis, hard ceramic-coated surface and two damped slide clips. It supports smooth movement, corrosion resistance and simultaneous placement of two slides for inspection or comparison.
Portable power and ECO mode
The Type‑C input enables operation from a suitable portable battery. After 30 minutes without operation, the built-in ECO system switches to standby; touching the illumination control wakes the light source.
Apple, Android and computer compatibility
The microscope operates independently through its integrated display. Compatible applications support wireless viewing on Apple and Android devices, with software environments for Windows, macOS and Linux computers.
Apple iPhone & iPadWireless viewing through the compatible iOS application.Android devicesWireless viewing through the compatible Android application.Connection note: Mobile connectivity uses Wi‑Fi. A compatible 5GHz USB Wi‑Fi adapter may be required depending on the supplied configuration. Direct USB connection to an iPhone or iPad is not specified.
Microscope specifications
| Optical system | Infinite colour-corrected optical system |
|---|---|
| Viewing head | 30° gemel trinocular tube, 360° rotatable; adjustable eyepoint height 375–428.5mm; interpupillary distance 48–76mm; 50:50 split |
| Eyepieces | PL10×/22mm high-eyepoint wide-field plan eyepieces with diopter adjustment |
| Standard objectives | Infinite plan achromatic 4× NA 0.10, WD 15mm; 10× NA 0.25, WD 10.8mm; 40× NA 0.65, WD 0.8mm; 100× oil NA 1.25, WD 0.21mm |
| Nosepiece | Quintuple nosepiece |
| Stage | Double-layer ceramic-coated mechanical stage, 210 × 171mm; rackless X-axis; 78 × 51mm movement; 0.1mm precision; two slide clips |
| Condenser | NA 1.25 Köhler illumination condenser with aperture diaphragm and slots for phase-contrast and darkfield accessories |
| Focusing | Low-position coaxial coarse and fine system; 27mm coarse range; 2µm fine accuracy; tension and upper-limit controls |
| Illumination | 3W LED, 4750–5500K, continuous intensity control; 100–240V external transformer; Type‑C portable-power input; ECO mode |
| Camera adapter | Adjustable 0.5× C-mount |
Digital imaging specifications
| Display | 13.3-inch LCD, 1920 × 1080 |
|---|---|
| Sensor | Sony IMX678 colour CMOS, 1/1.8 inch (7.68 × 4.32mm); 2.0 × 2.0µm pixels |
| Images and video | 8MP images (3840 × 2160); 4K video at 30fps or Full HD at 60fps |
| Outputs | HDMI 2.0, USB 2.0 and Wi‑Fi |
| Device compatibility | iOS and Android applications; Windows, macOS and Linux computer environments |
| Exposure range | 0.04–1000ms |
Standard configuration
- 13.3-inch all-in-one camera and display
- PL10×/22mm eyepieces
- 4×, 10×, 40× and 100× oil plan objectives
- Quintuple nosepiece
- Ceramic rackless stage
- NA 1.25 Köhler condenser
- 3W LED with ECO and Type‑C power input
- Adjustable 0.5× C-mount adapter
Available options
- 2×, 20× and 60× plan objectives
- Phase-contrast objectives and accessories
- Semi-APO objectives
- Darkfield insert plate
- Simple polarising set
- LED fluorescence modules, including TB options
- Additional adjustable C-mount adapters
Observation methods and applications
Standard brightfield observation can be expanded with optional phase contrast, darkfield, simple polarisation and LED fluorescence accessories. Brightfield supports routine stained specimens; phase contrast assists with transparent cells and bacteria; darkfield supports selected low-contrast specimens using 4×–40× objectives.
Suitable for university teaching, biomedical laboratories, routine experimental observation and medical testing.
Auckland Scientific warranty
Covered by a 3-year Auckland Scientific microscope warranty. Conditions apply, including annual servicing. Full warranty terms are available on request.
Specifications are subject to change without notice. Optional accessories are supplied separately unless included in your quotation.
