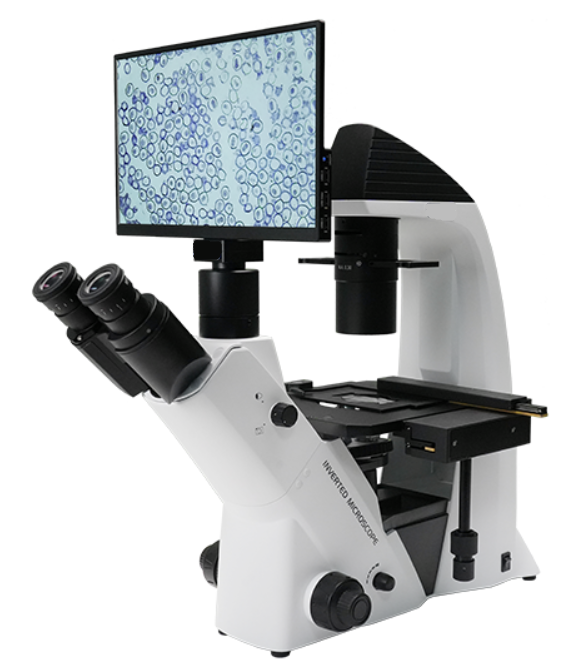

AUC5-293A-LCD Inverted Digital & Optical Biological Microscope
£3,495.00
Sale price
£3,495.00
Regular price
Skip to product information
Apple iPhone & iPadWireless viewing through the compatible iOS application.
Android devicesWireless viewing through the compatible Android application.
Computers Supports Windows, macOS and Linux platforms. Windows • macOS • Linux
AUC5-293A-LCD Inverted Digital & Optical Biological Microscope
£3,495.00
Sale price
£3,495.00
Regular price
Auckland Scientific
AUC5-293A-LCD Digital Biological Microscope
High-level inverted live-cell microscopy with a supplied mechanical stage, long-working-distance phase contrast and integrated 13.3-inch 4K imaging.
13.3-inchFull HD display
8MP3840 × 2160 still images
4KVideo capture at 30fps
iOS & AndroidWireless mobile viewing
Live-cell observation with a large mechanical stage
The AUC5-293A-LCD is designed for continuous observation of cultured living cells, microorganisms, bacteria and tissue cultivation. Its infinity optical system, PL10×/22mm eyepieces, 4× brightfield objective and 10×/20×/40× long-working-distance phase-contrast objectives provide clear imaging through culture vessels.
Its all-in-one digital system incorporates a 13.3-inch Full HD display and Sony IMX678 camera. Capture 8MP still images, record 4K video and perform measurements using mouse control. HDMI 2.0, USB 2.0 and Wi-Fi outputs support teaching, documentation and collaborative viewing. Dedicated applications support wireless viewing on compatible Apple iPhone, iPad and Android devices, while Windows, macOS and Linux computer platforms are also supported.
Product brochureView or download the complete AUC5-293A-LCD brochure.
View or Download Brochure (PDF)Key features
✓ Infinite optical system for inverted observation
✓ PL10×/22mm high-eyepoint plan eyepieces with diopter adjustment
✓ 13.3-inch 1920 × 1080 LCD display
✓ Sony IMX678 1/1.8-inch colour CMOS sensor
✓ 8MP images and 4K video at 30fps
✓ HDMI 2.0, USB 2.0 and Wi-Fi output
✓ iOS and Android applications for smartphones and tablets
✓ Windows, macOS and Linux computer support
✓ Mouse-controlled capture, recording and measurement
✓ 45° trinocular head, 48–76mm IPD
✓ LWD NA 0.3 condenser, 72mm WD fitted / 195mm without
✓ 12V/30W halogen Köhler illumination
✓ Coaxial focusing with 0.002mm fine division and 10mm range
✓ 210 × 241mm stage with supplied 128 × 80mm mechanical stage
✓ Quintuple nosepiece
✓ 4× brightfield and 10×/20×/40× phase-contrast objectives
Large stage with flexible X–Y control
The large stage and supplied X–Y mechanical stage support 96-well plates and culture vessels. The coaxial stage-control knob can be positioned on the left or right to suit the operator.
Apple, Android and computer compatibility
The AUC5-293A-LCD can be used as a completely self-contained microscope through its integrated 13.3-inch display, so a separate phone, tablet or computer is not required.
Connection note: Smartphone and tablet connectivity uses Wi-Fi. A compatible 5GHz USB Wi-Fi adapter may be required depending on the supplied configuration. Direct USB connection to an iPhone or iPad is not specified.
Microscope specifications
| Optical system | Infinite optical system |
|---|---|
| Viewing head | 45° inclined trinocular; 48–76mm IPD; 100:0 or 20:80 eyepiece/camera split; 30mm tubes |
| Eyepieces | PL10×/22mm wide-field plan eyepieces with adjustable diopter |
| Standard objectives | LWD plan achromatic 4× NA 0.11 WD 12.1mm; LWD plan phase contrast 10× NA 0.25 WD 10.3mm, 20× NA 0.45 WD 5.8mm and 40× NA 0.65 WD 5.1mm |
| Nosepiece | Quintuple |
| Condenser | LWD NA 0.3; 72mm working distance fitted or 195mm without condenser |
| Stage | 210 × 241mm stage, Φ110mm opening; attached mechanical stage for 96-well plates, 128 × 80mm travel; X–Y control switchable left/right; Φ54mm culture-dish holder supplied |
| Focusing | Coaxial coarse and fine adjustment; 0.002mm fine division; 10mm range |
| Illumination | 12V/30W halogen Köhler illumination; 100–240V input |
| Filters | Blue and green filters supplied |
| Camera adapter | Adjustable 0.5× C-mount |
Digital imaging specifications
| Display | 13.3-inch LCD, 1920 × 1080 |
|---|---|
| Sensor | Sony IMX678 colour CMOS, 1/1.8 inch (7.68 × 4.32mm) |
| Pixel size | 2.0 × 2.0µm |
| Still images | 8MP, 3840 × 2160 |
| Video | 30fps at 3840 × 2160 or 60fps at 1920 × 1080 |
| Outputs | HDMI 2.0, USB 2.0 and Wi-Fi |
| Mobile compatibility | iOS and Android applications for compatible smartphones and tablets via Wi-Fi |
| Computer compatibility | Windows, macOS and Linux |
| Exposure range | 0.04–1000ms |
Standard configuration
- 13.3-inch all-in-one camera and display
- PL10×/22mm eyepieces
- 4× brightfield and 10×, 20×, 40× phase-contrast objectives
- Quintuple nosepiece and NA 0.3 LWD condenser
- Large stage with attached 128 × 80mm mechanical stage
- Φ54mm culture-dish holder
- 30W halogen Köhler illumination and 0.5× C-mount
Available options
- Additional brightfield, phase-contrast and fluorescence objectives
- Additional culture-dish, universal, glass and blood-cell-counter holders
- Optional 5W LED transmitted illumination
- Two-, three- or four-channel LED fluorescence modules
- Mercury fluorescence modules
- Additional adjustable C-mount adapters
Applications
Suitable for continuous observation of cultured cells, tissues, microorganisms and bacteria in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology and botany.
Auckland Scientific warranty
Covered by a 3-year Auckland Scientific microscope warranty. Conditions apply, including annual servicing. Full warranty terms are available on request.
Specifications are subject to change without notice. Optional accessories are supplied separately unless included in your quotation.
